Load cells are crucial components in various industrial applications, transforming mechanical force into measurable electrical signals. They play a pivotal role in weighing systems, material testing, and structural monitoring. Among the different types of load cells, compression and tension load cells are the most commonly used. Understanding the differences between these two types is essential for selecting the appropriate load cell for specific applications.

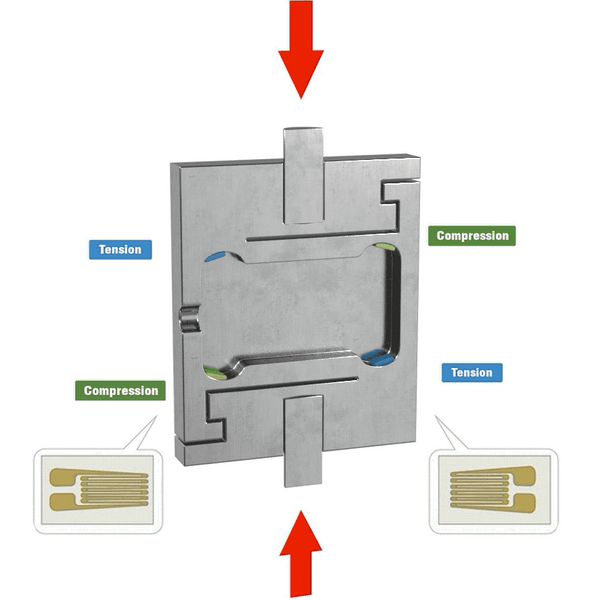

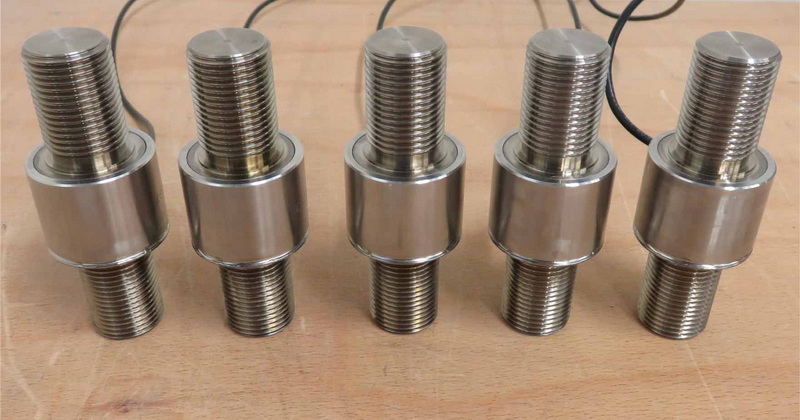

Load cells are essentially transducers that convert force into an electrical signal. This process involves the deformation of a metal body under load, with strain gauges bonded to it to measure this deformation. The change in resistance of these gauges correlates to the amount of force applied.
- Compression Load Cells: Designed to measure pushing forces, these load cells are unidirectional and typically installed beneath the load.
- Tension Load Cells: Primarily used for measuring pulling forces, tension load cells can often measure both tension and compression.
- Universal Load Cells: Capable of measuring both tension and compression forces, these offer versatility in applications where loads may shift.
Compression load cells operate by measuring forces that push down on them. When a weight is applied, the load cell deforms slightly, and this deformation is detected by strain gauges attached to its surface. The resulting change in voltage corresponds to the weight applied.
- Unidirectional Measurement: They measure only downward forces.
- Common Applications: Used in weighbridges, silo weighing, and material testing.
- Design Variations: Include canister, beam, and pancake styles, which vary based on application needs.

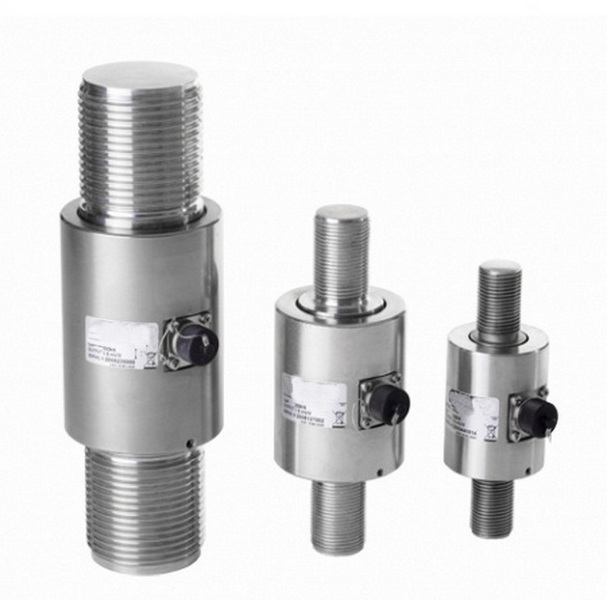

Tension load cells are designed to measure forces that pull on them. As a weight is applied in a pulling direction, the load cell stretches slightly. This stretching is measured by strain gauges that convert the deformation into an electrical signal.
- Bidirectional Measurement: Some models can measure both tension and compression.
- Common Applications: Used in crane scales, hoists, and tensile testing machines.
- Design Variations: Often S-shaped or designed with hooks for easy attachment to loads.
| Feature | Compression Load Cell | Tension Load Cell |
|---|---|---|
| Measurement Direction | Measures pushing (downward) forces | Measures pulling (upward) forces |
| Design Orientation | Installed beneath the load | Installed above or at the point of pull |
| Applications | Weighbridges, silo weighing | Crane scales, material testing |
| Bidirectionality | Unidirectional | Often bidirectional |
Both types of load cells have unique applications across various industries:
- Industrial Weighing: Compression load cells are widely used in scales for heavy materials.
- Material Testing: Tension load cells are essential for testing the tensile strength of materials like cables and ropes.
- Construction Monitoring: Both types can monitor structural loads to ensure safety standards are met.
Low profile load cells are particularly beneficial in applications where space is limited. Their compact design allows for easy installation without compromising measurement accuracy. These load cells can be either tension or compression types and offer several advantages:
- Space Efficiency: Ideal for tight installations where height restrictions exist.
- Increased Stability: Lower center of gravity reduces tipping risks during measurements.
- Versatile Applications: Suitable for both dynamic and static weighing scenarios.
Proper installation is crucial for accurate measurements from both compression and tension load cells:
- Ensure alignment with the loading axis to avoid measurement errors.
- Use appropriate mounting hardware designed for the specific type of load cell.
- Regular calibration is necessary to maintain accuracy over time.
In summary, understanding the differences between compression and tension load cells is vital for selecting the right type for your application. Compression load cells measure downward forces while tension load cells measure upward forces. Each type has distinct characteristics, advantages, and applications across various industries. Low profile load cells provide additional benefits in space-constrained environments without sacrificing performance.
A low profile load cell is a compact sensor designed to measure force while occupying minimal vertical space. They are ideal for applications with height restrictions.
Yes, universal or dual-range load cells can be calibrated to accurately measure both tension and compression forces effectively.
Calibration frequency depends on usage but generally should be performed at least once a year or whenever discrepancies in measurements occur.
Load cells are typically made from durable materials like stainless steel or aluminum to withstand harsh environments while ensuring accuracy.
Factors include temperature fluctuations, humidity levels, mounting angle, side loads, and regular wear from usage over time.
