When searching for a tension load cell for sale, there are several essential factors to consider to ensure that you select the right device for your specific application. Tension load cells are critical components in various industries, including manufacturing, automotive, aerospace, and construction. This article will guide you through the key aspects you should evaluate when purchasing a tension load cell.
Definition and Functionality

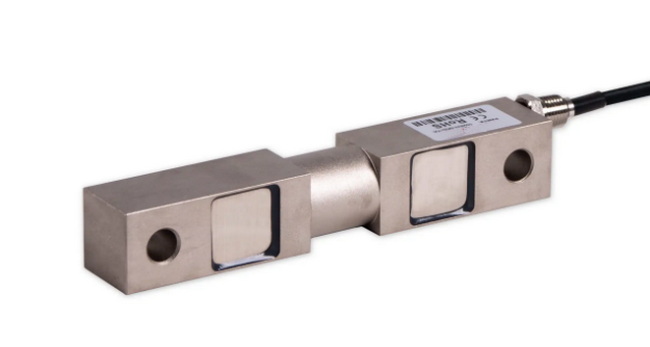

A tension load cell is a type of transducer specifically designed to measure tensile forces. It converts the mechanical force exerted on it into an electrical signal, allowing for accurate measurement of pulling or tension forces. These load cells are widely used in applications such as crane and hoist weighing, tensile strength testing, and monitoring cable forces.
1. Load Capacity
- Determine the maximum load that the tension load cell will need to measure. Load capacity varies widely among different models, so it's crucial to choose one that can handle your specific application requirements. For instance, if you're using the load cell in a crane operation, ensure it can handle the maximum weight of the loads being lifted.
2. Accuracy and Precision
- Look for load cells with high accuracy ratings. The precision of a tension load cell is vital in applications where even slight variations in force measurement can lead to significant consequences. Accuracy is typically expressed as a percentage of full-scale output (FSO) and is crucial in industries where safety is paramount.
3. Material and Construction
- The material used in constructing the load cell affects its durability and performance. Common materials include stainless steel and aluminum, which offer different benefits in terms of weight, strength, and resistance to environmental factors. Stainless steel is often preferred for its corrosion resistance and longevity, especially in harsh environments.
4. Environmental Conditions
- Consider the operating environment of the load cell. If it will be exposed to harsh conditions such as moisture, dust, or extreme temperatures, look for models with appropriate IP ratings or protective coatings. For example, an IP67 rating indicates that the device is dust-tight and can withstand immersion in water up to 1 meter.
5. Calibration
- Ensure that the tension load cell can be easily calibrated. Calibration is essential for maintaining accuracy over time and may be required periodically depending on usage conditions. Some manufacturers provide calibration services or offer calibration kits that allow users to perform their own calibrations.
6. Signal Output
- Different tension load cells offer various signal outputs (e.g., analog, digital). Choose one that is compatible with your existing measurement systems or data acquisition equipment. Common output types include 4-20 mA analog signals and digital outputs like RS-232 or RS-485.
7. Installation Requirements
- Assess the installation process of the load cell. Some models may require specific mounting configurations or additional hardware to function correctly. Ensure that you have all necessary accessories such as mounting brackets or cables before making a purchase.
8. Cost Considerations
- While it may be tempting to choose the cheapest option available, consider the long-term value of investing in a quality tension load cell that meets all your requirements. Remember that lower-priced models may compromise on accuracy or durability, leading to higher costs down the line due to replacements or repairs.
Tension load cells are utilized across various industries for multiple applications:
- Crane and Hoist Weighing: Ensuring safe lifting operations by monitoring loads.
- Material Testing: Measuring tensile strength and elasticity of materials.
- Construction Monitoring: Assessing structural integrity by measuring forces in cables and supports.
- Cable Force Measurement: Monitoring forces in mooring lines and cables used in marine applications.
- Weighing Systems: Used in industrial scales for accurate weight measurement.

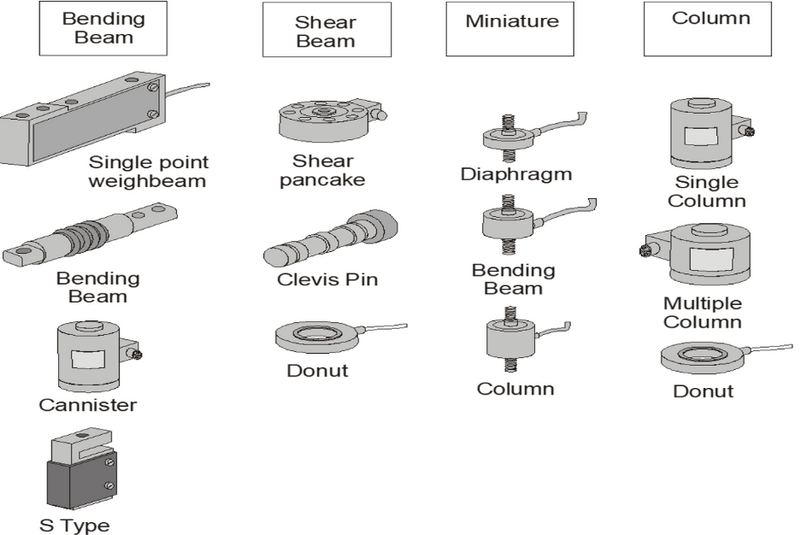

Understanding the different types of tension load cells available can also aid in making an informed decision:
1. Single Point Load Cells
- Ideal for small-scale applications where space is limited. They provide accurate measurements but are typically used for lower capacities.
2. S-type Load Cells
- Named for their shape, these are versatile and can be used in both tension and compression applications. They are suitable for various industrial uses due to their robust design.
3. Canister Load Cells
- Designed for high-capacity applications, these load cells are often used in heavy-duty environments such as mining or large-scale construction projects.
4. Tension Link Load Cells
- These are specifically designed for measuring tensile loads in lifting applications such as cranes or hoists.
5. Wireless Load Cells
- Offering convenience by eliminating cables, these load cells transmit data wirelessly to a receiver unit, making them ideal for remote monitoring applications.

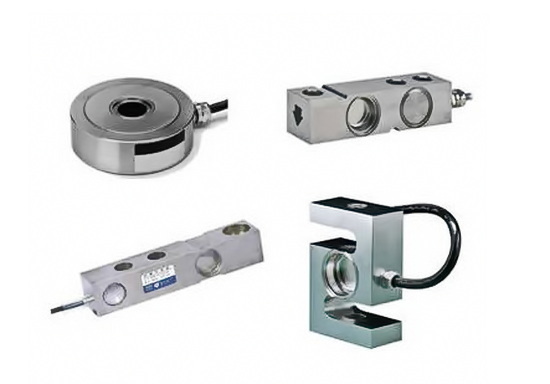

When looking for tension load cells for sale, consider reputable suppliers that specialize in industrial equipment:
- eBay: A popular platform where you can find new and used tension load cells from various sellers.
- Manufacturer Websites: Direct purchases from manufacturers often come with warranties and customer support.
- Industrial Supply Stores: Local or online stores that specialize in industrial equipment may have a selection of tension load cells available.
- Seller Reputation: Check seller ratings and reviews on platforms like eBay to ensure reliability.
- Return Policy: Understand the return policy in case the product does not meet your expectations.
- Warranty Information: Look for products that come with warranties for added peace of mind.
Proper installation of your tension load cell is crucial for accurate measurements:
1. Follow Manufacturer Guidelines: Always refer to installation instructions provided by the manufacturer.
2. Ensure Proper Alignment: Misalignment can lead to measurement errors; ensure that the load cell is aligned correctly with the force being measured.
3. Use Appropriate Mounting Hardware: Utilize recommended mounting brackets or fixtures to secure the load cell properly.
4. Check Calibration After Installation: Once installed, verify calibration before putting the system into operation.
To ensure longevity and consistent performance from your tension load cell:
1. Regular Inspections: Periodically check for signs of wear or damage.
2. Keep It Clean: Dust and debris can affect performance; clean the device regularly according to manufacturer recommendations.
3. Recalibrate as Needed: Follow a recalibration schedule based on usage frequency and environmental conditions.
Selecting the right tension load cell involves careful consideration of several factors including load capacity, accuracy, material construction, environmental conditions, calibration needs, signal output compatibility, installation requirements, and cost. By taking these aspects into account and sourcing from reputable suppliers like eBay or direct manufacturers, you can ensure that you find a suitable tension load cell for your application.
Tension load cells play a vital role in ensuring safety and efficiency across numerous industries by providing accurate force measurements essential for operational success.
A tension load cell is a device used to measure tensile forces by converting mechanical strain into an electrical signal.
Determine the maximum expected tensile force during operation; choose a load cell with a capacity slightly higher than this value for safety.
Yes, but ensure it has an appropriate IP rating or protective features against environmental factors like moisture or dust.
Calibration frequency depends on usage; regular checks are recommended to maintain accuracy over time.
You can find them on platforms like eBay, manufacturer websites, or local industrial supply stores.
