Tension load cells are essential components in industries ranging from manufacturing to aerospace, enabling precise measurement of tensile forces. For engineers, technical writers, and educators, finding high-quality tension load cell pictures is critical for documentation, training, and marketing. This article explores reliable sources for visuals, video resources, and best practices for incorporating these assets into your projects.

Understanding Tension Load Cells

Before diving into visual resources, let's briefly review what tension load cells are. These sensors measure tensile forces (pulling forces) using strain gauges bonded to a metal body. When force is applied, the strain gauges deform, altering electrical resistance and producing a measurable signal. Common types include S-type, tension link, and rod-end load cells, each suited for specific applications like crane weighing or material testing.

Types of Tension Load Cells

- S-Type Load Cells: These are versatile and widely used in various applications due to their compact design and high accuracy. They can be used in both tension and compression measurements.

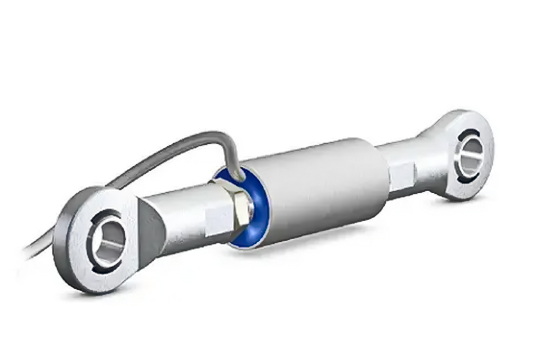

- Tension Link Load Cells: Specifically designed for hanging applications, these load cells are often used in cranes and hoisting systems.

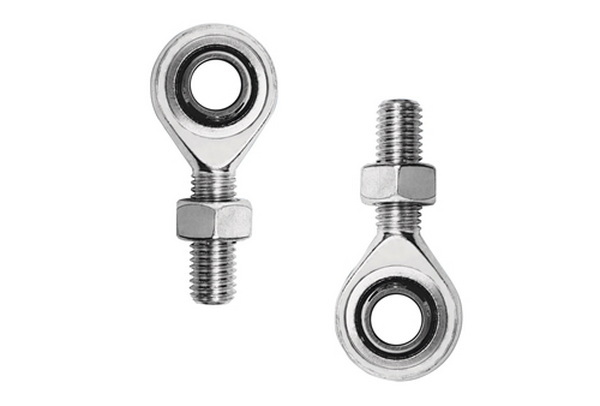

- Rod-End Load Cells: Featuring a design that allows them to be mounted directly onto structures or machinery, they are ideal for applications requiring direct force measurement.

Where to Find High-Quality Tension Load Cell Pictures

1. Manufacturer Websites

Industrial manufacturers like Flintec, Interface Force, and FUTEK provide detailed product galleries with high-resolution images. These photos often showcase load cell designs, mounting configurations, and real-world applications.

- Flintec: Offers a dedicated "Products" section with tension load cell images that demonstrate their various models and specifications.

- Interface Force: Features technical diagrams and application-specific visuals that help users understand how to integrate load cells into their systems.

- Transducer Techniques: Includes close-ups of tension link load cells in testing environments, providing insights into their operational capabilities.

2. Stock Photo Platforms

Websites like Adobe Stock and Shutterstock host professional-grade images of industrial equipment. Search for keywords like "tension load cell," "strain gauge sensor," or "force measurement" to find relevant visuals.

3. Technical Documentation & White Papers

Companies often include diagrams and photos in product datasheets and white papers. For example:

- Minebea Intec's webinar materials feature load cell cross-sections that illustrate their internal workings.

- PCB Piezotronics' handbook includes strain gauge schematics that provide a deeper understanding of how these sensors operate under different conditions.

4. YouTube Tutorials & Demos

Video platforms like YouTube provide dynamic visuals of tension load cells in action. Channels like RealPars and Interface, Inc. offer tutorials with annotated diagrams and real-time testing footage.

5. Industry Forums & Communities

Websites like Engineering.com or ResearchGate host user-uploaded images from engineers and researchers. These platforms often feature rare or custom load cell designs not found elsewhere. Engaging with community members can also lead to discovering unique applications or modifications that enhance the functionality of standard load cells.

Video Resources for Tension Load Cell Applications

Embedding videos enhances technical content by demonstrating installation, calibration, and use cases:

1. Installation Guides:

- "How to Set Up a Tension Load Cell" by Morehouse Instrument Company provides step-by-step instructions on proper installation techniques.

- "Universal Miniature Load Cell" by ATO Automation showcases the versatility of miniature load cells in various settings.

2. Technical Explanations:

- "Strain Gauge Load Cell Working Principle" by VPG Transducers explains the fundamental principles behind strain gauge technology.

- "Tension vs. Compression Load Cells" by Omega Engineering discusses the differences between these two types of sensors and their respective applications.

3. Real-Life Applications:

- Videos demonstrating real-life applications of tension load cells in industries such as construction or automotive testing can provide valuable context for understanding their importance.

- Case studies presented in video format can illustrate successful implementations of tension load cells in challenging environments.

Best Practices for Using Tension Load Cell Visuals

1. Cite Sources: Always credit manufacturers or stock platforms when using their images to maintain ethical standards in content creation.

2. Optimize Resolution: Use images with 300+ DPI for print materials and HD videos for web content to ensure clarity and professionalism.

3. Annotate Diagrams: Label key components (strain gauges, mounting holes) to improve clarity when presenting complex information.

4. Maintain Consistency: When using multiple images or videos, ensure they follow a consistent style or theme to create a cohesive presentation.

5. Use High-Quality Graphics Software: Utilize graphic design software like Adobe Illustrator or Canva to enhance images or create custom diagrams that effectively communicate your message.

Conclusion

High-quality tension load cell pictures and videos are invaluable for technical communication across various fields including engineering, education, and marketing. Manufacturer websites, stock platforms, video tutorials, technical documents, and community forums provide diverse resources tailored to industrial needs. By leveraging these assets effectively, you can create compelling content that enhances understanding of force measurement technologies while ensuring clarity and professionalism in your presentations.

Incorporating visuals not only aids comprehension but also engages your audience more effectively than text alone could achieve. As technology continues to evolve within the industry, staying updated on new resources will further enrich your content creation efforts.

FAQ: Frequently Asked Questions

1. Where can I find free tension load cell pictures?

Free images are available on platforms like Wikimedia Commons and Pexels, though quality may vary. Always verify licensing terms before use.

2. How do I ensure image accuracy for technical documentation?

Source images directly from manufacturer websites (e.g., Flintec, Minebea Intec) or technical white papers that provide verified information about the products.

3. Can I use YouTube videos in commercial presentations?

Embedding videos is generally permitted under fair use; however, downloading and redistributing content requires permission from the creator.

4. Are there 3D models of tension load cells available?

Yes! Platforms like GrabCAD and TraceParts host downloadable CAD models suitable for engineering projects requiring detailed design specifications.

5. What's the best way to attribute tension load cell images?

Use a caption format such as *"Image: [Manufacturer/Photographer Name][Source Link]."* This ensures proper credit is given while maintaining transparency regarding image sources.
