Tension load cells are essential devices used in various industrial applications to measure tensile forces accurately. In the UK, the market offers a wide range of tension load cells, each designed for specific applications and requirements. This article explores the best options available, their features, applications, and considerations when selecting a tension load cell for industrial use.

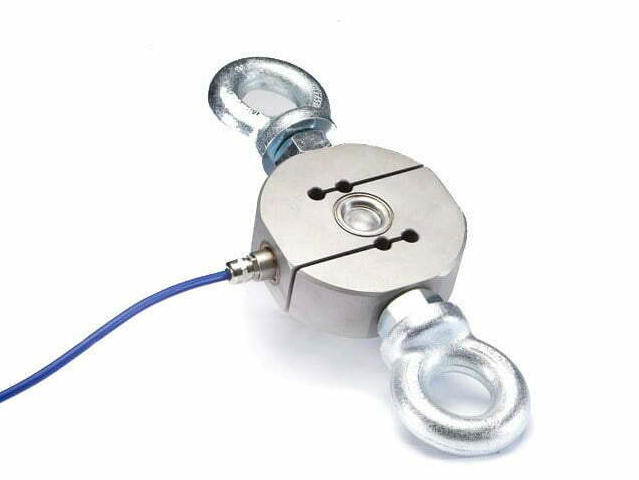

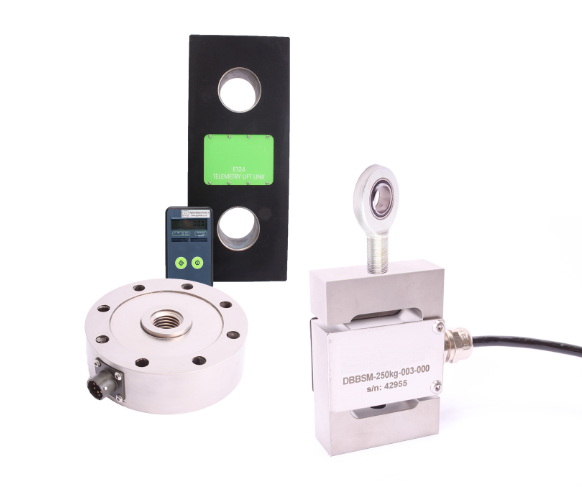

A tension load cell is a type of transducer that measures tensile or pulling forces. It converts mechanical force into an electrical signal, allowing for precise measurements. The most common types include:
- S-Beam Load Cells: Ideal for general-purpose applications. They are versatile and can be used in both tension and compression scenarios.
- Z-Beam Load Cells: Used in applications requiring high accuracy. They are typically more sensitive and provide precise readings.
- Column Load Cells: Suitable for heavy-duty applications. These load cells can handle large forces and are often used in industrial scales.
When selecting a tension load cell, consider the following features:
- Capacity: Load cells come in various capacities, from small units measuring a few kilograms to heavy-duty models capable of measuring thousands of tonnes. It's crucial to choose a load cell that exceeds your maximum expected load to ensure safety and accuracy.
- Material: Common materials include aluminum for lightweight applications and stainless steel for durability in harsh environments. Stainless steel is particularly advantageous in outdoor or corrosive environments due to its resistance to rust and wear.
- Accuracy: Look for load cells with low non-linearity and high repeatability specifications. The accuracy of a load cell is typically expressed as a percentage of full scale, with many high-quality models offering accuracies of ±0.1% or better.
- Environmental Protection: Many models offer IP ratings for protection against dust and water. For instance, an IP67 rating indicates that the load cell is dust-tight and can withstand immersion in water up to 1 meter deep.
Tension load cells are used across various industries, including:
- Manufacturing: Monitoring forces in production machinery is crucial to ensure operational efficiency and safety. Tension load cells can be integrated into automated systems to provide real-time feedback on machine performance.
- Construction: Measuring tensile forces in structures like bridges is vital for ensuring structural integrity. Engineers use tension load cells during construction to monitor stress levels and make necessary adjustments.
- Aerospace: Testing aircraft components under stress is critical for safety and performance. Tension load cells are employed in testing facilities to simulate operational conditions and assess component durability.
- Research and Development: Conducting materials testing and analysis requires precise measurements of tensile strength. Researchers utilize tension load cells to gather data on material properties, aiding in the development of new materials.
Several reputable brands offer high-quality tension load cells suitable for industrial use:
1. Force Logic UK
- Offers a wide range of load cells with capacities from 1kg to over 1000 tonnes.
- Products are ISO 9001:2015 accredited, ensuring quality and reliability.
- Their customer support team provides expert advice on selecting the right model for specific applications.
2. BES Group
- Provides S or Z beam tension load cells designed for high accuracy.
- Their products are robust and suitable for hostile environments.
- BES Group also offers calibration services, ensuring that your equipment remains accurate over time.
3. Applied Measurements
- Specializes in tension load cells with custom ranges and instrumentation options.
- Offers comprehensive solutions including installation accessories.
- Their products come with detailed technical documentation, making installation straightforward.
4. GNW Instrumentation
- Offers Laumas tension/compression load cells known for their durability and accuracy.
- Provides optional calibration certificates to ensure measurement reliability.
- GNW also focuses on customer education, providing guides on best practices for using their products.
When choosing a tension load cell, consider the following steps:
1. Define Your Requirements:
- Determine the maximum load you need to measure and the environment where the load cell will be used. Consider factors such as temperature extremes, humidity levels, and exposure to chemicals or dust.
2. Research Available Options:
- Compare different brands and models based on capacity, material, accuracy, and environmental protection. Utilize online resources, customer reviews, and product specifications to inform your decision-making process.
3. Consult with Experts:
- Reach out to manufacturers or suppliers to discuss your specific needs and get recommendations. Many companies offer consultation services where experts can help you identify the best solution based on your application requirements.
4. Consider Installation Needs:
- Ensure you have all necessary accessories for installation, such as mounting bases or fixtures. Proper installation is crucial for achieving accurate measurements; thus, consider hiring professionals if necessary.
5. Evaluate Cost vs. Performance:
- While it may be tempting to choose the least expensive option, consider the long-term value of investing in a high-quality tension load cell that meets your needs effectively. Cheaper models may not perform reliably over time or could lead to inaccurate measurements that compromise safety.
To ensure longevity and reliability from your tension load cell, follow these maintenance tips:
- Regular Calibration: Schedule regular calibration checks according to manufacturer recommendations or industry standards to ensure ongoing accuracy.
- Visual Inspections: Periodically inspect the load cell for signs of wear or damage such as corrosion or physical deformation.
- Proper Handling: Avoid dropping or mishandling the load cell during installation or maintenance as this can lead to internal damage that affects performance.
- Environmental Controls: If possible, place the tension load cell in controlled environments where temperature fluctuations and exposure to contaminants are minimized.
In an aerospace testing facility in the UK, engineers utilized high-capacity tension load cells from Applied Measurements to test aircraft wing components under simulated flight conditions. The precision offered by these sensors allowed them to gather critical data on stress points during various maneuvers, leading to design improvements that enhanced safety margins by 15%.
A major construction project involving a new bridge utilized S-beam tension load cells from Force Logic UK to monitor cable tensions throughout construction phases. By continuously tracking tensile forces during construction, project managers were able to make real-time adjustments that ensured structural integrity was maintained throughout the build process.
Choosing the right tension load cell is crucial for ensuring accurate measurements in various industrial applications across the UK. With several high-quality options available from reputable brands like Force Logic UK, BES Group, Applied Measurements, and GNW Instrumentation, businesses can find solutions tailored to their needs. By considering factors such as capacity, material, accuracy, environmental protection, installation requirements, and maintenance practices, you can make an informed decision that enhances your operational efficiency while ensuring safety standards are met.
A tension load cell is a device that measures tensile forces by converting mechanical stress into an electrical signal.
Consider factors such as maximum load capacity, material type, accuracy specifications, environmental protection ratings, and installation requirements when selecting a model.
They are widely used in manufacturing processes, construction projects monitoring structural integrity, aerospace testing components under stress conditions, and research settings analyzing material properties.
Yes! Common types include S-beam (for versatility), Z-beam (for high accuracy), and column (for heavy-duty applications).
Many manufacturers offer optional calibration certificates upon request; this ensures measurement accuracy over time by verifying performance against established standards.
