Maintaining optimal machinery performance is crucial for operational efficiency, minimizing downtime, and ensuring the longevity of equipment. Among the various components and systems that contribute to this, the chain tension sensor stands out as a vital element. This article delves into the significance of chain tension sensors in modern machinery, exploring their functions, benefits, and applications across different industries.
A chain tension sensor is a device designed to measure the tension or force exerted on a chain within a mechanical system[1][4]. This measurement is critical because the tension in a chain directly affects the performance and reliability of the machinery it drives. Incorrect tension can lead to a range of problems, including premature wear, increased energy consumption, and even catastrophic failure[10].
Chain tension refers to the pulling force exerted along the length of a chain. In mechanical systems, chains are used to transmit power from one point to another, such as in conveyor systems, automotive timing chains, and various industrial machines[1]. The tension in these chains must be carefully controlled to ensure efficient and safe operation.
A typical chain tension sensor comprises several key components[1]:
1. Sensing Element: This is the core of the sensor, responsible for detecting the force applied to the chain. Common types include load cells, strain gauges, and piezoelectric sensors[4].
2. Signal Processing Unit: This unit converts the raw signal from the sensing element into a readable output, often an electrical signal proportional to the tension[4].
3. Housing and Mounting: The housing protects the internal components from environmental factors, while the mounting mechanism ensures the sensor is correctly positioned and aligned with the chain[5].
4. Output Interface: This allows the sensor to communicate with a control system or display unit, providing real-time tension data[9].
The implementation of chain tension sensors is essential for several reasons, each contributing to the overall performance and reliability of machinery.
Tension sensors play a vital role in optimizing manufacturing processes by providing precise tension monitoring[4]. This is particularly important in industries such as textiles, paper, and metal production, where consistent tension is necessary for maintaining product quality and minimizing waste[4][10].
By continuously monitoring chain tension, these sensors help prevent equipment downtime and reduce material waste. They enable manufacturers to identify and address potential issues before they lead to significant problems, ensuring smooth and efficient production[4][10].
Consistent and accurate tension control directly impacts the quality of the final product. Tension sensors ensure that materials are processed uniformly, reducing defects and enhancing overall product quality[4][10].
In material handling applications, such as conveyor systems, chain tension sensors are crucial for maintaining optimal performance. They help prevent chain slippage, reduce wear on components, and ensure the smooth transport of materials[1].
Proper chain tension is also critical for safety. Over-tensioned chains can break, causing accidents and injuries. By monitoring tension levels, sensors help prevent such incidents, ensuring a safer working environment[1].
Chain tension sensors operate on the principle of converting mechanical force into an electrical signal that can be measured and interpreted. The specific mechanism varies depending on the type of sensor used[4].
Load cells are among the most common types of tension sensors. They work by measuring the deformation of a material under load. When a force is applied to the chain, it causes a corresponding deformation in the load cell, which is then converted into an electrical signal[4].
Strain gauges measure the strain (change in length) of a material when it is subjected to stress. These gauges are typically bonded to the surface of a structural member within the sensor. As the chain tension changes, the strain gauge deforms, altering its electrical resistance, which is then measured[4].
Piezoelectric sensors generate an electrical charge in response to applied mechanical stress. These sensors are highly sensitive and can detect small changes in tension, making them suitable for applications requiring high precision[4].

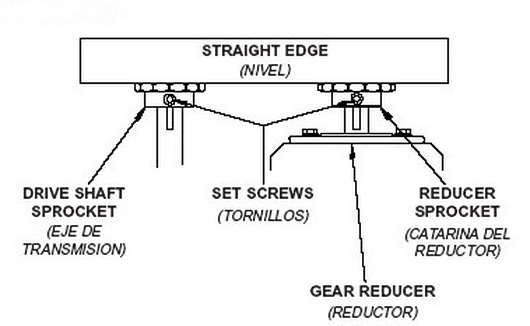

Proper installation and calibration are essential for accurate tension measurement. The sensor must be correctly aligned with the chain and securely mounted to ensure that it accurately reflects the tension in the system. Calibration involves adjusting the sensor's output to match known tension values, ensuring that the readings are accurate and reliable[1].
Several types of chain tension sensors are available, each designed for specific applications and environments.

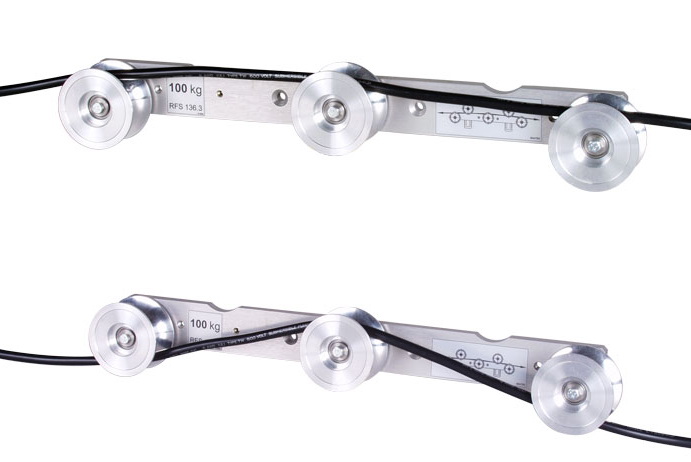

Inline tension sensors are installed directly in the path of the chain, measuring the tension as it passes through the sensor. These sensors are ideal for continuous monitoring and provide real-time data on chain tension[1].
Reaction-type tension sensors measure the force exerted by the chain on a fixed point. These sensors are often used in applications where it is not possible to install an inline sensor[1].
Wireless tension sensors transmit data wirelessly to a central monitoring system. These sensors are particularly useful in remote or hard-to-reach locations, eliminating the need for physical wiring[1].
Digital tension sensors use digital signal processing to provide highly accurate and stable tension readings. They often include advanced features such as data logging, alarm settings, and remote monitoring capabilities[4].
Chain tension sensors are used in a wide range of applications across various industries[4][10].
In mining operations, chain conveyors are used to transport minerals and other materials. Chain tension sensors ensure that these conveyors operate efficiently and safely, preventing chain breaks and minimizing downtime[1].

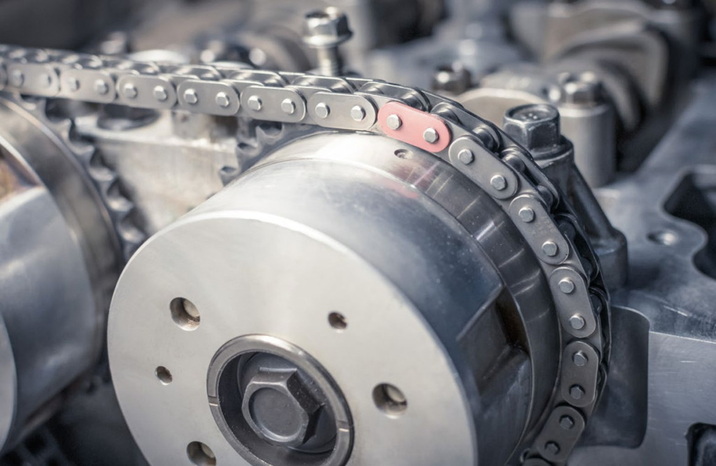

Timing chains in automotive engines require precise tension to ensure proper valve timing and engine performance. Tension sensors are used in both manufacturing and testing to optimize chain tension[11].
In manufacturing plants, chain tension sensors are used in conveyor systems, assembly lines, and other automated processes. They help maintain consistent tension, preventing equipment failures and ensuring smooth operation[10].
Robotic systems often use chains to transmit power and motion. Tension sensors ensure that these chains operate within specified limits, preventing damage to the robot and ensuring precise movements[5].
Elevators rely on chains to lift and lower the car. Tension sensors monitor the tension in these chains, ensuring safe and reliable operation[2].
Winches used in construction, marine, and other industries require precise tension control. Tension sensors provide critical information for safe winch operation[6].
The benefits of using chain tension sensors are numerous and contribute significantly to the overall efficiency and reliability of machinery.
Chain tension sensors enable preventive maintenance by providing real-time data on chain tension. This allows manufacturers to identify and address potential issues before they lead to significant problems, reducing downtime and maintenance costs[10].
By maintaining optimal tension levels, chain tension sensors ensure that machinery operates at its peak performance. This results in increased efficiency, reduced energy consumption, and improved product quality[10].
Consistent tension control reduces material waste by preventing defects and ensuring uniform processing. This is particularly important in industries such as textiles and paper manufacturing, where waste can be costly[10].
Proper tension control reduces wear and tear on chains and other components, extending the life of the equipment. This results in lower replacement costs and increased return on investment[10].
Chain tension sensors provide valuable data that can be used to make informed decisions about maintenance, process optimization, and equipment upgrades. This data-driven approach leads to continuous improvement and increased efficiency[10].
Modern chain tension sensors incorporate advanced features and technologies to enhance their performance and usability[12].
Digital signal processing (DSP) improves the accuracy and stability of tension readings by filtering out noise and compensating for environmental factors[4].
Wireless communication enables remote monitoring of chain tension, allowing operators to monitor equipment from a central location[1].
Data logging allows for the collection and analysis of tension data over time, providing valuable insights into equipment performance and maintenance needs[10].
Alarm systems alert operators when tension levels exceed specified limits, allowing for immediate corrective action[10].
Integration with the Internet of Things (IoT) and Industry 4.0 technologies enables seamless data exchange and remote control of chain tension sensors, facilitating predictive maintenance and automated process optimization[12].
Several case studies and real-world examples illustrate the benefits of using chain tension sensors[10].
A mining operation implemented chain tension sensors on its conveyor systems, resulting in a 30% reduction in downtime and a 20% increase in material throughput[1].
An automotive manufacturer used chain tension sensors to optimize the tension in timing chains, resulting in improved engine performance and reduced warranty claims[11].
A manufacturing plant implemented chain tension sensors on its assembly lines, resulting in a 15% reduction in material waste and a 10% increase in production efficiency[10].
Despite their numerous benefits, there are several challenges and considerations associated with the use of chain tension sensors.
The initial cost of implementing chain tension sensors can be significant, particularly for large-scale operations. However, the long-term benefits in terms of reduced downtime and increased efficiency often outweigh the initial investment[10].
Proper installation is critical for accurate tension measurement. Incorrect installation can lead to inaccurate readings and compromise the performance of the sensor[1].
Regular calibration is necessary to ensure that the sensor remains accurate over time. Calibration procedures should be followed according to the manufacturer's recommendations[1].
Environmental factors such as temperature, humidity, and vibration can affect the performance of chain tension sensors. Sensors should be selected and installed to minimize the impact of these factors[5].
Chain tension sensors require regular maintenance to ensure their continued performance. This may include cleaning, inspection, and replacement of worn components[10].
The field of chain tension sensor technology is constantly evolving, with new innovations and advancements emerging regularly[8].
Smart sensors incorporate advanced signal processing and communication capabilities, enabling them to provide more accurate and reliable tension readings. They can also be integrated with IoT and Industry 4.0 technologies for seamless data exchange and remote control[12].
Wireless technology is becoming increasingly prevalent in chain tension sensors, allowing for remote monitoring and control of equipment. This is particularly useful in remote or hard-to-reach locations[1].
Predictive maintenance techniques use data from chain tension sensors to predict when equipment is likely to fail, allowing for proactive maintenance and preventing downtime[10].
Miniaturization of chain tension sensors is enabling their use in a wider range of applications, including robotics and other small-scale systems[5].
Modern tension sensors are capable of measuring tension in multiple axes simultaneously, providing comprehensive data for complex applications[12].
Chain tension sensors are essential for optimizing machinery performance, reducing downtime, and ensuring the longevity of equipment[4][10]. By providing real-time data on chain tension, these sensors enable preventive maintenance, optimized machine performance, reduced material waste, and extended equipment life[10]. As technology continues to advance, chain tension sensors will play an increasingly important role in modern manufacturing and industrial operations[8].
A chain tension sensor is a device used to measure the tension or force exerted on a chain within a mechanical system[1][4]. This measurement is critical for ensuring the efficient and safe operation of machinery[10].
Chain tension sensors convert mechanical force into an electrical signal that can be measured and interpreted. Common types include load cells, strain gauges, and piezoelectric sensors[4].
The benefits include preventive maintenance, optimized machine performance, reduced material waste, extended equipment life, and data-driven decision-making[10].
Chain tension sensors are used in a wide range of applications, including mining equipment, automotive industry, manufacturing plants, robotics, elevators, and winches[1][11][10][5][2][6].
Future trends include smart sensors, wireless technology, predictive maintenance, miniaturization, and multi-axis sensing[12].
