Digital tension sensors are crucial in various industries for measuring tension in materials like wires, cables, or fabrics. However, incorrect readings can lead to significant issues, affecting product quality and safety. This article explores common causes of inaccurate readings from digital tension sensors and provides troubleshooting steps to resolve these issues.

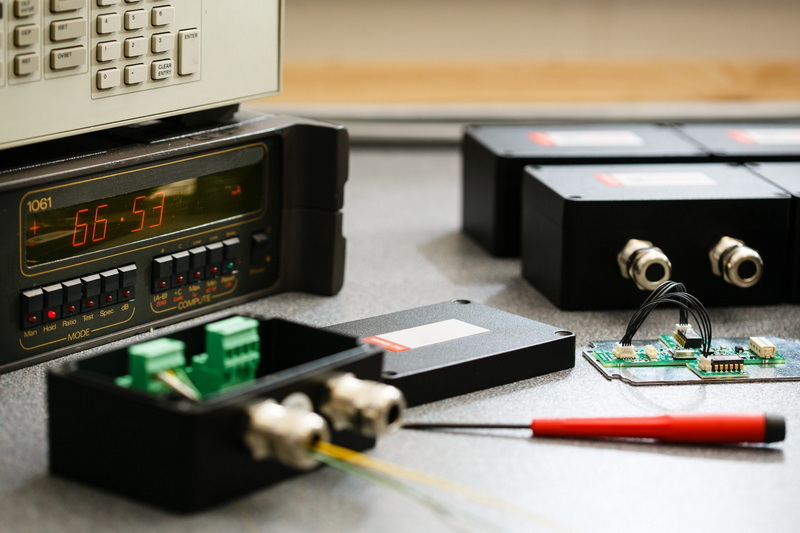

Digital tension sensors, such as the MAGPOWR Model DTR Digital Tension Readout, are designed to provide precise measurements of tension in moving webs or strands[2]. These sensors are essential in textile manufacturing, cable laying, and other applications where consistent tension is vital for quality control.
Digital tension sensors typically use load cells to convert mechanical tension into electrical signals. These signals are then processed and displayed on a digital interface, providing real-time tension measurements.
Several factors can cause digital tension sensors to give incorrect readings:
1. Mechanical Damage: Physical damage to the sensor or its components can lead to inaccurate measurements. This might occur due to improper handling or exposure to harsh environmental conditions.
2. Electrical Issues: Poor wiring connections, electrical surges, or corrosion can disrupt the sensor's ability to transmit accurate data[10].
3. Environmental Factors: Temperature fluctuations, moisture, and vibrations can affect sensor performance[10].
4. Calibration Errors: Improper calibration or drift over time can lead to systematic errors in measurements[10].
To address these issues, follow these troubleshooting steps:
1. Inspect Wiring: Ensure all connections are secure and free from corrosion. Use a multimeter to check for continuity and voltage levels[4].

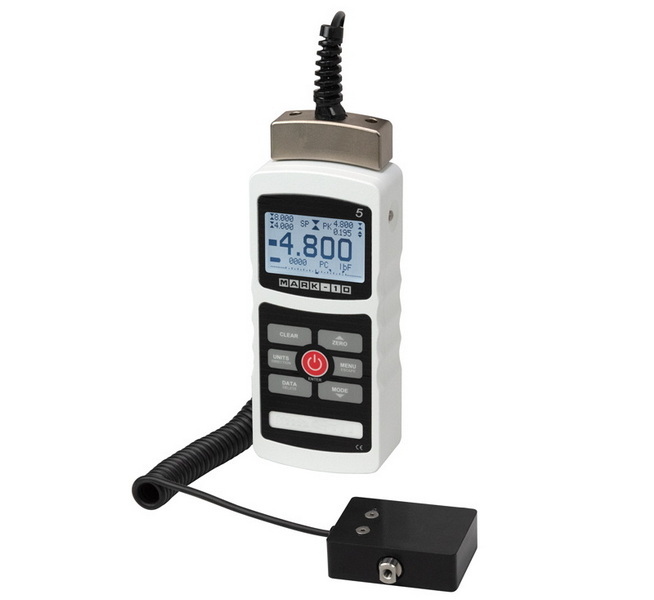

2. Verify Calibration: Check if the sensor is properly calibrated. Regular recalibration may be necessary to maintain accuracy[10].
3. Environmental Checks: Ensure the sensor operates within its specified environmental conditions. Use vibration dampening mounts and shielded cables to minimize interference[10].
4. Contact Support: If issues persist, contact technical support for further assistance[4].
For more complex issues, consider the following advanced techniques:
1. Temperature Compensation: Ensure the sensor is calibrated to account for temperature variations, which can significantly affect accuracy[7].
2. Hysteresis Correction: Some sensors may exhibit hysteresis, where readings differ based on increasing or decreasing pressure. Calibration should account for this effect[7].
3. Overload Protection: Prevent exposing sensors to pressures beyond their specified range, as this can cause permanent damage or calibration errors[7].
Digital tension sensors are indispensable tools in various industries, but their accuracy can be compromised by several factors. By understanding these common issues and following the outlined troubleshooting steps, users can ensure optimal performance and reliability from their digital tension sensors.
A digital tension sensor providing zero output may indicate severe issues such as electrical connection problems, incorrect supply voltage, or internal electronics failures. Check wiring connections and verify the supply voltage before seeking technical support[4].
An over-range output can result from excessive pressure, sensor malfunction, or calibration issues. Ensure the pressure is within the sensor's specified range and check for calibration errors. If the issue persists, contact technical support[4].
Temperature drift can significantly impact sensor accuracy, especially in environments with fluctuating temperatures. This may be due to issues with the sensor's compensation circuit or calibration. Regular calibration and ensuring proper environmental conditions can mitigate these effects[4].
Calibration frequency depends on operational demands and environmental conditions. Regular checks and recalibration are necessary to maintain accuracy, especially if the sensor is exposed to varying temperatures or mechanical stress[10].
Yes, electromagnetic interference from nearby electrical equipment can disrupt sensor readings. Using shielded cables and ensuring proper grounding can help minimize this interference[10].
