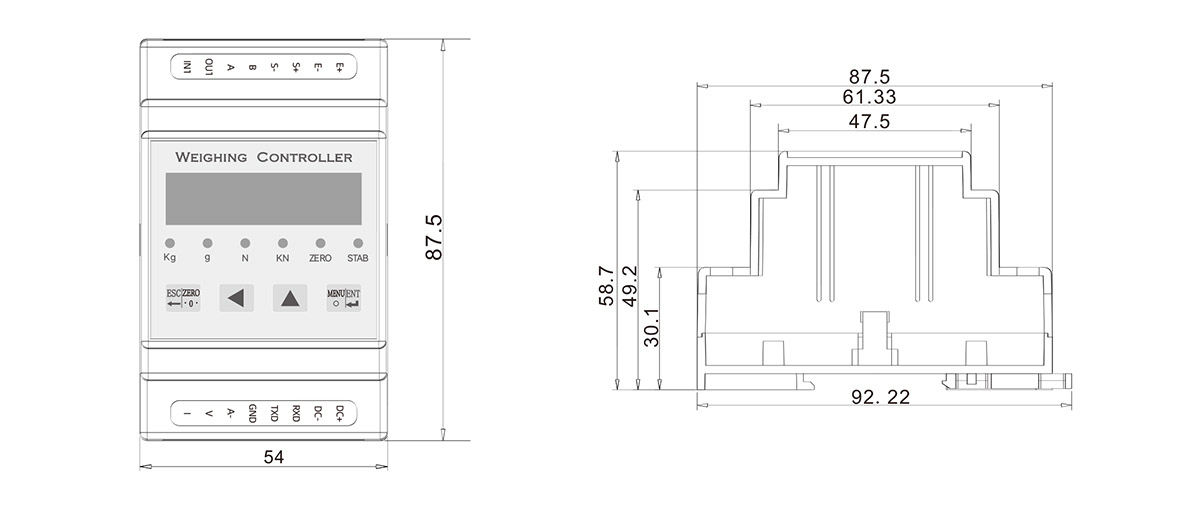

| Dimensions（Unit：mm） |
| Function Feature |
| ▶ RS232 and RS485 communication modes at the same time ▶ Mature filtering algorithms, so that the product has a higher precision ▶ AD conversion speed up to 1280HZ ▶ Supports Modbus-RTU protocol ▶ Standard analog (±10V and 4-20mA) output, standard IO (1 in 1 out) output |
| Specifications |
Specifications | Technique |
| Chamel Count | 1way |
| A/D Readabity | 24bit-Delta-Sigma(24seats) |
| A/D Conversion Speed | 1280Hz(Adjustable 10Hz,40Hz,640Hz) |
| Power Supply | DC 18-30V |
| Inputsingle Range | ±3.6mV/V |
| Bxctation Yoltage | 5VDC±1%, 100mA |
| Inputload | 1-8 pcs 350Ω Sensor |
| Input Sensitivity | 0.4mV/V~6mV/V |
| Output Linear | 1/90000 |
| Readability | ＜0.002% |
| Comprehensive Acauragy | Better than 0.01% |
| DA Output Readabity | 16bit |
| DA Output | ±10V, 4-20mA |
| Input | 1 IN |
| Output | 1 out (transistor) |
| Temp.efect an output | ≤10ppm/℃ |
| Temp.efecton zero | ≤10uV/℃ |
| Power waste | ≤10W |
| Communication Interface | RS-232 & RS-485 |
| Communication protocols | Modbus-RTU |
| BaudRate | 4800,9600(default),19200,38400, 57600,115200 |
| Size | 54x87.5x58.7mm |
| Operation Temp Range | -20~70℃ |
| Material | ABS Engineering Plastics |

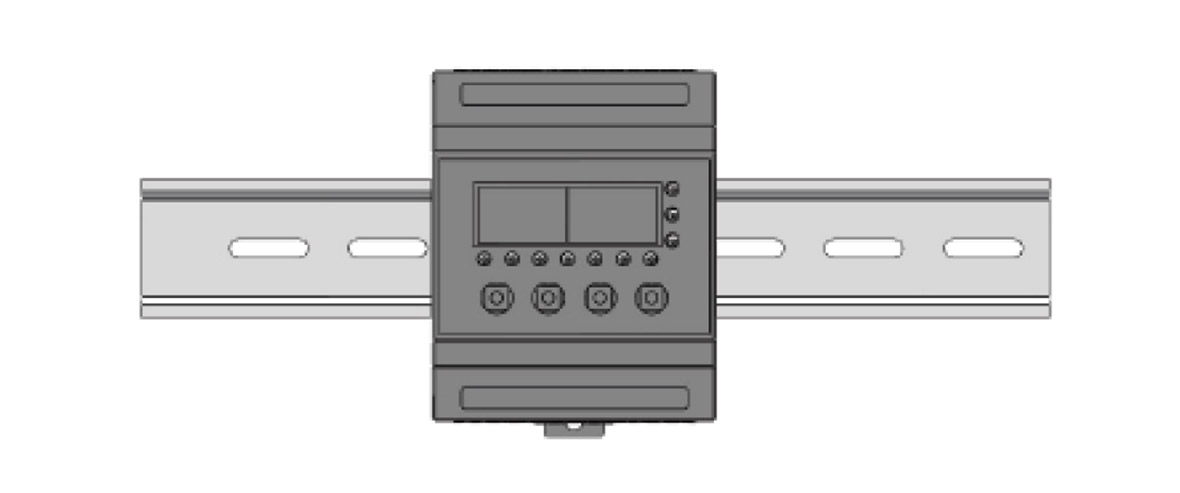

| Installation |
| Delivery Configurations |
