Tension load cells are critical components in various industrial applications, from weighing systems to structural testing. These force sensors measure pulling or tensile forces, converting them into electrical signals for accurate monitoring and control[1][11]. However, like any precision instrument, tension load cells can encounter issues that compromise their performance. This article provides a comprehensive guide to troubleshooting common problems with tension load cells, ensuring they operate efficiently and accurately.
A tension load cell is a force sensor designed to measure pulling or tensile forces applied to it[1]. Unlike compression load cells, which measure pushing forces, tension load cells are specifically engineered for applications where materials are stretched or pulled[1][4]. These devices are widely used in industrial weighing systems, structural testing, and various force measurement applications[1].
The fundamental principle behind tension load cells involves the use of strain gauges[1]. Here's a breakdown of how they operate:

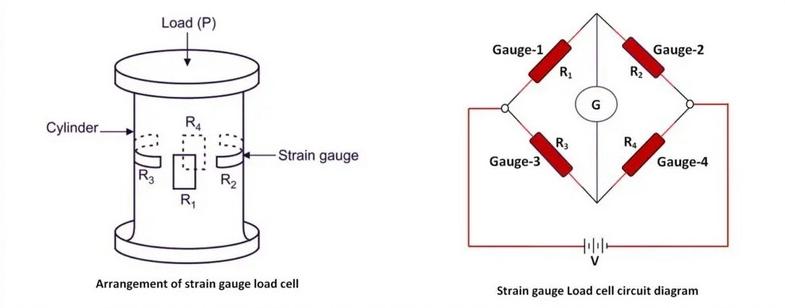

1. Strain Gauges: Tension load cells typically contain strain gauges arranged in a Wheatstone bridge configuration[1][4]. When a tensile force is applied, the load cell deforms slightly, causing the strain gauges to stretch[1].
2. Change in Resistance: As the strain gauges stretch, their electrical resistance changes[1][9]. This change in resistance is proportional to the amount of force applied to the load cell[1].
3. Signal Conversion: The change in resistance alters the voltage output from the strain gauges[1]. This voltage change is then processed by internal electronics to produce a readable signal that corresponds to the applied force[1]. A load cell amplifier is often used to measure the signal from the load cell and calculate an output value[7]. This value is then converted by the brake, drive, or clutch into the appropriate speed or torque needed for accuracy and control[7].
Several factors can cause a tension load cell to malfunction. These include physical damage, electrical issues, environmental factors, and improper installation[8]. Identifying the specific problem is the first step toward effective troubleshooting[5][10].
Physical Damage:
- Overloading: Exceeding the load cell's capacity can cause deformation and permanent damage[8].
- Shock Loads: Sudden impacts or shocks can also damage the internal components[8].
- Corrosion: Exposure to corrosive materials or moisture can degrade the load cell's structure and strain gauges[8].
Electrical Issues:
- Wiring Problems: Loose connections, damaged cables, or improper wiring can disrupt the signal[5].
- Electrical Noise: Interference from nearby equipment can affect the accuracy of the readings[7].
- Grounding Issues: Improper grounding can lead to unstable zero balance and inaccurate output[5].
Environmental Factors:
- Temperature Variations: Changes in temperature can affect the resistance of the strain gauges, leading to inaccurate measurements[4].
- Moisture Ingress: Moisture can cause corrosion and electrical shorts, affecting the load cell's performance[8].
Installation Problems:
- Misalignment: Improper alignment can cause uneven force distribution and inaccurate readings[5].
- Pre-Loading: Excessive pre-load can restrict movement and affect the load cell's ability to measure force accurately[5].
- Inadequate Support: Insufficient mechanical support can lead to instability and inaccurate measurements[5].
When a tension load cell is not working correctly, a systematic approach is essential to diagnose and resolve the issue. Here's a step-by-step guide:
1. Visual Inspection:
- Check for visible damage such as dents, cracks, or corrosion[8].
- Inspect the wiring and cables for any signs of wear, damage, or loose connections[8].
- Ensure that the load cell is properly mounted and aligned[5].
2. Electrical Checks:
- Continuity Test: Use a multimeter to check the continuity of the wiring and cables[5].
- Insulation Resistance Test: Measure the insulation resistance to ensure there are no electrical shorts[5].
- Output Signal Test: Apply a known force and measure the output signal to verify it is within the specified range[7].
3. Mechanical Checks:
- Clearance and Movement: Ensure there is adequate clearance and freedom of movement for the load cell[5].
- Assembly Stability: Verify that the assembly is stable and does not obstruct full deflection[5].
- Pre-Load Assessment: Check for any pre-load being applied from the extended assembly[5].
4. Environmental Checks:
- Temperature Monitoring: Monitor the temperature to ensure it is within the load cell's operating range[4].
- Moisture Inspection: Check for any signs of moisture ingress and ensure the load cell is properly sealed[8].
If the output of the tension load cell does not change when a load is applied, several potential issues could be the cause[5].
Potential Root Causes:
- Physical damage to strain gauges[5].
- Excessive pre-load restricting movement[5].
- Improper wiring or assembly interference[5].
Check:
- Ensure proper clearance and freedom of movement for the load cell[5].
- Verify wiring accuracy and inspect cable continuity[5].
- Examine the assembly for adequate deflection under load[5].
Solution:
- Adjust the assembly to prevent interference[5].
- Replace damaged load cells or repair wiring as necessary[5].
If the output at full scale is not within the specified limits, the following steps can help identify and resolve the problem[5].
Potential Root Causes:
- Excessive pre-load causing early overload stop[5].
- Assembly instability or inadequate mechanical support[5].
Check:
- Ensure adequate clearance between the load cell and adjacent components[5].
- Verify that the assembly is stable and does not obstruct full deflection[5].
Solution:
- Adjust assembly to allow full movement[5].
- Provide adequate mechanical support to the load cell[5].
An unstable zero balance can lead to inconsistent and unreliable readings. Here's how to troubleshoot this issue[5].
Potential Root Causes:
- The extended assembly is unstable or vibrating[5].
- Electrical noise is being introduced into the output via grounding issues[5].
- Intermittent, open, or shorted connection at lead outs[5].
Check:
- Ensure the extended assembly is stable and adequately secured[5].
- Ensure the load cell is properly grounded[5].
Perform continuity check on the load cell cable for open or short circuits[5]. Check cable integrity from sensor by moving the cable and monitoring output[5].
Solution:
- Stabilize the assembly and reduce vibrations[5].
- Ensure proper grounding to eliminate electrical noise[5].
- Repair or replace faulty cables and connections[5].
For more complex issues, advanced troubleshooting techniques may be necessary[8]. These include:
- Resistance Measurement: Measuring the resistance of the strain gauges can help identify internal damage or wiring problems[8].
- Insulation Testing: Testing the insulation resistance can reveal hidden electrical shorts[5].
- Signal Analysis: Analyzing the output signal with an oscilloscope can help detect noise or distortion[7].
- Calibration: Recalibrating the load cell can correct for drift and improve accuracy[4].
Preventive maintenance is crucial for ensuring the long-term reliability and accuracy of tension load cells. Regular maintenance tasks include:
- Cleaning: Keep the load cell clean and free from debris[4].
- Inspection: Regularly inspect the load cell for any signs of damage or wear[8].
- Calibration: Calibrate the load cell periodically to ensure accuracy[4].
- Environmental Protection: Protect the load cell from harsh environmental conditions[8].
Troubleshooting a tension load cell requires a systematic approach, combining visual inspections, electrical checks, mechanical assessments, and environmental monitoring. By understanding the common issues and following the troubleshooting steps outlined in this guide, you can effectively diagnose and resolve problems, ensuring your tension load cells operate efficiently and accurately. Regular maintenance and preventive measures further enhance the reliability and longevity of these critical force sensors.
Answer: Tension load cells measure pulling forces, while compression load cells measure pushing forces along a single axis[1][4]. Tension load cells are designed for applications where materials are stretched, whereas compression load cells are used where objects are compressed[1].
Answer: Inspect the load cell for any visible signs of deformation or damage[8]. If the zero balance is exceeded, it indicates that the load cell has been stressed or overloaded, and the elastic range has been altered[10].
Answer: Electrical noise can be introduced by nearby equipment, grounding issues, or faulty wiring[5]. Ensure proper grounding, use shielded cables, and keep the load cell away from sources of electrical interference[5].
Answer: The calibration frequency depends on the application and environmental conditions[4]. Generally, calibrating the load cell every six months to a year is recommended, but more frequent calibration may be necessary in demanding environments[4].
Answer: If the tension load cell is exposed to moisture, dry it thoroughly and inspect for any signs of corrosion[8]. Ensure that the load cell is properly sealed to prevent future moisture ingress[8]. If corrosion is present, consider replacing the load cell[8].
