The 2003 Porsche 996, a celebrated iteration of the iconic 911, represents a sweet spot in automotive engineering. It blends classic Porsche DNA with modern technology. Among the myriad components that contribute to its performance, the camshaft chain tension sensor plays a critical, yet often overlooked, role. This article delves into the function, importance, and potential issues related to the camshaft chain tension sensor in the 2003 Porsche 996. It aims to provide a comprehensive understanding for enthusiasts and owners alike.
Before diving into the specifics of the tension sensor, it's crucial to understand the basics of the camshaft and timing chain system.
The camshaft is a vital component within an internal combustion engine. Its primary function is to control the opening and closing of the engine's valves[7]. These valves regulate the intake of air and fuel, as well as the exhaust of combustion gases. The camshaft features lobes (or cams) that, as the camshaft rotates, push on the valves, opening them at precise moments in the engine's cycle[7].
The timing chain connects the crankshaft (which is linked to the pistons) to the camshaft(s)[7]. This connection ensures that the crankshaft and camshafts rotate in sync, maintaining the correct timing between piston movement and valve operation. This synchronization is absolutely critical for the engine to run properly[7]. If the timing is off, even by a small amount, it can lead to a range of issues, from reduced performance to severe engine damage[7].
The camshaft chain tension sensor is a key part of the timing chain system. Its job is to monitor and maintain the correct amount of tension on the timing chain[3][5].
Ensuring proper tension in the timing chain is crucial for several reasons:
- Preventing Chain Slack: Slack in the timing chain can cause it to skip teeth on the sprockets, leading to timing misalignment and potential engine damage[7].
- Reducing Wear and Tear: Consistent tension minimizes chain slap and vibrations, reducing wear on the chain, sprockets, and guides[3].
- Maintaining Accurate Valve Timing: Proper tension ensures that the camshafts rotate accurately, maintaining precise valve timing for optimal engine performance[1].

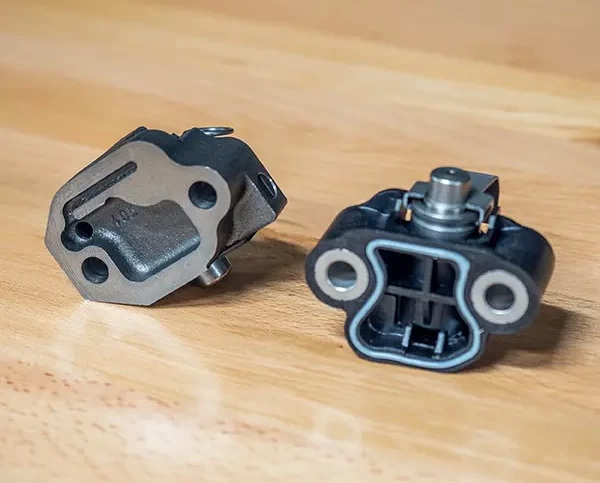

The tension sensor works in conjunction with the timing chain tensioner, a mechanical or hydraulic device that applies force to the timing chain[3]. The sensor provides feedback on the chain's tension, allowing the tensioner to adjust accordingly[9].
There are typically two types of tensioners:
- Mechanical Tensioners: Use a spring to apply tension to the chain.
- Hydraulic Tensioners: Use oil pressure to maintain tension, often in combination with a spring.
The sensor monitors the position or pressure of the tensioner, providing data to the engine control unit (ECU)[9]. The ECU then uses this information to fine-tune the tension, ensuring it remains within the optimal range.
In the 2003 Porsche 996, the camshaft chain tension sensor is part of a sophisticated engine management system. This system is designed to deliver both high performance and reliability. However, like any mechanical component, the tension sensor and related parts can be subject to wear and failure.
Several issues can arise with the camshaft chain tension sensor and timing chain system in the 2003 Porsche 996:
- Sensor Failure: The sensor itself can fail, providing inaccurate readings or no signal at all to the ECU.
- Tensioner Malfunction: The tensioner may become stuck or lose its ability to maintain proper tension[8].
- Chain Wear: Over time, the timing chain can stretch due to wear, requiring the tensioner to work harder to maintain tension[3].
- Guide Wear: The timing chain runs along guides, typically made of plastic. These guides can wear down, leading to chain slap and potential timing issues[2].
-Common symptoms of a failing camshaft chain tension sensor or related problems include:*
- Check Engine Light: This is often the first sign of a problem, as the ECU detects an anomaly in the timing chain system[5].
- Rough Running or Stalling: Improper valve timing can lead to poor engine performance, including rough idling and stalling[5].
- Rattling Noises: A loose timing chain can rattle against the engine components, producing a noticeable noise[7].
- Misfires: Incorrect valve timing can cause misfires, which can be detected by the ECU[5].
- Reduced Power: The engine may feel sluggish or lack its usual power[7].
Diagnosing issues with the camshaft chain tension sensor and timing chain system typically involves the following steps:
1. Reading Diagnostic Trouble Codes (DTCs): Using an OBD-II scanner to retrieve any stored trouble codes from the ECU[2]. Common codes might relate to camshaft position, timing misalignment, or sensor failure[5].
2. Visual Inspection: Inspecting the timing chain, tensioner, and guides for signs of wear or damage[2].
3. Sensor Testing: Testing the camshaft chain tension sensor to ensure it is providing accurate readings[2]. This may involve using a multimeter or oscilloscope to check the sensor's signal.

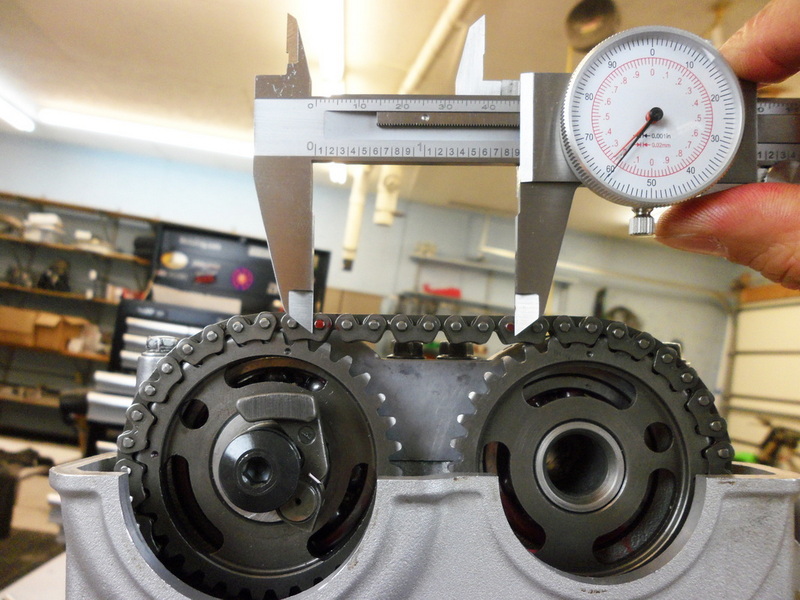

4. Timing Verification: Verifying the engine's timing using specialized tools to ensure the camshafts and crankshaft are properly aligned[4].
Repairing these issues can range from simple sensor replacement to more involved procedures, such as replacing the timing chain, tensioner, and guides. In some cases, camshaft adjustment may also be necessary[6].
Preventative maintenance is key to ensuring the longevity and reliability of your 2003 Porsche 996's timing chain system.
- Importance of Clean Oil: Regular oil changes with high-quality oil are crucial[7]. Clean oil ensures proper lubrication of the timing chain, tensioner, and guides, reducing wear and tear.
- Oil Viscosity: Use the correct oil viscosity as specified by Porsche for the 2003 996.
- Timing Chain Inspection: Have the timing chain and related components inspected at recommended intervals.
- Listen for Unusual Noises: Pay attention to any unusual noises coming from the engine, such as rattling or ticking, which could indicate a problem with the timing chain system[7].
- Don't Delay Repairs: If you suspect an issue with the camshaft chain tension sensor or timing chain system, address it promptly. Delaying repairs can lead to more extensive and costly damage[2].
Working on the timing chain system requires specialized knowledge, tools, and experience. Unless you are a highly skilled and experienced mechanic, it is best to entrust these repairs to a qualified Porsche technician[4].
- Expertise: Porsche technicians have the expertise and training to accurately diagnose and repair issues with the 2003 996's timing chain system[4].
- Specialized Tools: They have access to specialized tools and equipment required for these repairs[4].
- Genuine Parts: They can source genuine Porsche parts, ensuring the highest quality and fitment[4].
The camshaft chain tension sensor is a small but vital component in the 2003 Porsche 996's engine. It plays a critical role in maintaining proper timing and ensuring optimal performance and reliability. By understanding the function of this sensor, recognizing potential problems, and following preventative maintenance practices, owners can help keep their 996s running smoothly for years to come. Addressing issues promptly and entrusting repairs to qualified Porsche technicians are essential steps in preserving the longevity of this iconic sports car.
The camshaft chain tension sensor monitors the tension of the timing chain in the engine[3][5]. It provides feedback to the engine control unit (ECU), allowing it to adjust the timing chain tensioner and maintain optimal timing[9].
Symptoms can include a check engine light, rough running or stalling, rattling noises from the engine, misfires, and reduced power[5][7].
There is no specific replacement interval for the timing chain tensioner[7]. However, it should be inspected regularly and replaced if there are signs of wear or malfunction[2].
Replacing the camshaft chain tension sensor requires specialized knowledge and tools[4]. Unless you are an experienced mechanic, it is best to have it done by a qualified Porsche technician[4].
Ignoring a problem with the timing chain tensioner can lead to significant engine damage, including valve-to-piston contact, timing misalignment, and even complete engine failure[7].
