Load cells are essential components in various industries, serving as the backbone for weight and force measurement systems. When multiple load cells are employed in a single application, the question arises: can a load cell signal conditioner handle multiple load cells simultaneously? This article delves into the intricacies of load cell signal conditioning, exploring its functionality, benefits, and the feasibility of managing multiple load cells with a single signal conditioner.

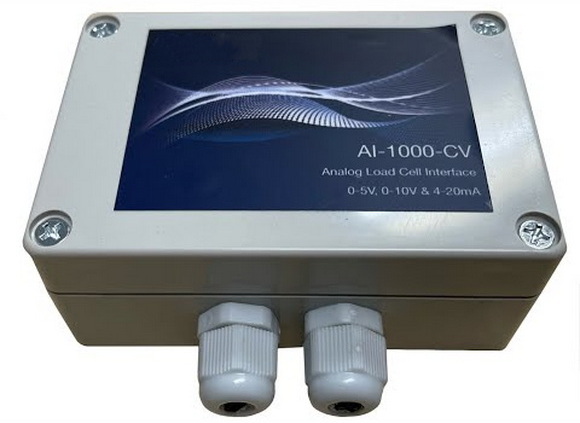

Load cell signal conditioning is the process of converting the raw output from a load cell into a stable and standardized signal that can be used for further processing or display. The raw signals generated by load cells are typically very small and susceptible to noise and interference. Therefore, signal conditioning is crucial for ensuring accuracy and reliability in measurements.
Key Functions of Load Cell Signal Conditioning:
- Amplification: The low-level signals from load cells (often in millivolts) are amplified to a usable voltage level.
- Filtering: Unwanted noise is removed from the signal to enhance clarity.
- Linearization: The output signal is adjusted to ensure it accurately reflects the applied load.
- Conversion: The conditioned signal is converted into formats compatible with data acquisition systems or displays, such as 4-20 mA or 0-10 V outputs.
Yes, a load cell signal conditioner can handle multiple load cells, but there are specific considerations and configurations required to achieve accurate measurements.
Load cells can be connected in parallel or series configurations:

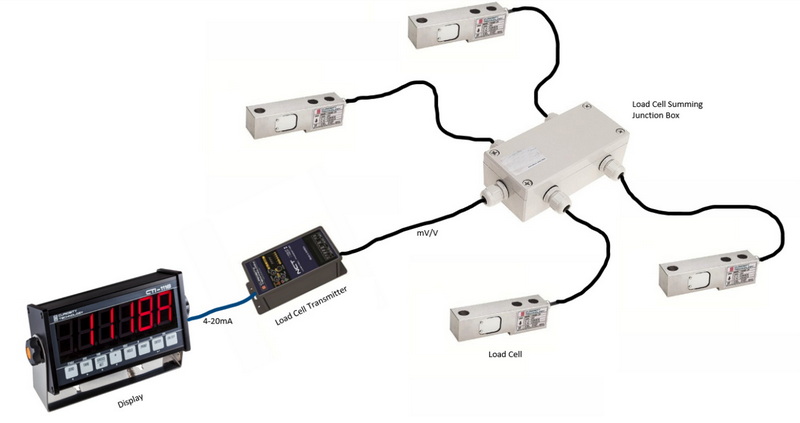

- Parallel Configuration: This setup allows multiple load cells to share the same input signals. However, it requires careful calibration to ensure that each cell contributes equally to the total measurement. This method is commonly used in applications like platform scales where weight distribution is even across all cells.
- Series Configuration: In this configuration, load cells are connected end-to-end. This method is less common for weight measurement but may be applicable in certain specialized applications.
For applications requiring multiple load cells to be read by a single signal conditioner, multiplexers can be used. These devices allow for switching between different load cell inputs, enabling one signal conditioner to process signals from multiple sources without interference.
The integration of multiple load cells with a single signal conditioner offers several advantages:
- Cost Efficiency: Utilizing one signal conditioner for several load cells reduces costs associated with purchasing multiple units.
- Simplified Wiring: Fewer devices mean less complex wiring setups, which can simplify installation and maintenance.
- Centralized Data Processing: Having all signals processed through one unit allows for easier data management and analysis.
While there are benefits, there are also challenges associated with using one signal conditioner for multiple load cells:
- Calibration Complexity: Each load cell must be calibrated individually before being used together. This process can be time-consuming and requires precise adjustments to ensure accuracy.
- Load Distribution Issues: Uneven loading across multiple cells can lead to inaccurate measurements. Proper mechanical alignment and leveling of the platform are essential to mitigate this issue.
Multiple load cell configurations with a single signal conditioner are prevalent in various industries:
- Industrial Weighing Systems: Used in platforms where large items are weighed.
- Structural Testing: In applications where forces are measured across beams or structures.
- Automated Systems: Integrated into production lines where weight measurements trigger processes or alarms.
To effectively implement a system using multiple load cells with one signal conditioner, several detailed considerations should be addressed:
Choosing the right type of load cell is critical. Factors such as capacity, sensitivity, and environmental conditions must be considered. For example:
- Strain Gauge Load Cells: These are commonly used due to their high accuracy and reliability.
- Hydraulic Load Cells: Suitable for heavy-duty applications but require more complex conditioning.
The specific requirements for signal conditioning will vary based on the application:
- Dynamic vs. Static Measurements: Dynamic measurements (like those found in weighing scales during operation) may require faster response times compared to static measurements (like those taken during structural tests).
- Environmental Conditions: If the application involves extreme temperatures or moisture levels, selecting a robust signal conditioner that can withstand these conditions is vital.
Calibration should not only be performed initially but also periodically throughout the equipment's life cycle:
- Initial Calibration: Each load cell should be calibrated against known weights to ensure accuracy before integration.
- Routine Checks: Regular checks should be scheduled to maintain accuracy over time, especially if the system experiences significant changes in temperature or loading conditions.
As technology evolves, so do the methods of signal conditioning. Advanced technologies now offer enhanced features that improve performance:
Modern signal conditioners may utilize DSPs that provide advanced filtering techniques and real-time data processing capabilities. These processors can handle complex algorithms that enhance measurement accuracy and reduce noise effectively.
In many modern applications, wireless communication technologies allow for remote monitoring and control of load cell systems. This capability enables real-time data collection without the need for extensive wiring setups.
The Internet of Things (IoT) has made its way into industrial applications, allowing for seamless integration of load cell systems with broader networked systems. This integration facilitates data sharing across platforms and enhances operational efficiency through data analytics.
To maximize performance when using multiple load cells with one signal conditioner, consider these best practices:
- Regular Maintenance: Ensure that all components are regularly inspected and maintained to prevent malfunctions or inaccuracies.
- Proper Installation Techniques: Follow manufacturer guidelines during installation to avoid mechanical stress on the load cells that could affect readings.
- Data Logging: Implement data logging solutions to track performance trends over time, which can help identify potential issues before they become significant problems.
In conclusion, a load cell signal conditioner can effectively handle multiple load cells when configured correctly. By understanding the principles of signal conditioning and employing appropriate techniques such as multiplexing and careful calibration, users can achieve accurate and reliable measurements across various applications. The ability to manage multiple load cells through a single conditioner not only enhances efficiency but also simplifies data processing.
A load cell signal conditioner is a device that amplifies, filters, and converts the raw signals from load cells into standardized outputs suitable for data acquisition systems or displays.
Yes, you can connect multiple load cells to one signal conditioner using parallel or series configurations; however, proper calibration and alignment are crucial for accurate measurements.
Common issues include uneven loading leading to inaccurate readings and the complexity of calibrating each cell individually before use.
To ensure accuracy, mechanically align the load cells properly, calibrate each one individually, and use appropriate configurations such as multiplexers if necessary.
Applications such as industrial weighing systems, structural testing frameworks, and automated production lines benefit significantly from using multiple load cells managed by a single signal conditioner.
