Tension load cells and compression load cells are vital tools in various engineering and industrial sectors, designed to measure pulling and pushing forces, respectively. Among these, the S-type load cell, also known as the S-beam load cell, is notable for its distinctive "S" shape, which allows it to measure both tension and compression forces with high accuracy. This article explores the functionality, design, and applications of S-type load cells, focusing on their suitability for both tension and compression measurements. We will address common questions and concerns regarding their use in different scenarios, as well as delve deeper into calibration, mounting, environmental considerations, and advanced applications.
A load cell is a transducer that converts force into a measurable electrical signal. These devices are critical in applications ranging from simple weighing scales to complex material testing machines. The most common type of load cell utilizes strain gauges, which are small electrical resistors that deform when subjected to force. This deformation changes the resistance of the strain gauge, which is then measured by a Wheatstone bridge circuit to provide an accurate force reading.
Load cells come in a variety of configurations, each designed for specific applications:
Tension Load Cells: Primarily used to measure pulling forces. They are often integrated into suspended systems and are designed to align mounting points along a central axis. Applications include crane scales and cable tension measurement.
Compression Load Cells: Designed to measure pushing or squashing forces. These are typically installed beneath the object being measured and are commonly used in high-capacity static weighing scenarios such as vehicle scales, silo weighing, and structural load monitoring.
S-Type Load Cells: Also known as S-beam load cells, these versatile devices can measure both tension and compression forces. Their S shape allows for well-controlled and precise measurements in both directions, making them suitable for a wide range of applications.
Beam Load Cells: These cells measure bending or shear strain and are often used in applications where one end is fixed, and the load is applied to the other. Examples include platform scales and industrial weighing.
Single-Point Load Cells: Designed for versatility and are capable of measuring off-center loads, making them suitable for applications where the load is not always evenly distributed. These are commonly used in retail scales and small platform weighing systems.

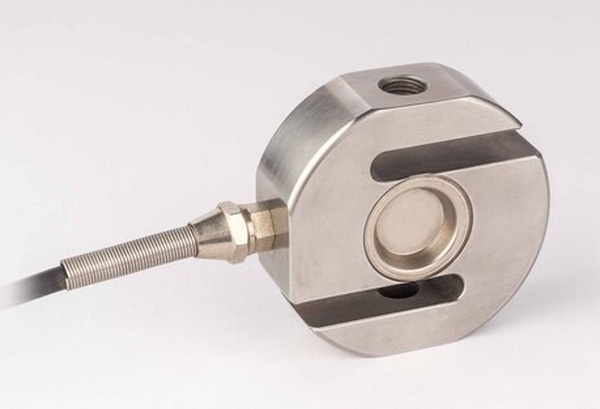

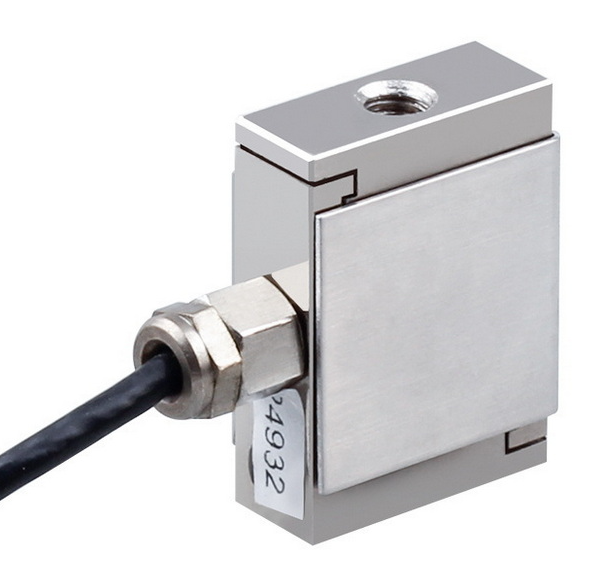

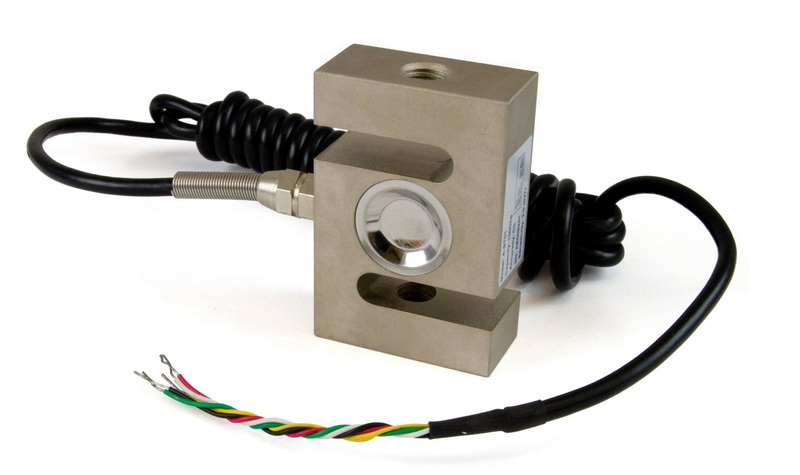

The S-type load cell, or S-beam load cell, gets its name from its distinctive S shape. This design is not merely cosmetic; it is integral to the load cell's ability to accurately measure both tension and compression forces. The S shape allows the load cell to maintain precision, even in space-limited environments, and provides a balanced response to forces applied in either direction.
- Versatility: S-type load cells are effective for applications requiring both tension and compression force measurements, reducing the need for multiple specialized sensors.
- Accuracy: Engineers and testing labs favor S-type load cells for their high precision, making them ideal for critical measurements in research and development.
- Compact Size: These load cells are smaller than typical load cells, making them beneficial when space is limited. This is especially useful in portable testing equipment and complex machinery.
- Easy Mounting: S-type load cells are designed for easy installation, which reduces setup time and complexity. Standardized mounting holes and threads simplify integration into existing systems.
- Cost-Effectiveness: They offer a cost-effective solution for applications needing versatile force measurement, consolidating the functionality of two separate load cells into one.
S-type load cells operate on the principle of strain measurement. Strain gauges are strategically placed within the load cell to detect deformation caused by applied forces. When a tension or compression force is applied, the S-type load cell deforms slightly, and the strain gauges measure this deformation. The change in electrical resistance of the strain gauges is then converted into an electrical signal proportional to the applied force.
In tension applications, the load cell is pulled, causing the strain gauges to stretch. In compression applications, the load cell is pushed, causing the strain gauges to compress. The S-shape design ensures that the load is evenly distributed across the strain gauges, providing accurate and reliable measurements in both scenarios. The precise placement of the strain gauges and the geometry of the S-shape are carefully engineered to maximize sensitivity and minimize errors.
One of the primary advantages of S-type load cells is their ability to measure both tension and compression forces. This makes them highly versatile for a wide range of applications. However, there are several factors to consider when using a tension S load cell in compression to ensure accurate and reliable measurements.
Load cells can be calibrated in either tension or compression, or both. If a tension S load cell is to be used in compression, it is crucial to ensure that it has been properly calibrated for compression measurements. Calibration involves applying known forces to the load cell and adjusting the output signal to match the applied force accurately. This process typically involves using a calibration machine that applies precise forces and measures the load cell's output.
A calibration certificate should be provided with the load cell, detailing the calibration procedure, the applied forces, and the corresponding output signals. Regular recalibration is recommended to maintain accuracy over time, as strain gauges can drift or degrade due to usage and environmental factors.
Proper mounting and alignment are essential for accurate measurements. The load cell must be mounted in a way that ensures the force is applied along the central axis. Misalignment can lead to inaccurate readings and potential damage to the load cell. Using precision mounting hardware and shims can help ensure proper alignment.
The mounting surfaces should be clean and flat to provide a stable base for the load cell. The use of appropriate fasteners, such as high-strength bolts, is also crucial to prevent movement or slippage during operation.
It is important to ensure that the applied compressive force does not exceed the load cell's capacity. Overloading can damage the strain gauges and compromise the accuracy and reliability of the load cell. Many load cells are equipped with overload protection mechanisms to prevent damage from excessive force. These mechanisms may include internal stops or external limiters that prevent the load cell from being subjected to forces beyond its rated capacity.
It is also important to consider the dynamic loading conditions. Sudden impacts or vibrations can create peak forces that exceed the load cell's capacity, even if the static load is within the specified limits. Damping mechanisms or shock absorbers may be necessary to mitigate the effects of dynamic loading.
Environmental conditions such as temperature, humidity, and corrosive substances can affect the performance of load cells. S-type load cells are typically made of materials resistant to rusting and scratches, but it is still important to protect them from harsh environments. Using a hardened cover can further ensure the base plate remains free from deformity, which is crucial for precise results.
Temperature fluctuations can cause changes in the strain gauge's resistance, leading to measurement errors. Temperature compensation circuits are often incorporated into the load cell to minimize these effects. Humidity can also affect the strain gauges and the internal electronics of the load cell. Sealing the load cell in a waterproof enclosure can protect it from moisture.
In addition to the basic considerations, there are several advanced factors that can affect the performance of S-type load cells in compression:
- Hysteresis: Hysteresis refers to the difference in output signal between increasing and decreasing loads. It is caused by the elastic properties of the load cell material. Minimizing hysteresis is important for achieving high accuracy, especially in dynamic loading applications.
- Creep: Creep is the gradual change in output signal over time under a constant load. It is caused by the viscoelastic properties of the load cell material. Minimizing creep is important for maintaining long-term stability.
- Non-Linearity: Non-linearity refers to the deviation of the output signal from a straight line. It is caused by the non-ideal behavior of the strain gauges and the load cell material. Calibration and compensation techniques can be used to minimize non-linearity.
S-type load cells are used in a variety of applications that require both tension and compression measurements:
- Material Testing Machines: S-type load cells are used in machines that test the tensile and compressive strength of materials. These tests are essential for ensuring the quality and reliability of products used in various industries. Examples include testing the strength of steel beams, concrete columns, and composite materials.
- Weighing Systems: They are used in hanging scales and other weighing systems where both tension and compression forces need to be measured. These systems are commonly used in shipping and logistics applications.
- Dynamometers: S-type load cells are used in dynamometers to measure the force and torque produced by engines and motors. These measurements are used to evaluate the performance and efficiency of engines and motors.
- Process Weighing: They are suitable for use in process weighing applications, plant engineering, and tank weighing. These applications require accurate and reliable measurements of the weight of materials in tanks and vessels.
- OEM Applications: S-type load cells provide a cost-effective solution for a wide variety of OEM (Original Equipment Manufacturer) applications. Examples include integration into industrial machinery and custom measurement systems.
- Robotics: Used in robotic arms to measure force feedback, enabling precise control and manipulation of objects.
- Aerospace: Employed in aircraft testing and structural analysis to measure loads on critical components.
- Civil Engineering: Utilized in bridge monitoring systems to measure strain and stress on structural elements.
- Agricultural Machinery: Used in tractor and harvester implements to monitor soil resistance and optimize performance.
- Versatility: Ability to measure both tension and compression forces.
- High Accuracy: Provides reliable and precise measurements.
- Compact Design: Suitable for use in space-limited applications.
- Cost-Effective: Offers a cost-efficient solution for various force measurement needs.
- Easy to Mount: Simple installation process.
- Wide Range of Capacities: Available in various capacities to suit different applications.
- Durable Construction: Typically made of robust materials to withstand harsh environments.
- Calibration Requirements: Requires proper calibration for both tension and compression measurements.
- Mounting and Alignment: Proper mounting and alignment are crucial for accurate readings.
- Environmental Sensitivity: Can be affected by environmental conditions.
- Capacity Limits: It is important not to exceed the load cell's capacity.
- Susceptibility to Side Loads: Can be sensitive to side loads, which can cause measurement errors.
- Maintenance: Requires periodic maintenance and recalibration to maintain accuracy.
In conclusion, a tension S load cell can indeed be used in compression, provided that it is properly calibrated, mounted, and protected from environmental factors. The S-type load cell's versatility, accuracy, and compact design make it a valuable tool for a wide range of applications requiring both tension and compression measurements. By understanding the principles of operation, considering the calibration requirements, and taking necessary precautions, engineers and technicians can effectively utilize S-type load cells to achieve reliable and precise force measurements in various scenarios. The continued development of S-type load cell technology is expanding their capabilities and making them even more versatile and reliable for a wide range of industrial and scientific applications.
An S-type load cell, also known as an S-beam load cell, is a transducer designed to measure both tension (pulling) and compression (pushing) forces. Its distinctive S shape allows for accurate and versatile force measurements in various applications.
S-type load cells use strain gauges to measure the deformation caused by applied forces. When a force is applied, the strain gauges deform, changing their electrical resistance. This change is measured by a Wheatstone bridge circuit, which provides an electrical signal proportional to the applied force.
Yes, a tension S load cell can be used in compression, provided that it is properly calibrated for compression measurements. Proper mounting, alignment, and consideration of environmental conditions are also crucial for accurate readings.
S-type load cells are commonly used in material testing machines, weighing systems, dynamometers, process weighing, and various OEM applications. Their versatility makes them suitable for any application requiring both tension and compression measurements.
The advantages of using S-type load cells include their versatility, high accuracy, compact design, cost-effectiveness, and ease of mounting. They provide a reliable and efficient solution for a wide range of force measurement needs.
