Load cells are essential components in various applications, including industrial weighing systems, force measurement devices, and even DIY projects. They convert mechanical force into an electrical signal, which is then interpreted by a load cell display. However, many users wonder whether they can use any load cell with a load cell display. This article explores the compatibility of load cells and displays, the factors to consider when making a selection, and practical applications.
Load cells come in various types, each designed for specific applications. The most common types include:
- Strain Gauge Load Cells: These are the most prevalent type and work by measuring the deformation of a material under load. They are widely used due to their accuracy and reliability.
- Hydraulic Load Cells: These use hydraulic fluid to measure weight and are often used in heavy-duty applications. They can handle larger loads than strain gauge load cells but may require more maintenance.
- Pneumatic Load Cells: These operate using air pressure and are less common but useful in specific environments where electrical systems may pose a risk.
Each type has its specifications regarding capacity, sensitivity, and output signal type. Understanding these differences is crucial for selecting the right load cell for your application.

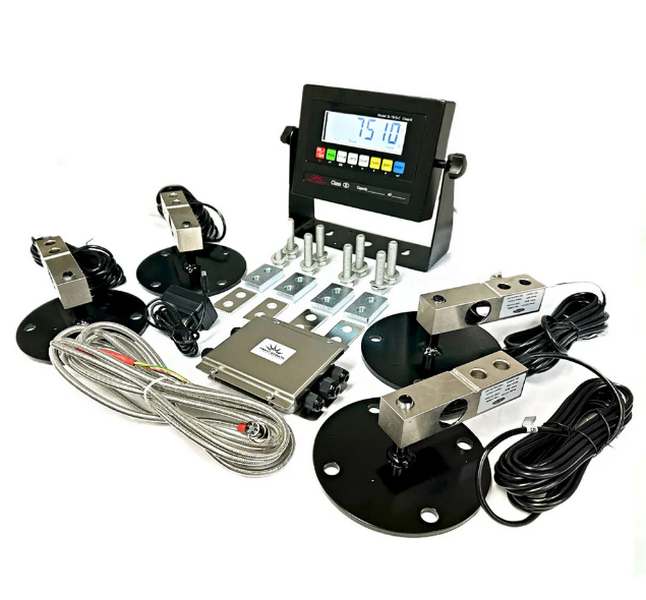

A load cell display is an electronic device that interprets the signals from a load cell and presents them in a readable format. Here's how it typically works:
1. Signal Reception: The load cell generates an analog voltage signal based on the applied force.
2. Signal Amplification: The raw signal is usually too weak to be processed directly; hence, it needs amplification.
3. Analog-to-Digital Conversion: Most displays convert the amplified analog signal into a digital format for processing.
4. Display Output: The processed signal is displayed on an LCD or LED screen for user interpretation.
5. User Interface: Many displays come with buttons or touch screens for functionalities like zeroing (taring), unit switching, and calibration.
When considering whether you can use any load cell with a load cell display, several factors come into play:
Most load cells output either an analog signal (typically 0-10V or 4-20mA) or a digital signal (like RS232). It's crucial to ensure that the output type of the load cell matches the input requirements of the display. For instance, if your load cell outputs a 4-20mA signal, but your display only accepts 0-10V input, you will need an appropriate signal converter.
Load cells require an excitation voltage to operate properly. Common excitation voltages are 5V or 10V. Ensure that your load cell display can provide the necessary excitation voltage for the load cell you intend to use. If the excitation voltage is too low, it may lead to inaccurate readings; conversely, too high of an excitation voltage can damage the load cell.
The capacity of the load cell should match the range that the display can handle. For example, if you have a 1000 kg load cell but your display only supports up to 500 kg, you will not get accurate readings. Additionally, sensitivity refers to how small of a change in weight the system can detect; both components should be compatible in this regard to ensure optimal performance.
Different load cells may require different calibration settings on the display unit to ensure accurate readings. Make sure that your display can be calibrated for the specific characteristics of your load cell. Calibration typically involves applying known weights to the scale and adjusting settings on the display until it accurately reflects those weights.
Ensure that the wiring from your load cell is compatible with your display unit. This includes checking wire colors and functions (e.g., excitation, signal). Mismatched wiring can lead to incorrect readings or even damage to either component.
Load cells and displays are used in various applications across multiple industries:
- Industrial Scales: Used for weighing products in manufacturing processes where precision is critical.
- Laboratory Measurements: For precise measurements in research settings where accuracy can impact experimental results.
- Automotive Testing: Measuring forces during crash tests or component testing to ensure safety standards are met.
- Construction Weighing Systems: Used for monitoring loads on cranes or other heavy machinery to prevent overload situations.
- Retail Scales: Commonly found in grocery stores and markets for weighing produce and other items sold by weight.
- DIY Projects: Many hobbyists create their own scales using Arduino and HX711 amplifiers with load cells for personal projects or small-scale production.
When selecting a load cell display, consider these additional factors:
Look for features that enhance usability such as backlighting for visibility in low-light conditions, multiple unit conversions (grams, pounds, kilograms), and tare functions that allow you to zero out weights easily.
Depending on your application environment, consider displays that offer ruggedness against dust, moisture, or extreme temperatures. Industrial environments may require displays with higher IP ratings (Ingress Protection).
Some modern displays come with connectivity options like Bluetooth or Wi-Fi for remote monitoring and data logging capabilities. This feature can be particularly beneficial for large operations where monitoring multiple scales from one location is advantageous.
While it's tempting to go for cheaper options, investing in quality components can save money in maintenance and replacement costs over time. Evaluate your budget against your needs carefully.
Even with compatible components, users may encounter issues when using load cells with displays:
- Inaccurate Readings: This could stem from improper calibration or mismatched specifications between components.
- Display Not Turning On: Check power connections and ensure that all wiring is secure.
- Erratic Readings: This might indicate electrical noise interference; using shielded cables can help mitigate this issue.
- Overload Warnings: If you're receiving overload warnings despite using within limits, check if your display's capacity settings align with those of your load cell.
In conclusion, while it is possible to use different types of load cells with a load cell display, compatibility depends on several factors such as output signal type, excitation voltage, capacity, sensitivity, calibration requirements, and wiring compatibility. Always refer to manufacturer specifications to ensure proper integration between your selected load cell and display unit.
While it might be technically possible if both devices support compatible output signals, it is generally not recommended due to differences in operation principles.
You may risk damaging the display or receiving inaccurate readings since the display may not be able to process signals beyond its rated capacity.
Calibration typically involves applying known weights to the scale and adjusting settings on the display until it accurately reflects those weights.
Some advanced displays offer compatibility with multiple types of signals (analog/digital) but always check specifications before purchasing.
This depends on cable type and gauge; however, using dedicated low-resistance cables can help maintain accuracy over longer distances—generally recommended not exceeding 10-15 meters without amplification.
