S beam load cells are widely used in various industrial applications due to their versatility and accuracy in measuring tension and compression forces. One common question that arises is whether these load cells can be mounted horizontally. This article explores the mounting options for S beam load cells, their applications, and best practices for installation to ensure optimal performance.
S beam load cells are named for their distinctive "S" shape, which allows them to measure both tension and compression forces effectively. They are commonly used in applications such as tank weighing, suspended loads, and truck scales. The design of S beam load cells provides a compact and robust solution for force measurement, making them a popular choice in various industries.
Yes, S beam load cells can be mounted horizontally. However, there are several factors to consider to ensure accurate measurements and optimal performance:
1. Load Alignment: When mounting horizontally, it is crucial to ensure that the load is applied in line with the load cell's axis. Misalignment can lead to inaccurate readings and potential damage to the load cell.
2. Support Structure: The mounting structure must be rigid and stable to prevent any movement or flexing that could affect the load cell's performance. Using high-strength bolts and ensuring a flat mounting surface are essential.
3. Environmental Considerations: If the load cell will be exposed to harsh environments, it is important to select a model with appropriate sealing and protection against moisture and dust.
4. Calibration: After installation, the load cell should be calibrated to ensure accurate measurements. This is especially important if the load cell is mounted in a non-standard orientation.

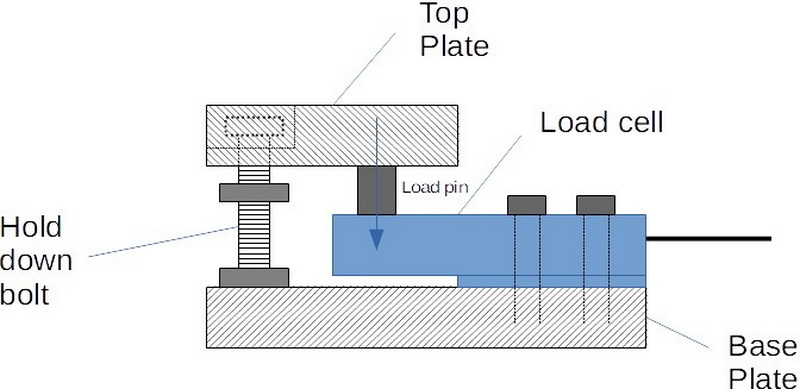

To achieve the best results when mounting S beam load cells, follow these best practices:
◆ Use Proper Mounting Hardware: Ensure that the load cell is secured with the appropriate mounting hardware. This includes using bolts that are rated for the load capacity and ensuring they are tightened to the manufacturer's specifications.
◆ Avoid Overloading: Each load cell has a specified load capacity. Exceeding this capacity can lead to permanent damage. Always check the load specifications before installation.
◆ Leave a Gap: When using rod ends or load buttons, leave a small gap to prevent contact with the central beam. This helps to avoid unnecessary stress on the load cell.
◆ Monitor Output During Installation: It is advisable to monitor the output of the load cell during installation to ensure that it is functioning correctly and to avoid permanent zero shifts.

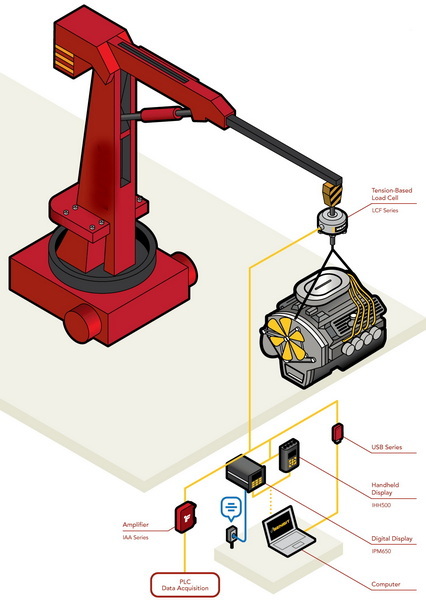

S beam load cells are used in a variety of applications, including:
◆ Weighing Systems: They are commonly used in scales for weighing tanks, hoppers, and other suspended loads.
◆ Force Measurement: S beam load cells are ideal for applications requiring precise force measurement in both tension and compression.
◆ Industrial Automation: These load cells are often integrated into automated systems for monitoring and controlling processes.
In conclusion, S beam load cells can indeed be mounted horizontally, provided that proper installation practices are followed. Ensuring load alignment, using appropriate mounting hardware, and considering environmental factors are key to achieving accurate measurements. By adhering to best practices, users can optimize the performance of S beam load cells in various applications.
The load capacity varies by model, typically ranging from a few pounds to several thousand pounds.
Yes, but it is essential to choose a model with adequate environmental protection, such as IP67 rating.
Calibration frequency depends on usage and environmental conditions, but it is generally recommended at least once a year.
Signs include erratic readings, failure to return to zero, or physical damage to the load cell.
Yes, S beam load cells can be used for dynamic measurements, but ensure they are rated for such applications.
This article provides a comprehensive overview of S beam load cells, their mounting options, and best practices for installation. By following the guidelines outlined, users can ensure accurate and reliable performance in their applications.
