Wiring a load cell into two readouts is a common practice in various industrial and scientific applications. Load cells are essential components used to measure weight or force, and understanding how to wire them correctly is crucial for accurate readings. This article will explore the process of wiring a single load cell to two readouts, the necessary components, and best practices to ensure reliable performance.

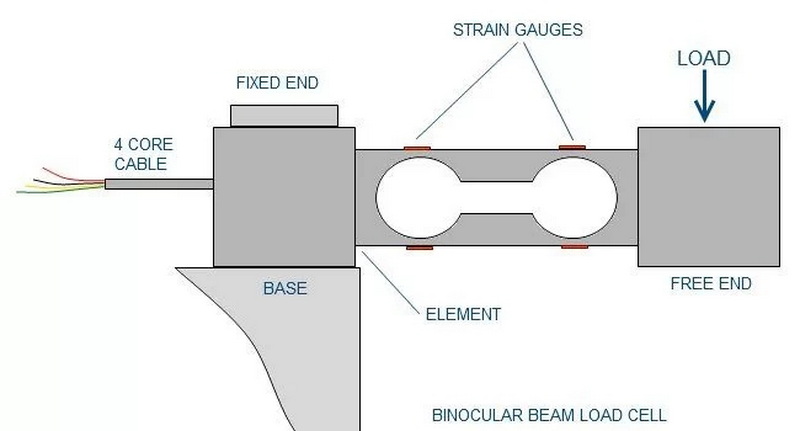

A load cell is a transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure the deformation of a material under load. When a load is applied, the strain gauges change resistance, producing a measurable electrical signal.
1. Load Cell: The primary sensor that measures the weight or force.
2. Readouts: Devices that display the measurements from the load cell.
3. Junction Box: A device that connects multiple load cells and manages their signals.
4. Amplifier: Enhances the weak signal from the load cell for better readability.
5. Wiring: Proper cables to connect the load cell to the readouts.
To wire one load cell into two readouts, follow these steps:
1.Identify the Load Cell Wires: Typically, a load cell has four wires: two for excitation (power) and two for the signal output. The color coding may vary, but commonly:
◆ Red: Excitation +
◆ Black: Excitation -
◆ Green: Signal +
◆ White: Signal -
2.Connect the Excitation Wires: Connect the red wire to the positive power supply and the black wire to the negative power supply. This powers the load cell.
3.Split the Signal Wires: Connect the green and white signal wires to both readouts. This can be done using a junction box, which allows for a clean and organized connection.
4.Calibration: After wiring, calibrate the load cell to ensure accurate readings. This involves applying known weights and adjusting the readouts accordingly.
◆ Use Quality Cables: Ensure that the cables used are of high quality to prevent signal loss.
◆ Avoid Interference: Keep the load cell wiring away from high-voltage lines to avoid electromagnetic interference.
◆ Secure Connections: Make sure all connections are tight and secure to prevent any signal disruptions.
◆ Regular Maintenance: Periodically check the wiring and connections for wear and tear.
1. Inconsistent Readings: This may be due to loose connections or interference. Check all connections and ensure they are secure.
2. No Signal: If there is no output from the load cell, verify the power supply and check for any breaks in the wiring.
3. Calibration Errors: If the readings are not accurate, recalibrate the load cell using known weights.
Wiring a single load cell into two readouts is a straightforward process that can enhance measurement capabilities in various applications. By following the proper wiring techniques and best practices, users can ensure accurate and reliable performance from their load cell systems.
Yes, multiple load cells can be wired to a single readout using a junction box to sum their signals.
A junction box connects multiple load cells and manages their signals, allowing for easier wiring and signal processing.
Calibration involves applying known weights to the load cell and adjusting the readout until it matches the applied weight.
Check the wiring connections, ensure the power supply is functioning, and verify that the load cell is not damaged.
While load cells are typically wired in parallel, it is possible to wire them in series for specific applications, but this requires careful consideration of the load cell specifications.
This article provides a comprehensive overview of wiring a load cell into two readouts, ensuring that users have the necessary information to implement this effectively. For visual learners, including diagrams and images throughout the article can enhance understanding and retention of the material.
