Load cells are essential devices used in various industries to measure force or weight. They convert mechanical force into an electrical signal, which can then be measured and standardized. A common question that arises is whether load cells contain batteries. This article will explore the functionality of load cells, their types, applications, and whether they require batteries for operation.

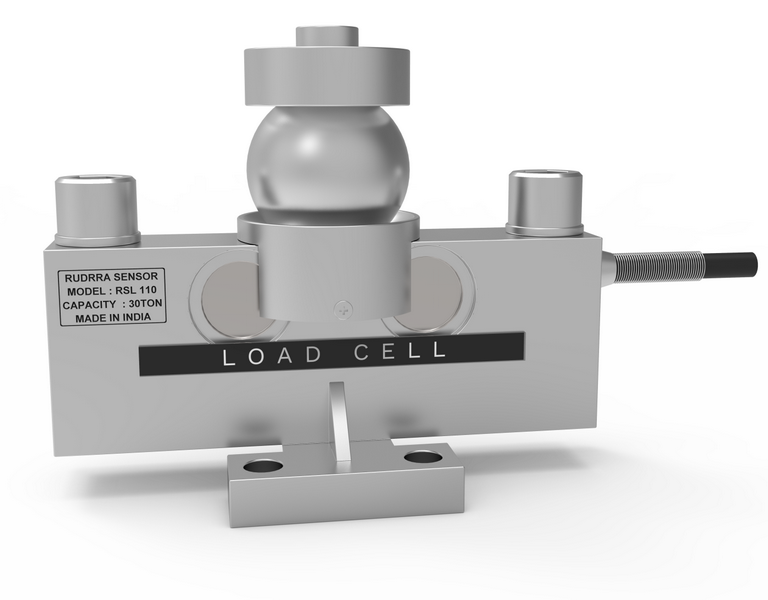

A load cell is a type of transducer that converts a force into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges to measure deformation caused by an applied load. When a load is applied, the strain gauge deforms, changing its electrical resistance. This change is then converted into a measurable electrical signal.

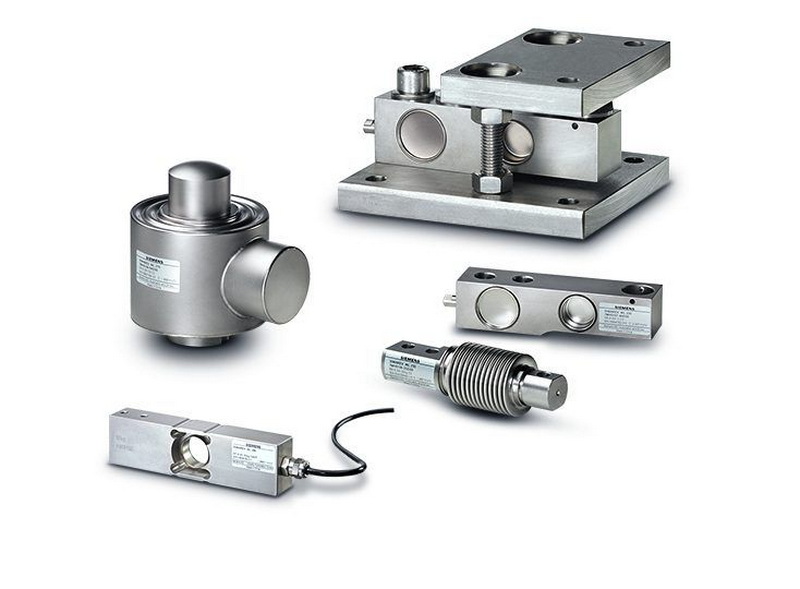

1. Strain Gauge Load Cells: These are the most widely used load cells. They consist of a metal element that deforms under load, with strain gauges attached to measure this deformation.
2. Hydraulic Load Cells: These use fluid pressure to measure force. When a load is applied, it compresses a fluid-filled chamber, and the pressure change is measured.
3. Pneumatic Load Cells: Similar to hydraulic load cells, but they use air pressure instead of liquid. They are often used in environments where electrical components may pose a risk.
4. Capacitive Load Cells: These measure changes in capacitance caused by the deformation of a dielectric material under load.
5. Tension Load Cells: Specifically designed to measure pulling forces, these load cells are often used in applications like crane scales.
Most load cells do not contain batteries. They are typically powered by an external source, such as a power supply or a signal conditioning unit. The electrical signal generated by the load cell is usually very small and requires amplification before it can be accurately measured.
However, some portable load cell systems may incorporate batteries to power the signal conditioning and data acquisition systems. In these cases, the load cell itself does not contain a battery, but the overall system may rely on battery power for operation.
Load cells are used in a wide range of applications, including:
◆ Industrial Weighing: Load cells are commonly used in scales for weighing products in manufacturing and shipping.
◆ Material Testing: They are used in laboratories to test the strength and durability of materials.
◆ Aerospace: Load cells are used in aircraft to measure forces during testing and operation.
◆ Automotive: In the automotive industry, load cells are used for crash testing and vehicle dynamics testing.
Calibration is crucial for ensuring the accuracy of load cells. It involves applying known weights to the load cell and adjusting the output signal to match the expected values. Regular calibration is necessary to maintain accuracy, especially in critical applications.
Maintaining load cells is essential for their longevity and accuracy. Regular inspections should be conducted to check for signs of wear or damage. Additionally, load cells should be kept clean and free from contaminants that could affect their performance.
In summary, load cells are vital components in various industries, converting mechanical force into electrical signals for measurement. While most load cells do not contain batteries, some portable systems may use battery power for their operation. Understanding the types, applications, and maintenance of load cells is essential for anyone working with these devices.
A load cell measures force or weight by converting mechanical force into an electrical signal.
Common types include strain gauge, hydraulic, pneumatic, capacitive, and tension load cells.
Most load cells do not contain batteries; they are powered by an external source.
Load cells should be calibrated regularly, especially in critical applications, to ensure accuracy.
Load cells are used in industrial weighing, material testing, aerospace, and automotive industries.
This article provides a comprehensive overview of load cells, their functionality, and their applications, ensuring a clear understanding of this essential technology.
