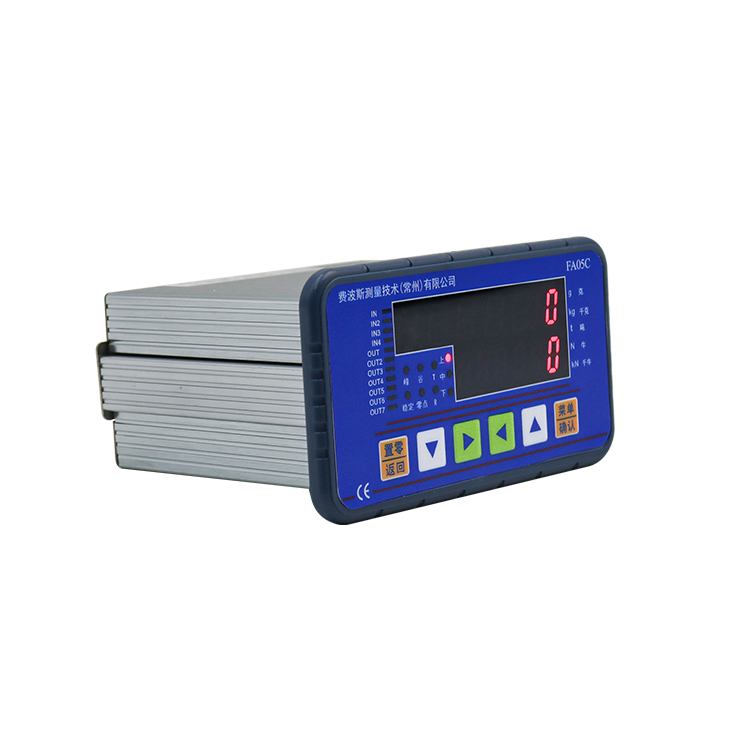

FA05C
FIBOS
High-precision display instrument Function Feature |
This controller is compact, highly accurate and fast, making it suitable for a wide range of industrial applications requiring weighing and force measurement.
Analogue output signals include 4–20 mA and ±10 V
Communication interfaces support RS-485 and RS-232, with standard Modbus protocol support.
The controller features upper, middle and lower limit detection functions.
Limit outputs offer three modes: over-limit, under-limit and upper/lower limit detection.

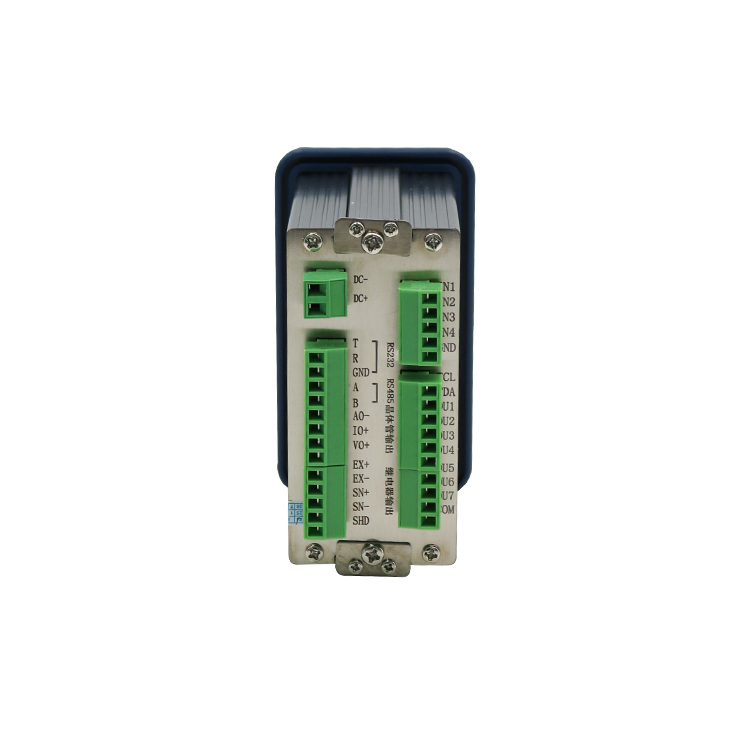

I/O configuration comprises 4 inputs and 7 outputs, including 4 transistor outputs and 3 relay outputs; input and output functions are customisable
Multi-point calibration and linearity correction are supported
The controller is powered by a 24 V DC supply with a voltage tolerance of ±5 V, ensuring enhanced safety and stability

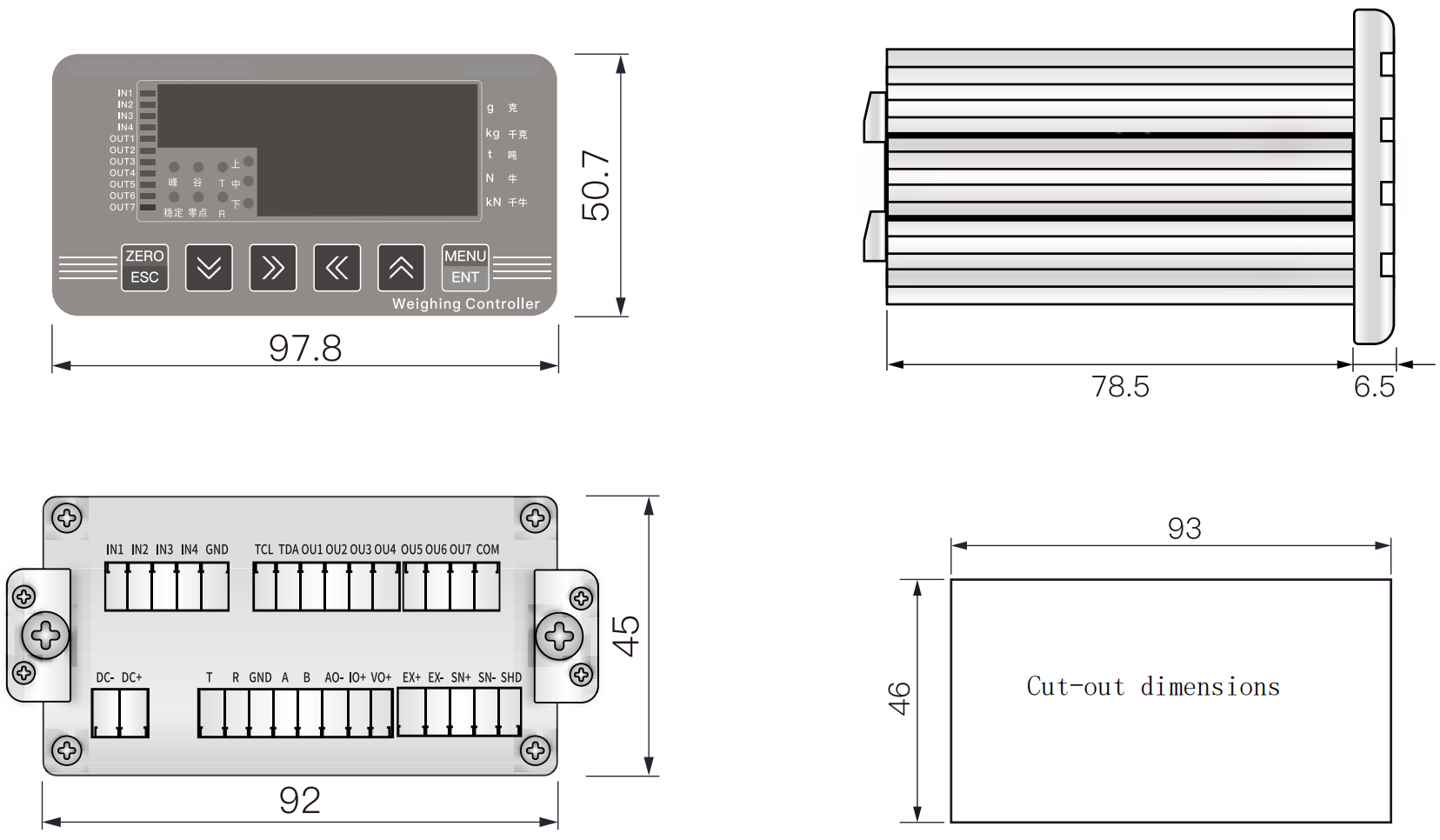

High-precision display instrument Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |
High-precision display instrument Specifications |
Specifications | Technique |

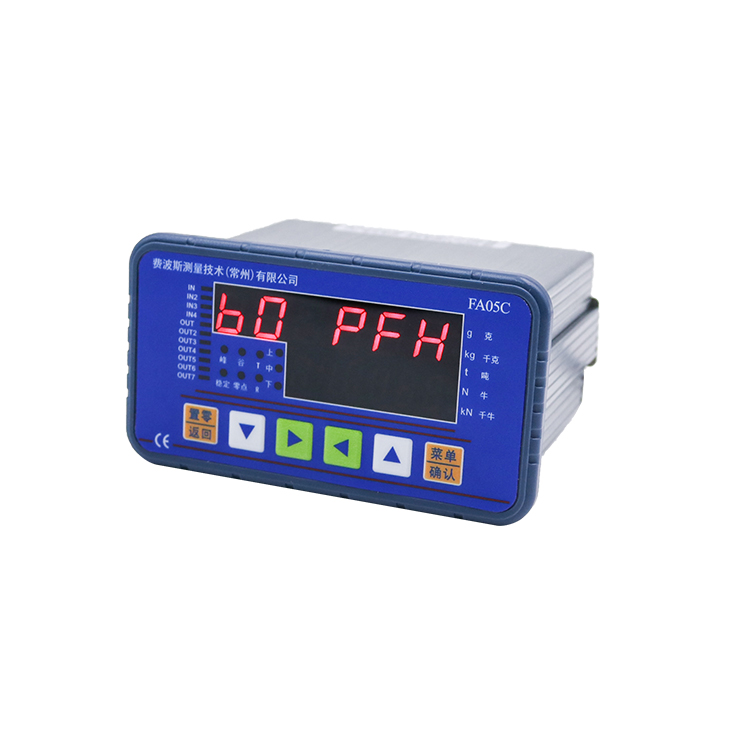

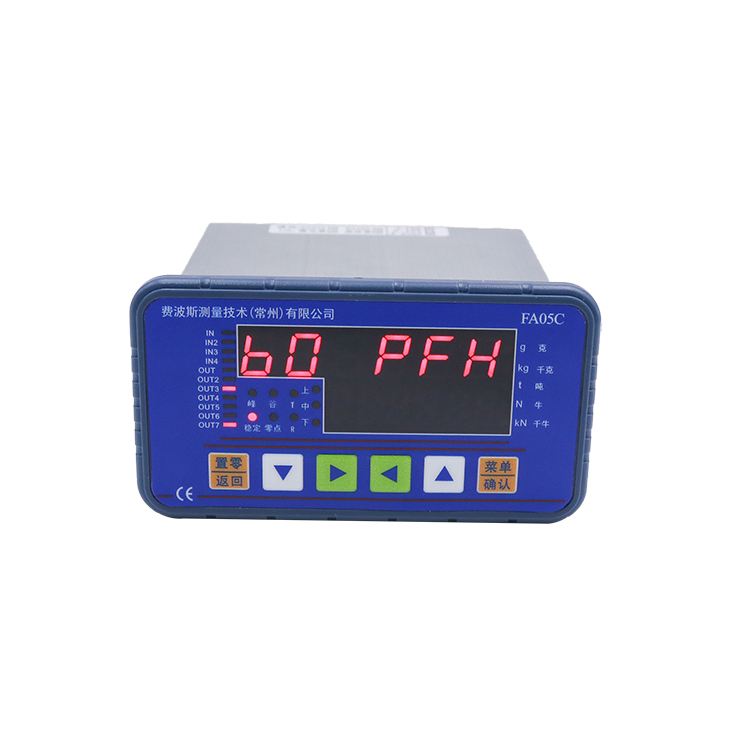

| Display | Dual-row LED display |
| Readability | 1/900000 |
| Division value | 1,2,5,10,20,50 |
| Nonlinear error | ≤0.002%FS |
| A/D Conversion speed | ≤3200t/s |
| Maximum signal inputrange | -30mV~+30mV(-6mV/V~+6mV/V) |
| Inputload | 4 x 350 Ω sensors |
| Analog Output specification | ±10V/0~10V/4~20mA |
| Com.Output specification | RS232/RS485 |
| Output specification(1/O) | Relay/Transistor |
| Temp.effect on output | ≤10ppm/°C |
| Temp.effect on zero | ≤10uV/°C |
| Excitation voltage | 5VDC |
| Power supply | 24V±5V |
| Power waste | ≤10W |
| Operation temp. range | -10~50°C |
| Humidity range | ≤90% relative humidity (no condensation) |
| Switching value output(contact)capacity | 3-channel relay output capacity: AC 220 V, 1 A 4-channel transistor output capacity: DC 24 V, 0.5 A |
Load Cell Styling Suggestions |
 |
Force sensor manufacturing process |
Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: It is a high-precision industrial control instrument for weighing, force measurement, and process control in industrial sites.
A: 1/90000 readability, ≤0.002%FS nonlinear error, and up to 3200 times/sec A/D conversion speed for ultra-accurate, real-time measurement.
A: It supports both RS232 and RS485 interfaces, fully compatible with the standard Modbus protocol for easy system integration.
A: Multiple analog outputs (4-20mA, ±10V, 0~10V), plus 4 transistor outputs, 3 relay outputs, and customizable I/O ports.
A: Yes, it supports connection of up to 4×350Ω sensors, suitable for multi-sensor weighing systems.
A: Yes, it has upper/lower limit judgment with 3 output modes (over, under, over/under) for process control and alarm functions.
A: 24V±5V DC wide voltage input, with 5V pressure-resistant excitation for safe and stable operation.
