Load cells are essential components in various industries, providing accurate measurements of force, weight, and pressure. They are widely used in applications ranging from industrial scales to medical devices. Understanding load cell tolerances is crucial for ensuring the accuracy and reliability of measurements. Tolerances refer to the permissible limits of variation in a physical property, in this case, the output of a load cell. This article delves into the intricacies of load cell tolerances, their significance, and how to determine them effectively.
Load cell tolerances define the acceptable range of error in the measurements provided by the load cell. These tolerances are influenced by several factors, including the type of load cell, environmental conditions, and the specific application for which the load cell is used.
1. Type of Load Cell: Different load cells have varying tolerances based on their design and application. For instance, strain gauge load cells typically have tighter tolerances compared to hydraulic load cells.
2. Environmental Conditions: Temperature, humidity, and pressure can affect the performance of load cells. Extreme conditions may lead to deviations in measurements.
3. Calibration: Regular calibration is essential to maintain the accuracy of load cells. Without proper calibration, the tolerances may widen, leading to inaccurate readings.

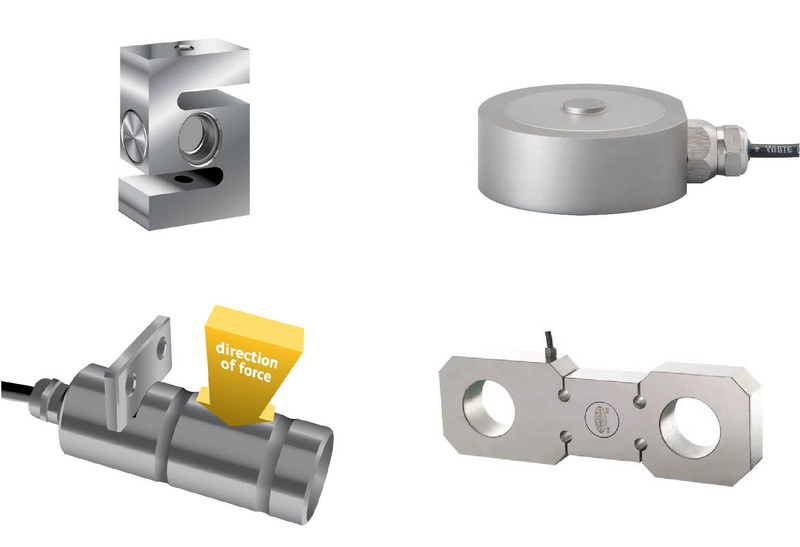

Load cells can be categorized into several types, each with its own set of tolerances:
These are the most common type of load cells, known for their high accuracy and reliability. They typically have tolerances of ±0.03% of the full scale.
Hydraulic load cells use fluid pressure to measure weight. Their tolerances can vary significantly, often around ±0.5% of the full scale.
Pneumatic load cells operate using air pressure. They generally have wider tolerances, often around ±1% of the full scale.
Calculating load cell tolerances involves understanding the specifications provided by the manufacturer. Here’s a step-by-step guide:
1. Identify the Load Cell Capacity: Determine the maximum load the load cell can measure.
2. Refer to Manufacturer Specifications: Check the tolerance specifications provided in the load cell datasheet.
3. Calculate the Tolerance: Use the formula:
For example, if a load cell has a full scale of 1000 kg and a tolerance of ±0.03%, the tolerance would be:
Tolerance=1000×0.0003=0.3 kgTolerance=1000×0.0003=0.3 kg
Calibration is the process of adjusting the load cell to ensure its output is accurate. Regular calibration is vital for maintaining the specified tolerances.
◆ Frequency: Load cells should be calibrated at least once a year, or more frequently if used in critical applications.
◆ Methods: Calibration can be performed using reference weights or specialized calibration equipment.
Testing load cells is essential to ensure they meet the specified tolerances. Common testing methods include:
1. Static Testing: Applying known weights to the load cell and comparing the output.
2. Dynamic Testing: Assessing the load cell's response to changing loads.
3. Environmental Testing: Evaluating the load cell's performance under various environmental conditions.
Load cells are utilized in numerous industries, including:
◆ Manufacturing: For weighing raw materials and finished products.
◆ Healthcare: In medical scales for accurate patient weight measurement.
◆ Transportation: For weighing cargo and ensuring compliance with regulations.
1. Industrial Weighing: A manufacturing plant implemented load cells to monitor material usage, resulting in a 10% reduction in waste.
2. Medical Applications: Hospitals use load cells in patient scales, ensuring accurate weight measurements critical for medication dosing.
Understanding load cell tolerances is essential for ensuring accurate measurements in various applications. By recognizing the factors that influence tolerances, regularly calibrating load cells, and adhering to testing procedures, industries can maintain the reliability and accuracy of their measurements.
Common types include strain gauge, hydraulic, and pneumatic load cells, each with unique characteristics and tolerances.
Load cells should be calibrated at least once a year, or more frequently for critical applications.
Factors include environmental conditions, type of load cell, and calibration frequency.
Consider the required accuracy, load capacity, environmental conditions, and specific application needs.
Failure to adhere to tolerances can lead to inaccurate measurements, resulting in financial losses, safety hazards, and compliance issues.
