A load cell is a transducer that converts a mechanical force into an electrical signal. This conversion allows for the measurement of weight or force applied to the load cell. Load cells are widely used in scales, industrial weighing systems, and various applications where precise measurements are required.
There are several types of load cells, each designed for specific applications:

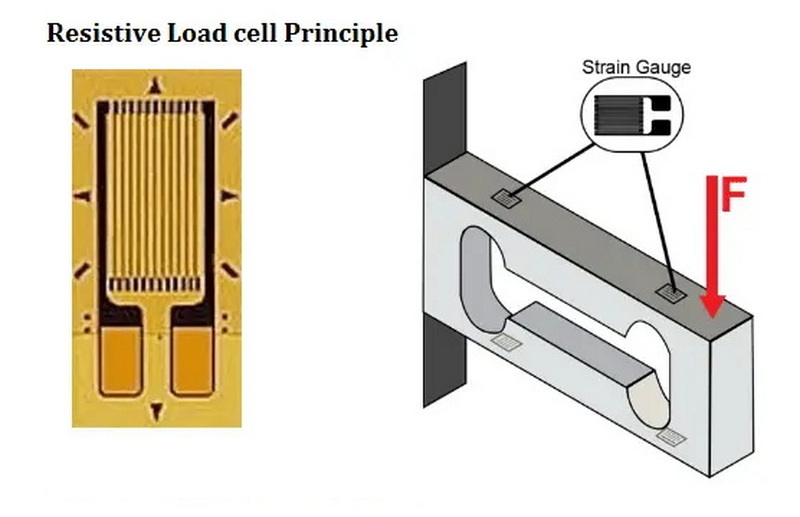

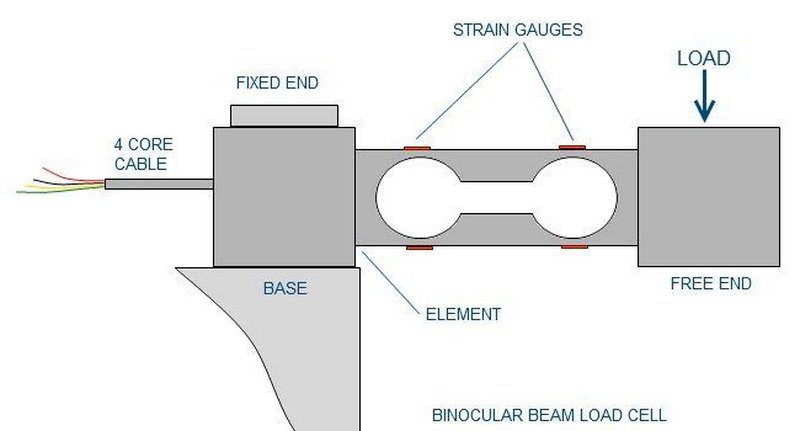

1. Strain Gauge Load Cells: These are the most common type, using strain gauges to measure deformation caused by applied force.
2. Hydraulic Load Cells: These use fluid pressure to measure force and are often used in heavy-duty applications.
3. Pneumatic Load Cells: Similar to hydraulic cells but use air pressure, suitable for lighter loads.
4. S-Beam Load Cells: These are versatile and can measure tension and compression forces.
Resolution refers to the smallest change in weight or force that a load cell can detect. It is a critical parameter that affects the accuracy and performance of the load cell in various applications. The resolution of a load cell is influenced by several factors, including:
◆ Load Cell Capacity: The maximum weight the load cell can measure.
◆ Number of Divisions: The number of discrete steps in the load cell's output signal.
◆ Output Signal: The electrical signal generated by the load cell in response to an applied load.
The resolution of a load cell is vital for applications requiring high precision. For instance, in laboratory settings, even a slight variation in weight can lead to significant errors in experiments. Similarly, in industrial applications, accurate measurements are crucial for quality control and compliance with regulations.
To calculate the resolution of a load cell, you can use the following formula:
Resolution=Load Cell CapacityNumber of DivisionsResolution=Number of DivisionsLoad Cell Capacity
1. Determine Load Cell Capacity: Identify the maximum load the load cell can measure. For example, if a load cell has a capacity of 1000 kg, this is your starting point.
2. Identify the Number of Divisions: This is often specified by the manufacturer. For instance, if the load cell provides an output of 1 mV/V and the analog-to-digital converter (ADC) has a resolution of 16 bits, the number of divisions can be calculated as follows:
◆ The maximum output voltage of the load cell is typically 10 mV for a full-scale load.
◆ The ADC can represent 216=65536216=65536 discrete values.
3. Calculate the Resolution: Using the formula mentioned above, if the load cell capacity is 1000 kg and the number of divisions is 65536, the resolution would be:
This means the load cell can detect changes as small as 15.3 grams.
Let’s consider a practical example. Suppose you have a load cell with a capacity of 500 kg and it has 32768 divisions. The resolution can be calculated as follows:
This indicates that the load cell can measure changes as small as 15.3 grams.
Several factors can influence the resolution of a load cell:
1. Temperature: Load cells can be affected by temperature changes, which may lead to drift in measurements. It is essential to calibrate load cells regularly to maintain accuracy.
2. Mechanical Stress: Overloading a load cell can cause permanent deformation, affecting its resolution. Always ensure that the load applied does not exceed the specified capacity.
3. Electrical Noise: Interference from electrical devices can affect the output signal of the load cell. Using proper shielding and grounding techniques can help mitigate this issue.
4. Calibration: Regular calibration is crucial for maintaining the accuracy and resolution of load cells. Calibration should be performed using certified weights to ensure reliability.
Understanding and calculating load cell resolution is essential in various fields:
◆ Industrial Weighing: In manufacturing, precise weight measurements are crucial for quality control and inventory management.
◆ Laboratory Research: In scientific experiments, accurate measurements can significantly impact results and conclusions.
◆ Medical Devices: Load cells are used in medical scales and devices, where precision is critical for patient care.
The design and construction of a load cell can significantly impact its resolution. For instance, load cells made from high-quality materials with precise manufacturing processes tend to have better resolution. The geometry of the load cell also plays a role; for example, a load cell designed to minimize deflection under load will generally provide more accurate measurements.
Signal conditioning is the process of manipulating an analog signal to prepare it for the next stage of processing. In load cells, this often involves amplifying the signal and filtering out noise. Proper signal conditioning can enhance the effective resolution of a load cell by ensuring that the output signal is as clean and accurate as possible.
Environmental conditions such as humidity, vibration, and electromagnetic interference can affect load cell performance. For instance, high humidity can lead to condensation on the load cell, affecting its readings. Similarly, vibrations from nearby machinery can introduce noise into the measurements. It is essential to consider these factors when installing load cells in industrial environments.
Digital load cells often provide higher resolution than their analog counterparts. This is because digital load cells can process signals more effectively, allowing for finer measurements. Additionally, digital load cells can incorporate advanced features such as built-in diagnostics and self-calibration, further enhancing their performance.
In conclusion, understanding how to work out the resolution of a load cell is vital for ensuring accurate measurements in various applications. By following the steps outlined in this article, you can effectively calculate the resolution and appreciate the factors that influence it. Regular calibration and maintenance are essential to maintain the performance and reliability of load cells.
Accuracy refers to how close a measured value is to the true value, while resolution is the smallest change in weight or force that a load cell can detect. A load cell can have high resolution but low accuracy if it is not calibrated correctly.
Load cells should be calibrated regularly, typically at least once a year, or more frequently if they are used in critical applications or subjected to harsh conditions.
Yes, temperature changes can affect load cell performance by causing drift in measurements. It is essential to account for temperature effects during calibration and operation.
Load cells are commonly used in industrial weighing, laboratory research, medical devices, and any application requiring precise measurement of force or weight.
To improve the resolution of a load cell, ensure proper calibration, minimize environmental interference, use high-quality materials, and consider using digital load cells for enhanced performance.
