Piezoelectric load cells are essential devices in various industries, providing precise measurements of force and weight. Their ability to convert mechanical stress into electrical signals makes them invaluable in applications requiring high accuracy. This article explores the accuracy of piezoelectric load cells, their working principles, applications, advantages, and future trends.

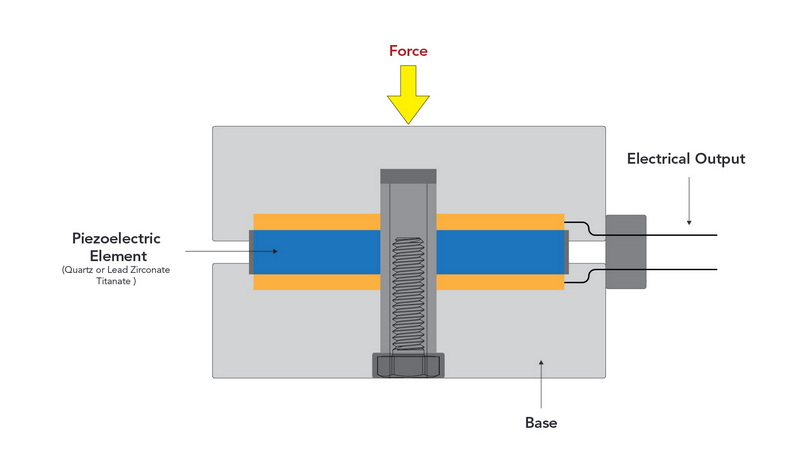

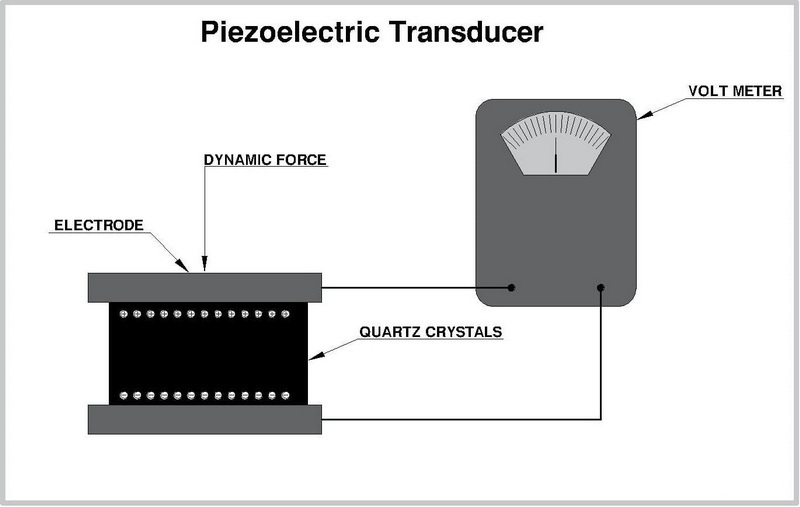

Piezoelectric load cells operate on the principle of piezoelectricity, where certain materials generate an electrical charge in response to applied mechanical stress. These load cells consist of a piezoelectric element, typically made from materials like quartz or ceramics, which deforms under load, producing an electrical signal proportional to the force applied.
The main components of a piezoelectric load cell include:
- Piezoelectric Element: The core component that generates electrical signals.
- Housing: Protects the piezoelectric element and provides structural integrity.
- Electrical Connections: Transmit the generated signals to measurement systems.

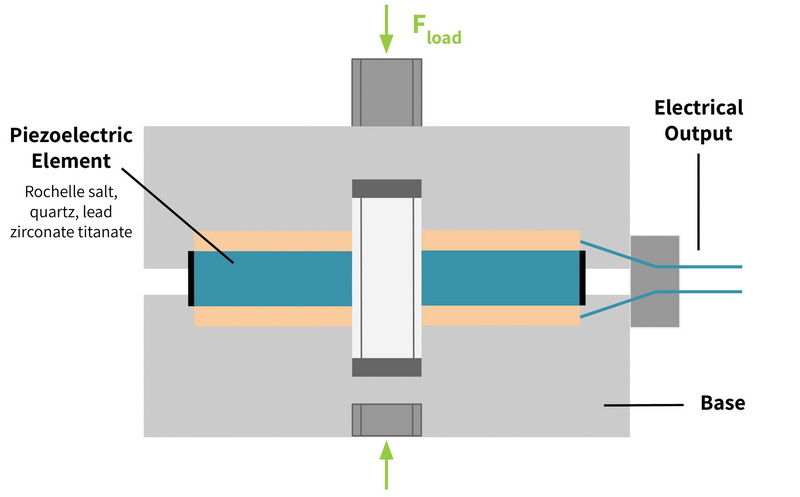

Different types of piezoelectric materials, such as Rochelle salt, quartz, and lead zirconate titanate, are used based on the specific application requirements.
The accuracy of piezoelectric load cells is influenced by several factors, including:
- Material Properties: The choice of piezoelectric material affects sensitivity and response time.
- Calibration: Regular calibration is essential to maintain accuracy, as it establishes a linear relationship between the applied force and the electrical output.
- Environmental Conditions: Temperature, humidity, and other environmental factors can impact performance.
When compared to other types of load cells, such as strain gauge load cells, piezoelectric load cells excel in dynamic applications due to their fast response times. However, they may be less accurate in static measurements.
Calibration methods for piezoelectric load cells typically involve applying known weights and adjusting the output signal accordingly. This process ensures that the load cell provides accurate readings across its operational range.
Piezoelectric load cells are widely used in various fields, including:
- Industrial Applications: They are employed in manufacturing processes for quality control and monitoring.
- Scientific Research: Researchers utilize these load cells for experiments requiring precise force measurements.
- Medical Devices: In the medical field, piezoelectric load cells are used in devices like surgical instruments and patient monitoring systems.
Their versatility makes them suitable for both dynamic and quasi-static force measurements.
The benefits of piezoelectric load cells include:
- High Sensitivity and Fast Response Time: They can detect minute changes in force almost instantaneously, making them ideal for dynamic measurements.
- Durability and Reliability: These load cells are robust and can withstand harsh conditions, ensuring long-term performance.
- Compact Design: Their small size allows for easy integration into various systems without requiring significant space.
Despite their advantages, piezoelectric load cells face certain challenges:
- Sensitivity to Environmental Conditions: They can be affected by temperature fluctuations and humidity, which may require additional compensation measures.
- Need for Regular Calibration: To maintain accuracy, these load cells must be calibrated periodically, which can be time-consuming.
- Cost Considerations: High-quality piezoelectric load cells can be more expensive than other types, which may limit their use in budget-sensitive applications.
The future of piezoelectric load cells looks promising, with several trends emerging:
- Innovations in Materials and Design: Research is ongoing to develop new piezoelectric materials that offer improved performance and durability.
- Integration with IoT and Smart Technologies: As industries move towards automation, piezoelectric load cells are being integrated into smart systems for real-time monitoring and data analysis.
- Potential New Applications: The versatility of piezoelectric load cells opens up possibilities for new applications in fields like robotics and aerospace.
Piezoelectric load cells are crucial for accurate force measurement in various applications. Their unique properties, including high sensitivity and fast response times, make them ideal for dynamic measurements. However, challenges such as environmental sensitivity and the need for regular calibration must be addressed to ensure optimal performance. As technology advances, the future of piezoelectric load cells will likely see further innovations and expanded applications.
Piezoelectric load cells can achieve accuracies of up to 0.1% of full scale, depending on the design and calibration.
Calibration involves applying known weights to the load cell and adjusting the output signal to ensure accurate readings across its operational range.
They are used in industrial manufacturing, scientific research, and medical devices, among other fields.
Piezoelectric load cells are better suited for dynamic measurements, while strain gauge load cells excel in static applications.
Environmental conditions, material properties, and calibration practices can all influence the performance and accuracy of piezoelectric load cells.
