Single point load cells are widely utilized in various industries for their ability to deliver precise weight measurements. This article explores the accuracy of single point load cells, their working principles, advantages, applications, and more.

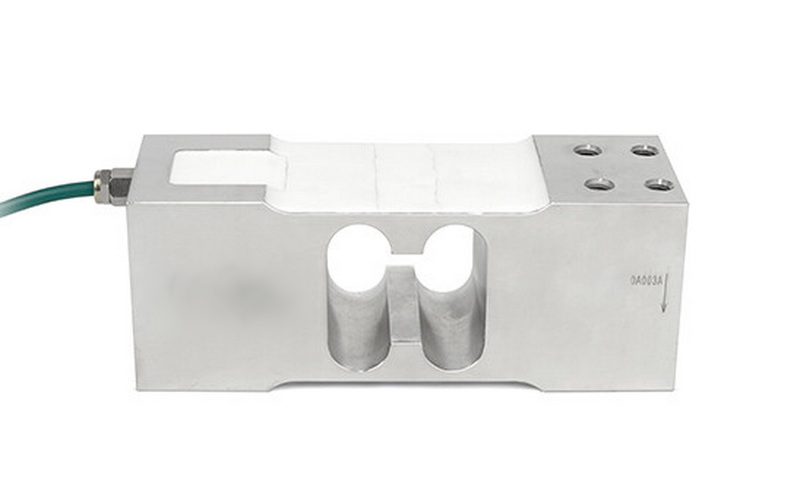

A single point load cell is a type of load cell designed to measure weight at a single application point. This design allows them to provide accurate readings even when the load is unevenly distributed across the scale platform. They are commonly used in small to medium-sized platform scales, making them a popular choice in both industrial and commercial settings.
Single point load cells operate based on the principle of strain gauges. When a load is applied, the load cell deforms slightly, and the strain gauges detect this deformation. The change in resistance from the strain gauges is converted into an electrical signal that correlates with the weight applied. This mechanism allows for high accuracy in measurements, typically within a range of 0.05% to 0.025% depending on the model and manufacturer.
- High Accuracy: They can maintain accuracy even with off-center loads, making them suitable for various applications.
- Compact Design: Their small size allows for easy installation in tight spaces.
- Cost-Effective: They eliminate the need for multiple load cells in larger scales, reducing overall costs.
- Easy Calibration: Many single point load cells come pre-calibrated, simplifying setup.
- Durability: Constructed from materials like stainless steel or aluminum, they are robust and can withstand harsh environments.
Single point load cells find applications across numerous industries:
- Industrial Weighing: Used in manufacturing and production lines for accurate weight measurements.
- Retail Scales: Commonly found in grocery stores and markets where products are weighed at checkout counters.
- Medical Devices: Used in scales for weighing patients or medications due to their precision.
- Packaging Systems: Essential in automated packaging lines to ensure products are accurately weighed before packaging.
- Food Industry: These load cells are crucial in food processing and packaging to ensure compliance with weight regulations and quality control standards.
- Laboratories: In research settings, precise measurements are vital; single point load cells help achieve this by providing accurate weight data for experiments and formulations.
The accuracy of a single point load cell can be influenced by several factors:
- Load Distribution: The ability to measure accurately despite uneven loads is a significant advantage. Unlike traditional load cells that require precise alignment, single point load cells accommodate off-center loads effectively.
- Environmental Conditions: Factors such as temperature fluctuations and humidity can affect performance. Many modern single point load cells are designed with environmental protection ratings (like IP67) to ensure reliability under various conditions. For instance, a temperature change can cause expansion or contraction of materials within the load cell, potentially affecting readings if not compensated for properly.
- Calibration and Maintenance: Regular calibration is essential for maintaining accuracy over time. While many units come pre-calibrated, periodic checks are recommended to ensure continued precision. Calibration should be performed using certified weights to guarantee that the readings remain consistent over time.
Single point load cells vary in specifications based on their intended usage:
- Capacity Range: Typically from a few grams up to several tons. For example, some models may handle loads as light as 1 kg while others can measure up to 10 tons or more.
- Accuracy Classes: Available in different classes (e.g., C3, C4) depending on application requirements. Higher accuracy classes indicate better performance under specified conditions.
- Protection Ratings: Many models feature protection against dust and moisture (e.g., IP65 or IP67), which is crucial for applications in harsh environments such as factories or outdoor settings.
Proper installation of single point load cells is critical for achieving accurate measurements:
1. Mounting Surface: Ensure that the surface where the load cell is mounted is stable and level to prevent any misalignment that could affect readings.
2. Alignment: Correct alignment during installation helps maintain accuracy. Misalignment can lead to errors in weight measurement, especially with off-center loads.
3. Wiring and Connections: Proper wiring is essential for signal integrity. Ensure that all connections are secure and free from interference that could distort readings.
4. Environmental Protection: If operating in harsh conditions, consider additional protective measures such as enclosures or shielding against moisture and dust ingress.
To ensure that single point load cells perform accurately:
- Load Testing: Conduct tests using known weights to verify that the output corresponds accurately to the applied weight.
- Temperature Testing: Assess how temperature variations impact performance by testing under different thermal conditions.
- Long-Term Stability Tests: Monitor performance over extended periods to identify any drift or changes in accuracy due to wear or environmental factors.
As technology advances, single point load cells are evolving:
- Smart Load Cells: Integration with IoT technology allows real-time monitoring and data collection, enhancing operational efficiency.
- Improved Materials: The use of advanced materials can increase durability and sensitivity while reducing size.
- Enhanced Calibration Techniques: Automated calibration systems may emerge, allowing for quicker adjustments without manual intervention.
In conclusion, single point load cells offer high accuracy and versatility for various weighing applications. Their unique design allows them to provide precise measurements even under challenging conditions, making them ideal for both industrial and commercial uses. With ongoing advancements in technology, single point load cells continue to evolve, ensuring they meet the demands of modern weighing solutions while maintaining their reputation for reliability and precision.
A single point load cell is a sensor that measures weight at a single application point, allowing it to provide accurate readings even if the weight is unevenly distributed across the scale platform.
They work by using strain gauges that detect deformation when a weight is applied. This deformation changes the resistance of the gauges, which is converted into an electrical signal proportional to the weight.
They are commonly used in industrial weighing systems, retail scales, medical devices, automated packaging lines, food processing industries, and laboratories due to their high accuracy and compact design.
Single point load cells can achieve accuracies ranging from 0.05% to 0.025%, depending on the specific model and its calibration.
Yes, while many come pre-calibrated from the manufacturer, regular calibration is recommended to maintain accuracy over time.
