Beam type load cells are essential devices used in various industries for measuring weight and force. They convert mechanical force into an electrical signal, allowing for precise weight measurements. This article explores the workings of beam type load cells, their types, applications, advantages, installation, and future trends.
Beam type load cells operate on the principle of strain measurement. When a load is applied to the load cell, the beam deforms slightly. This deformation creates a strain that is detected by strain gauges attached to the beam. The strain gauges convert this mechanical deformation into an electrical signal, which can be measured and interpreted.
The basic components of a beam type load cell include:
- Beam Structure: Typically made of metal, the beam is designed to flex under load.
- Strain Gauges: These are sensors that measure the amount of deformation in the beam.
- Electrical Circuit: Converts the strain measurements into a readable output.
There are primarily two types of beam type load cells: shear beam load cells and bending beam load cells.

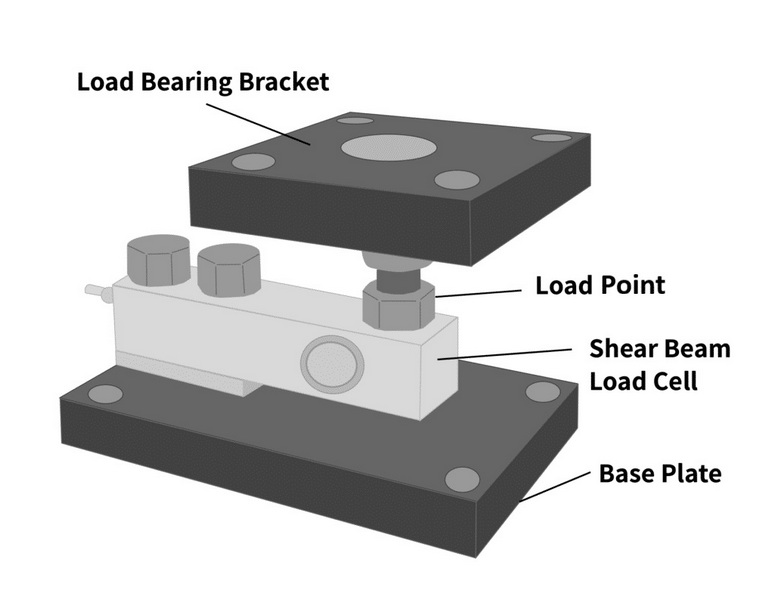

- Shear Beam Load Cells: These are designed to measure shear forces. When a load is applied, the beam deforms, creating shear strain that the strain gauges detect. They are commonly used in medium to high-capacity weighing applications.
- Bending Beam Load Cells: These load cells measure bending moments. They are simpler in design and are often used in applications requiring lower capacities.
Comparison of Different Types:
| Type | Application | Capacity Range |
|---------------------|---------------------|------------------|
| Shear Beam | Industrial scales | Medium to High |
| Bending Beam | General weighing | Low to Medium |
Beam type load cells are widely used in various sectors:
- Industrial Applications: They are crucial in manufacturing processes, where accurate weight measurements are necessary for quality control.
- Commercial Applications: Retail scales utilize beam type load cells for weighing products accurately.
Beam type load cells offer several advantages:
- Accuracy and Reliability: They provide precise measurements, which are essential in industrial settings.
- Versatility: These load cells can be used in various applications, from small retail scales to large industrial weighing systems.
Proper installation and calibration are critical for the accurate functioning of beam type load cells. The installation process involves:
1. Mounting the Load Cell: Ensure it is securely attached to the weighing platform.
2. Connecting Electrical Components: Properly connect the strain gauges to the electrical circuit.
3. Calibration: This involves applying known weights to the load cell and adjusting the output to match the expected values.
While beam type load cells are reliable, several factors can affect their performance:
- Environmental Factors: Temperature changes, humidity, and vibrations can impact accuracy.
- Maintenance: Regular checks and maintenance are necessary to ensure longevity and performance.
The future of load cell technology looks promising with advancements in design and functionality. Innovations such as wireless load cells and smart sensors are becoming more prevalent, allowing for real-time monitoring and data collection.
Beam type load cells are vital components in weight measurement systems across various industries. Their ability to convert mechanical force into electrical signals makes them indispensable for accurate and reliable measurements. As technology advances, the capabilities and applications of beam type load cells will continue to expand.
A beam type load cell is a device that measures weight or force by converting mechanical strain into an electrical signal.
Strain gauges measure the deformation of the load cell beam when a load is applied, converting this deformation into an electrical signal.
They are commonly used in industrial weighing systems, retail scales, and various manufacturing processes.
Installation involves securely mounting the load cell, connecting the electrical components, and calibrating it with known weights.
Environmental conditions such as temperature, humidity, and vibrations can impact the performance and accuracy of load cells.
