In the rapidly evolving fields of robotics and aerospace, precision measurement is paramount. The introduction of 6 Degrees of Freedom (6 DoF) load cells has significantly transformed how forces and torques are measured in these industries. Unlike traditional load cells that measure force in a single direction, 6 DoF load cells can simultaneously measure forces and moments along three axes, providing a comprehensive understanding of the mechanical interactions at play. This article explores the significance of 6 DoF load cells, their applications, advantages, challenges, and future trends, highlighting their revolutionary impact on precision measurement.

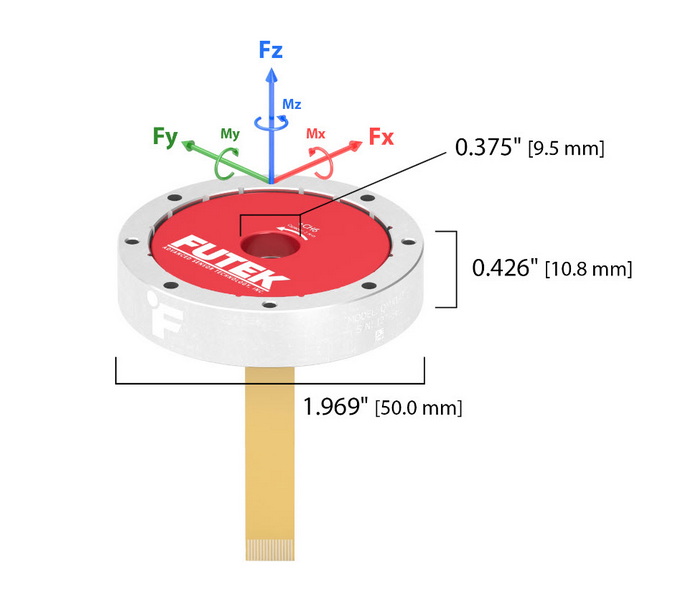

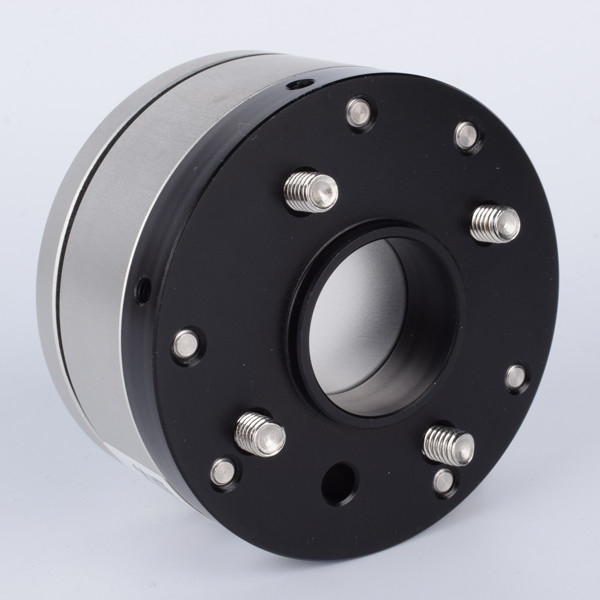

6 DoF load cells are advanced sensors designed to measure forces and torques in three-dimensional space. They consist of multiple sensing elements that can detect forces acting along the X, Y, and Z axes, as well as moments (torques) around these axes. This capability allows for a more detailed analysis of mechanical systems, making them invaluable in applications where multi-directional forces are present.
The working principle of a 6 DoF load cell involves the use of strain gauges, which are bonded to a flexible structure. When forces are applied, the structure deforms, causing changes in the resistance of the strain gauges. These changes are then converted into electrical signals, which can be processed to determine the magnitude and direction of the applied forces and torques.
Traditional load cells typically measure force in a single direction, making them suitable for applications where forces are unidirectional. However, in complex systems such as robotic arms or aircraft components, forces can act in multiple directions simultaneously. This limitation of traditional load cells can lead to inaccurate measurements and insufficient data for analysis.
In contrast, 6 DoF load cells provide a holistic view of the forces and torques acting on a system. This capability is crucial for applications that require precise control and monitoring, such as robotic manipulation and aerospace testing.

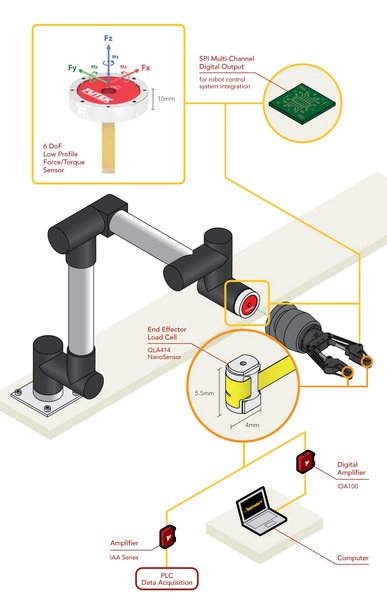

In the field of robotics, 6 DoF load cells play a critical role in testing and validating robotic systems. They are used to measure the forces exerted by robotic arms during tasks such as assembly, welding, and painting. By analyzing these forces, engineers can optimize the design and control algorithms of robots to improve their performance and reliability.
For instance, during the assembly of complex components, a robotic arm equipped with a 6 DoF load cell can provide real-time feedback on the forces being applied. This information allows for adjustments to be made on-the-fly, ensuring that components are assembled with the correct force and alignment.
The aerospace industry relies heavily on precision measurement for the testing and validation of aircraft components. 6 DoF load cells are used to measure the forces and torques acting on wings, fuselages, and other critical structures during wind tunnel testing and flight simulations. This data is essential for ensuring the safety and performance of aircraft.
For example, during a wind tunnel test, a 6 DoF load cell can measure the aerodynamic forces acting on a model aircraft. This information helps engineers understand how the aircraft will behave in real-world conditions, allowing for design improvements before full-scale production.
In biomechanical research, 6 DoF load cells are used to study human movement and the forces exerted during various activities. Researchers can analyze the forces acting on joints and limbs during walking, running, and other physical activities. This data is invaluable for developing rehabilitation protocols and improving athletic performance.
For instance, a 6 DoF load cell can be integrated into a treadmill to measure the forces exerted by a runner's feet. This information can help identify biomechanical inefficiencies and guide training programs to enhance performance and reduce the risk of injury.
The adoption of 6 DoF load cells offers several advantages over traditional measurement systems:
- Enhanced Accuracy and Precision: By measuring forces and torques in multiple directions, 6 DoF load cells provide a more accurate representation of the mechanical interactions within a system. This increased precision is crucial for applications where even minor discrepancies can lead to significant issues.
- Simultaneous Measurement: The ability to measure multiple forces and torques simultaneously allows for a comprehensive analysis of complex systems. This capability is particularly beneficial in robotics and aerospace, where interactions between components can be intricate.
- Customization Options: Many manufacturers offer customizable 6 DoF load cells tailored to specific applications. This flexibility ensures that engineers can select the right sensor for their unique requirements, enhancing the overall effectiveness of their measurement systems.
Despite their advantages, the implementation of 6 DoF load cells is not without challenges. Some of the key considerations include:
- Cost: 6 DoF load cells tend to be more expensive than traditional load cells due to their complexity and advanced technology. Organizations must weigh the benefits against the costs when deciding to implement these sensors.
- Calibration: Proper calibration is essential for accurate measurements. The complexity of 6 DoF load cells requires careful calibration procedures to ensure that the sensors provide reliable data.
- Integration: Integrating 6 DoF load cells into existing systems can be challenging. Engineers must consider the compatibility of the sensors with their current measurement and control systems.
The future of 6 DoF load cells looks promising, with several trends emerging in the industry:
- Miniaturization: As technology advances, there is a growing trend towards miniaturizing load cells without compromising their performance. Smaller sensors can be integrated into tighter spaces, making them ideal for applications in compact robotic systems and aerospace components.
- Wireless Technology: The integration of wireless technology into 6 DoF load cells is becoming more common. Wireless sensors eliminate the need for cumbersome wiring, allowing for greater flexibility in sensor placement and easier data collection.
- Smart Sensors: The development of smart 6 DoF load cells equipped with advanced data processing capabilities is on the rise. These sensors can analyze data in real-time, providing immediate feedback and insights for engineers and researchers.
6 DoF load cells are revolutionizing precision measurement in robotics and aerospace by providing comprehensive data on forces and torques in three-dimensional space. Their ability to measure multiple directions simultaneously enhances accuracy and reliability, making them invaluable in various applications. As technology continues to advance, the future of 6 DoF load cells looks bright, with trends such as miniaturization, wireless technology, and smart sensors paving the way for even greater innovations.
6 DoF load cells offer enhanced accuracy, simultaneous measurement of multiple forces and torques, and customization options tailored to specific applications.
6 DoF load cells use strain gauges bonded to a flexible structure to measure changes in resistance caused by applied forces, which are then converted into electrical signals.
They are commonly used in robotics, aerospace testing, and biomechanical research to measure forces and torques in three-dimensional space.
Challenges include higher costs, the need for careful calibration, and potential integration issues with existing systems.
Future trends include miniaturization, the integration of wireless technology, and the development of smart sensors with advanced data processing capabilities.
