In today's fast-paced industrial and commercial environments, accurate weight measurement is crucial. Load cells, which are transducers that convert force or weight into an electrical signal, play a vital role in this process. When combined with a display, load cells not only enhance measurement accuracy but also improve user experience and operational efficiency. This article explores how a load cell with a display can revolutionize your weight measurement process, delving into its working principles, applications, calibration, maintenance, and future trends.
Load cells operate on the principle of converting mechanical force into an electrical signal. The most common type of load cell is the strain gauge load cell, which consists of a metal element that deforms under load. This deformation changes the resistance of the strain gauges attached to the element, producing a measurable electrical signal proportional to the weight applied.
When a load is applied to the load cell, the internal structure bends slightly. This bending creates a change in resistance in the strain gauges, which is then converted into a voltage signal. The load cell's output is typically linear, meaning that the output signal is directly proportional to the weight applied. This linearity is crucial for accurate weight measurement.

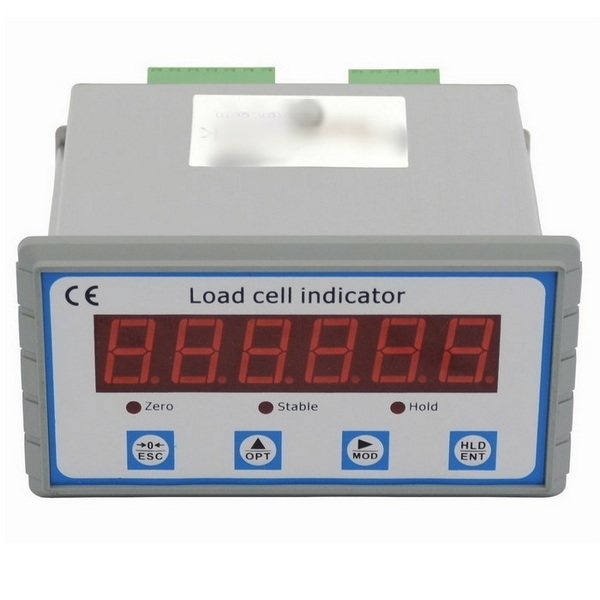

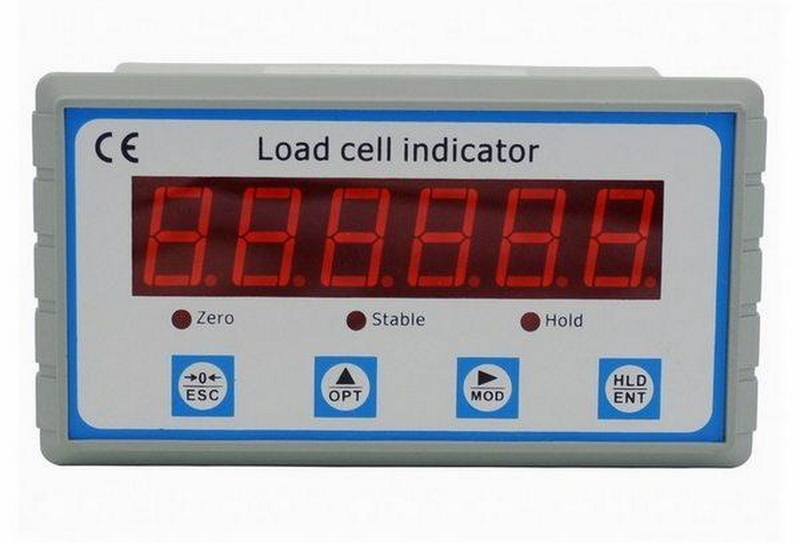

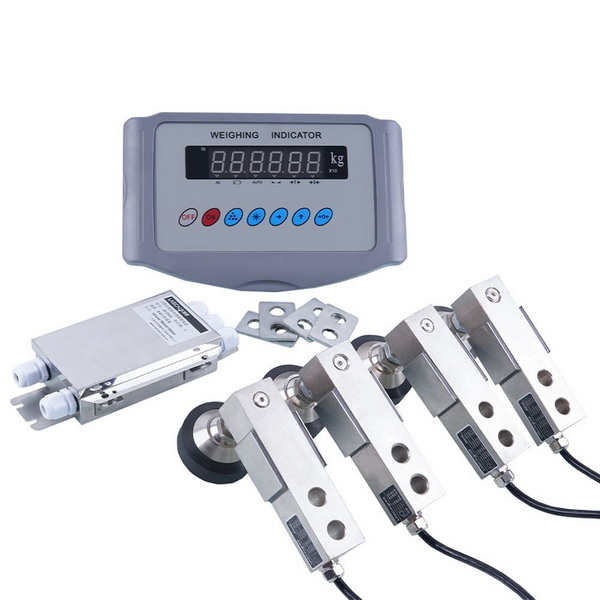

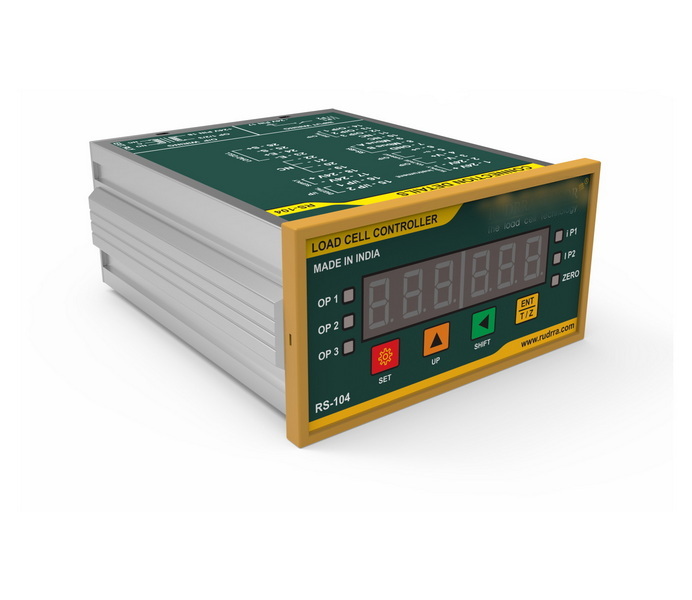

Integrating a display with a load cell allows users to visualize the weight measurements in real-time. Digital displays can show weight readings in various units, such as kilograms, pounds, or grams, making it easier for users to interpret the data. Additionally, many modern displays come equipped with features such as tare functions, peak hold, and data logging capabilities, further enhancing their utility.
The display component of a load cell system serves several essential functions. It provides a user-friendly interface for monitoring weight measurements, allowing operators to make informed decisions quickly. There are various types of displays available, including:
- Digital Displays: These are the most common type, providing clear numerical readouts of weight measurements. They often feature backlighting for visibility in low-light conditions.
- Analog Displays: While less common today, analog displays can still be found in some applications. They use a needle to indicate weight on a dial, providing a visual representation of weight changes.
- Portable Displays: These are battery-operated and designed for use in mobile applications. They allow users to take weight measurements in various locations without being tethered to a power source.
- Wireless Displays: With advancements in technology, wireless displays are becoming increasingly popular. They can receive data from load cells via Bluetooth or Wi-Fi, allowing for remote monitoring and data collection.
Portable displays offer flexibility and convenience, making them ideal for applications where weight measurements need to be taken in different locations. In contrast, fixed displays are typically used in industrial settings where the load cell is permanently installed. Both types have their advantages, and the choice between them depends on the specific requirements of the application.
Load cells with displays are used in a wide range of applications across various industries. Some of the most common applications include:
In manufacturing and logistics, load cells are essential for ensuring that products are weighed accurately during production and shipping. They help prevent overloading and ensure compliance with weight regulations. For example, in a packaging line, a load cell with a display can be used to verify that each package meets the required weight specifications before it is shipped.
In laboratories, load cells are used for precise weight measurements in experiments and research. A load cell with a display allows researchers to monitor weight changes in real-time, facilitating accurate data collection and analysis. This is particularly important in fields such as chemistry and biology, where precise measurements are critical.
In retail, load cells with displays are commonly used in scales for weighing products. Grocery stores, for instance, use these systems to weigh fruits, vegetables, and bulk items. The display provides customers with immediate feedback on the weight and price of their purchases, enhancing the shopping experience.
Calibration is a crucial aspect of ensuring the accuracy of load cells. It involves comparing the output of the load cell to a known standard and adjusting it as necessary. Regular calibration is essential to maintain measurement accuracy, especially in applications where precision is critical.
Calibration helps identify any drift in the load cell's output over time. Factors such as temperature changes, mechanical wear, and environmental conditions can affect the performance of load cells. By regularly calibrating the system, users can ensure that their measurements remain accurate and reliable.
Calibrating a load cell typically involves the following steps:
1. Set Up the Load Cell: Ensure that the load cell is properly installed and connected to the display.
2. Apply Known Weights: Use calibrated weights to apply known loads to the load cell. Record the output readings from the display.
3. Adjust the Calibration: If the output readings do not match the known weights, adjustments can be made to the load cell's settings to correct the discrepancies.
4. Repeat the Process: It is essential to repeat the calibration process at regular intervals to maintain accuracy.
To ensure the longevity and reliability of load cells, regular maintenance is essential. Here are some best practices:
- Keep the Load Cell Clean: Dust and debris can affect the performance of load cells. Regularly clean the load cell and its surroundings.
- Check for Mechanical Damage: Inspect the load cell for any signs of physical damage, such as cracks or dents, which can affect its accuracy.
- Monitor Environmental Conditions: Load cells should be protected from extreme temperatures, humidity, and corrosive substances that can impact their performance.
As technology continues to advance, the future of load cells with displays looks promising. Several trends are emerging that are likely to shape the industry:
Wireless load cells are gaining popularity due to their convenience and flexibility. They eliminate the need for cumbersome wiring, making installation easier and reducing the risk of damage to cables. Wireless systems can transmit data to displays or data loggers in real-time, allowing for remote monitoring and analysis.
Many modern load cells with displays are now equipped with data logging capabilities. This allows users to record weight measurements over time, facilitating trend analysis and reporting. Integration with software solutions can provide deeper insights into weight data, helping businesses optimize their operations.
The integration of load cells with IoT technology is another exciting trend. IoT-enabled load cells can connect to the internet, allowing for remote monitoring and control. This connectivity can enhance operational efficiency by providing real-time data to users, enabling them to make informed decisions quickly.
In conclusion, load cells with displays are revolutionizing the way weight measurements are taken across various industries. Their ability to provide accurate, real-time data enhances operational efficiency and improves user experience. As technology continues to evolve, we can expect to see even more advancements in load cell systems, including wireless connectivity, data logging, and IoT integration. By embracing these innovations, businesses can optimize their weight measurement processes and stay ahead in a competitive market.
A load cell is a transducer that converts force or weight into an electrical signal. It works by deforming under load, which changes the resistance of attached strain gauges, producing a measurable output signal.
Calibration is essential to ensure the accuracy of load cells. It helps identify any drift in the output over time and ensures that measurements remain reliable, especially in critical applications.
The different types of displays include digital displays, analog displays, portable displays, and wireless displays. Each type serves specific applications and user needs.
To maintain a load cell, keep it clean, check for mechanical damage, and monitor environmental conditions. Regular calibration is also crucial for ensuring accuracy.
Future trends include the rise of wireless load cells, integration with data logging and analysis, and the application of IoT technology for remote monitoring and control.
