Digital load cells are essential components in various industries, providing accurate weight measurements for a wide range of applications. Ensuring their proper functionality is crucial for maintaining operational efficiency and safety. One effective way to check the performance of a digital load cell is by using a multimeter. This article will guide you through the process of testing a digital load cell with a multimeter, providing detailed steps, insights, and troubleshooting tips.
Digital load cells are devices that convert a force or weight into an electrical signal. They consist of several key components, including strain gauges, a signal conditioning circuit, and an analog-to-digital converter. The strain gauges measure the deformation of the load cell when a weight is applied, and the signal conditioning circuit amplifies this signal for accurate readings. Digital load cells are widely used in applications such as industrial weighing, medical equipment, and automotive testing.
To effectively test a digital load cell, you will need a few essential tools:
- Multimeter: A versatile instrument used to measure voltage, current, and resistance. Ensure your multimeter is set to the appropriate mode for the measurements you intend to take.
- Wiring Diagram: A schematic representation of the load cell's wiring can help you identify the correct terminals for testing.
- Safety Gear: Depending on your working environment, safety glasses and gloves may be necessary.
Before you begin testing, it is essential to take some safety precautions:
1. Disconnect Power: Ensure that the load cell is not connected to any power source to avoid electrical shock.
2. Set Up the Multimeter: Turn on your multimeter and set it to the appropriate measurement mode (resistance, voltage, etc.).
3. Identify Load Cell Terminals: Refer to the wiring diagram to locate the terminals for the load cell. Typically, there will be terminals for excitation voltage, signal output, and ground.
1. Connect the Multimeter: Attach the multimeter probes to the appropriate terminals of the load cell.
2. Take the Reading: Record the resistance value displayed on the multimeter. Compare this value to the manufacturer's specifications to determine if the load cell is functioning correctly.
1. Reconnect Power: Once you have measured the resistance, reconnect the load cell to its power source.

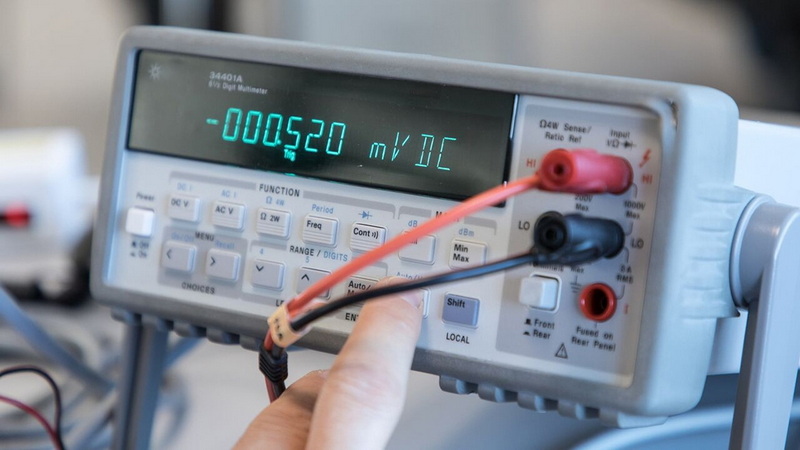

2. Measure Output Voltage: With the multimeter set to measure voltage, connect the probes to the signal output and ground terminals.
3. Analyze the Reading: The output voltage should correspond to the weight applied to the load cell. If the reading is significantly different from expected values, further investigation is needed.
1. Apply Known Weights: Place known weights on the load cell and measure the output voltage for each weight.
2. Compare Readings: Ensure that the output voltage corresponds accurately to the known weights. If discrepancies exist, recalibration may be necessary.
If you encounter issues during testing, consider the following troubleshooting steps:
- Check Wiring: Inspect the load cell wiring for any signs of damage or loose connections.
- Inspect for Damage: Look for physical damage to the load cell that may affect its performance.
- Recalibrate: If the load cell is not providing accurate readings, it may need recalibration.
Understanding the results of your tests is crucial for diagnosing potential issues with the load cell.
- Resistance Readings: A resistance reading that deviates significantly from the manufacturer's specifications may indicate a problem with the load cell.
- Signal Output Analysis: If the output voltage does not correlate with the applied weight, this could suggest calibration issues or internal damage.
If you suspect wiring issues, carefully inspect all connections and replace any damaged wires.
Regular calibration is essential for accurate measurements. If calibration errors are detected, follow the manufacturer's guidelines for recalibration.
Physical damage to the load cell can lead to inaccurate readings. If damage is found, consider replacing the load cell.
Regularly checking digital load cells with a multimeter is vital for ensuring their accuracy and reliability. By following the steps outlined in this article, you can effectively test and troubleshoot your load cells, maintaining optimal performance in your applications.
A digital load cell is a device that converts weight or force into an electrical signal, providing accurate measurements for various applications.
It is recommended to test your load cell regularly, especially if it is used in critical applications or subjected to heavy loads.
Yes, a multimeter can be used to test various types of load cells, including analog and digital models.
Signs of a faulty load cell include inconsistent readings, physical damage, and failure to calibrate correctly.
Calibration typically involves applying known weights to the load cell and adjusting the output readings to match the expected values according to the manufacturer's instructions.
