In the world of precision measurement, load cell indicators play a crucial role in ensuring accurate weight readings across various applications. From industrial manufacturing to laboratory experiments, the ability to measure weight accurately is essential for quality control, safety, and efficiency. This article explores how load cell indicators enhance weighing accuracy, delving into their types, calibration processes, installation techniques, and troubleshooting methods.
Load cells are transducers that convert a force into an electrical signal. They are widely used in weighing applications due to their accuracy and reliability. The most common type of load cell is the strain gauge load cell, which measures the deformation of a material under load. When a load is applied, the strain gauge deforms, causing a change in electrical resistance that can be measured and converted into a weight reading.

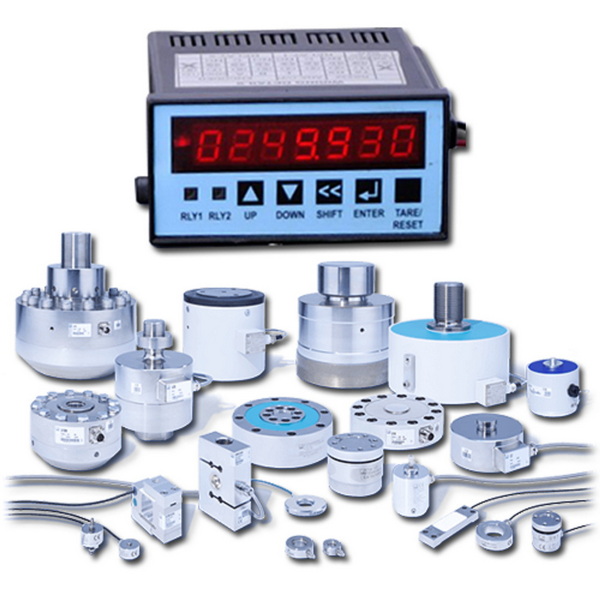

There are several types of load cells, each designed for specific applications:
- Strain Gauge Load Cells: The most common type, known for their accuracy and versatility.
- Hydraulic Load Cells: Use fluid pressure to measure weight, suitable for heavy loads.
- Pneumatic Load Cells: Utilize air pressure, ideal for applications requiring high sensitivity.
- Bending Beam Load Cells: Often used in platform scales, they measure bending stress.
Each type has its advantages and is chosen based on the specific requirements of the application.
Calibration is a critical process that ensures the accuracy of load cell indicators. It involves comparing the output of the load cell to a known standard and adjusting it to eliminate any discrepancies. Regular calibration is essential for maintaining accuracy, especially in environments where loads frequently change.
1. Preparation: Gather necessary equipment, including calibration weights and a calibration certificate.
2. Zeroing: Ensure the load cell is zeroed before applying any weight.
3. Applying Weights: Gradually apply known weights and record the load cell's output.
4. Adjusting: If discrepancies are found, adjust the load cell settings to align with the known weights.
5. Documentation: Keep a record of the calibration process for future reference.
Proper installation of load cell indicators is vital for achieving accurate measurements. Incorrect installation can lead to errors in weight readings, affecting the overall performance of the weighing system.
1. Site Preparation: Ensure the installation site is stable and free from vibrations.
2. Mounting: Securely mount the load cell in a position that allows for even weight distribution.
3. Wiring: Connect the load cell to the indicator according to the manufacturer's instructions.
4. Testing: After installation, conduct a test to verify that the load cell is functioning correctly.
Load cell indicators significantly enhance measurement accuracy through various features:
- Digital Readouts: Provide clear and precise weight readings, reducing human error.
- Tare Function: Allows users to subtract the weight of containers, ensuring only the net weight is measured.
- Data Logging: Many modern load cell indicators can log data for analysis, helping identify trends and anomalies.
Several factors can influence the accuracy of load cell measurements:
- Temperature Variations: Changes in temperature can affect the load cell's performance. Using temperature-compensated load cells can mitigate this issue.
- Mechanical Stress: Excessive mechanical stress can lead to permanent deformation. Proper installation and regular maintenance can help prevent this.
- Electrical Interference: Ensure that the load cell and indicator are properly shielded from electrical noise.
Even with proper installation and calibration, issues may arise with load cell indicators. Understanding common problems and their solutions can help maintain accuracy.
- Drifting Readings: This can occur due to temperature changes or electrical interference. Recalibrating the load cell may resolve the issue.
- Inconsistent Measurements: Check for mechanical stress or improper installation. Ensure the load cell is mounted correctly and that there are no obstructions.
- No Output: If the load cell indicator shows no output, check the wiring connections and power supply.
When selecting a load cell indicator, it is essential to consider its specifications:
- Maximum Load Capacity: Ensure the load cell can handle the expected maximum weight.
- Sensitivity: Higher sensitivity allows for more precise measurements.
- Response Time: A faster response time is crucial for dynamic weighing applications.
Integrating load cell indicators with other systems can enhance overall performance. For example, connecting load cells to a computer system allows for real-time data analysis and monitoring.
Load cell indicators are used in various industries, including:
- Manufacturing: For quality control and inventory management.
- Food Industry: To ensure accurate portioning and packaging.
- Pharmaceuticals: For precise measurements in drug formulation.
Load cell indicators are essential tools for improving weighing accuracy across various applications. By understanding their types, calibration processes, installation techniques, and troubleshooting methods, users can ensure optimal performance. Regular maintenance and proper integration with other systems further enhance their effectiveness, making them invaluable in industries that rely on precise measurements.

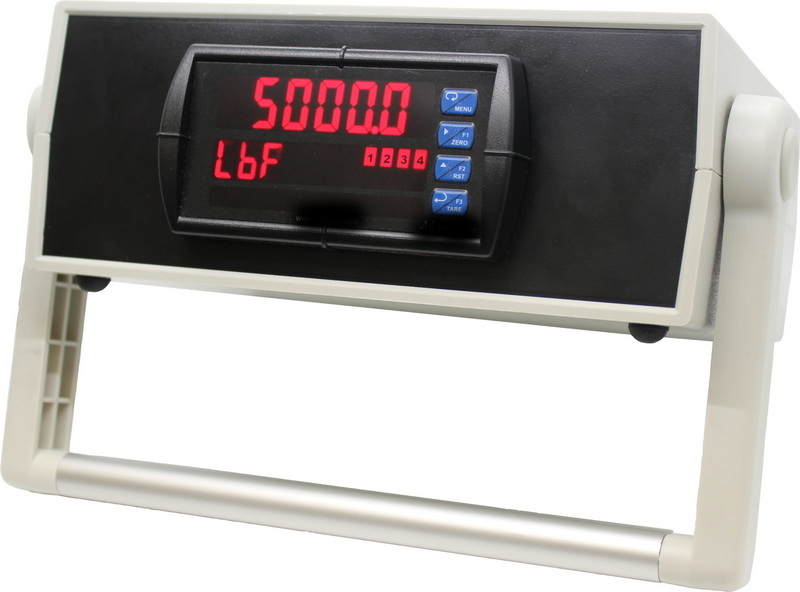

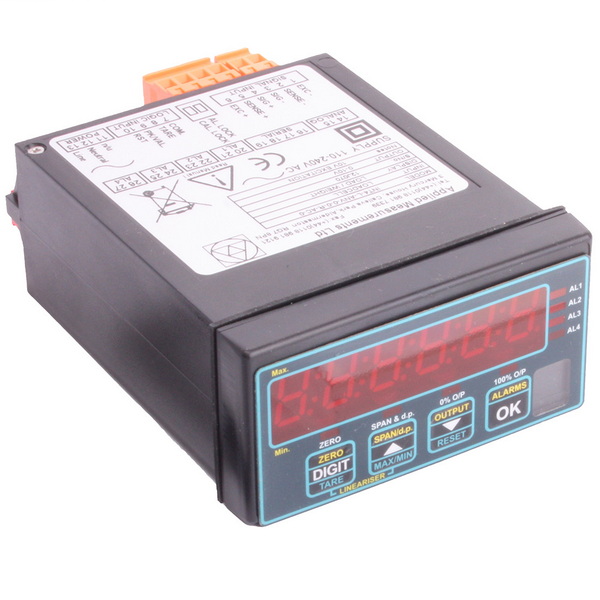

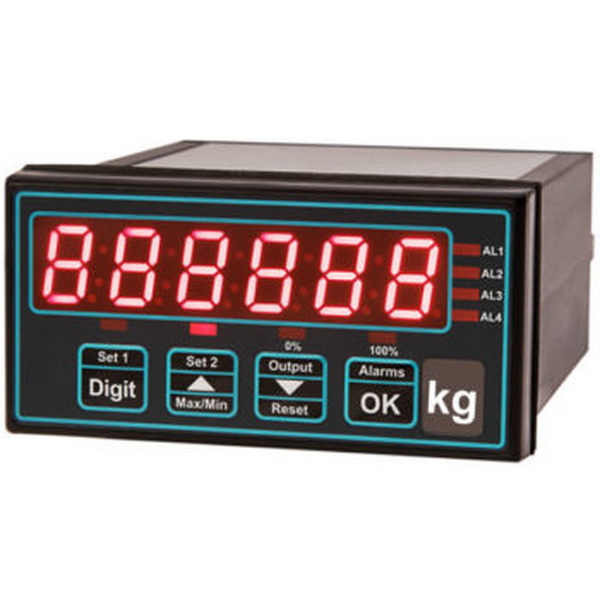

A load cell indicator is a device that displays the weight measured by a load cell. It converts the electrical signal from the load cell into a readable weight format.
Load cells should be calibrated regularly, typically every six months or whenever there is a significant change in the environment or application.
Yes, many load cell indicators are designed to withstand harsh environments. However, it is essential to choose models that are specifically rated for such conditions.
Factors such as temperature variations, mechanical stress, and electrical interference can all impact the accuracy of load cell measurements.
Check the wiring connections, ensure the load cell is properly installed, and recalibrate the system if necessary. If issues persist, consult the manufacturer for further assistance.
