Load cells are essential components in various industries, including manufacturing, transportation, and healthcare. They convert force or weight into an electrical signal, allowing for precise measurements. However, like any other equipment, load cells can fail or degrade over time. Identifying a bad load cell is crucial to maintaining accuracy and efficiency in operations. This article will explore the symptoms of a malfunctioning load cell, troubleshooting methods, and maintenance tips to ensure optimal performance.
Load cells are transducers that convert mechanical force into an electrical signal. They are widely used in scales, industrial weighing systems, and force measurement applications. There are several types of load cells, including:
- Strain Gauge Load Cells: The most common type, using strain gauges to measure deformation.
- Hydraulic Load Cells: Utilize fluid pressure to measure weight.
- Pneumatic Load Cells: Use air pressure for weight measurement.
Each type has its specific applications, advantages, and limitations, making it essential to choose the right one for your needs.
Identifying a bad load cell can be challenging, but several symptoms can indicate a problem:
- Inconsistent Readings: If the load cell provides fluctuating or inconsistent weight measurements, it may be malfunctioning.
- Zero Drift: A load cell should read zero when not under load. If it shows a non-zero value, it may need recalibration or replacement.
- Physical Damage: Inspect the load cell for any visible signs of damage, such as cracks or corrosion.
- Slow Response Time: A delay in the load cell's response to changes in weight can indicate internal issues.
- Overloading: If a load cell has been subjected to loads beyond its capacity, it may have sustained damage.
Calibration is vital for ensuring accurate measurements. A load cell that is out of calibration can lead to significant errors in weight readings. Signs that calibration may be off include:
- Consistent Measurement Errors: If the load cell consistently reads higher or lower than expected, recalibration is necessary.
- Environmental Changes: Temperature fluctuations or changes in humidity can affect calibration, necessitating regular checks.
When a load cell is suspected to be faulty, a systematic troubleshooting approach is essential:
1. Visual Inspection: Check for physical damage, loose connections, or signs of wear.
2. Electrical Testing: Use a multimeter to check the electrical connections and ensure they are functioning correctly.
3. Load Testing: Apply known weights to the load cell and compare the readings to expected values.
4. Calibration Check: Verify that the load cell is properly calibrated and adjust if necessary.
There are several methods to test load cells for functionality:
- Static Testing: Involves applying a known weight and checking the output signal.
- Dynamic Testing: Measures the load cell's response to changing weights.

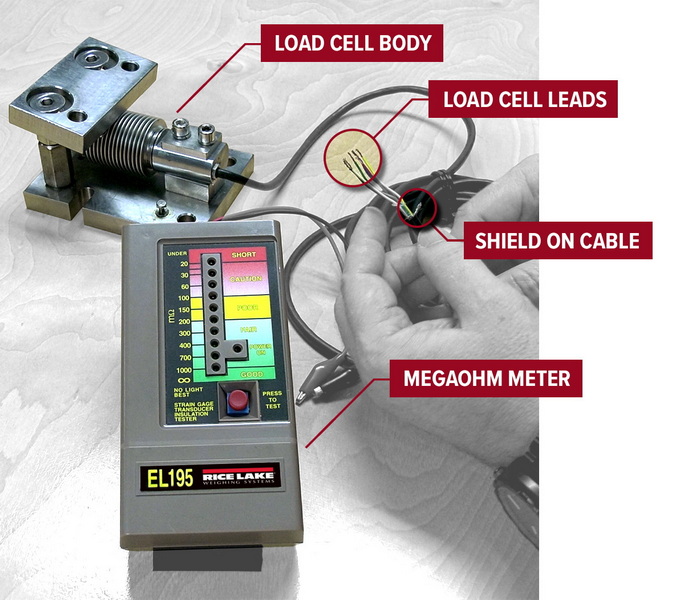

- Resistance Testing: Checks the electrical resistance of the load cell to identify potential issues.
Each method has its advantages and can provide valuable insights into the load cell's condition.
Load cells can encounter various issues, including:
- Electrical Failures: Short circuits or open circuits can disrupt the load cell's functionality.
- Mechanical Failures: Overloading or physical damage can lead to mechanical failure.
- Environmental Factors: Exposure to moisture, dust, or extreme temperatures can affect performance.
Identifying these problems early can prevent costly downtime and ensure accurate measurements.
Knowing when to replace a load cell is crucial for maintaining operational efficiency. Consider replacement if:
- Repeated Failures: If a load cell frequently malfunctions despite repairs, it may be time for a replacement.
- Age: Older load cells may not perform as reliably as newer models.
- Technological Advancements: Newer load cell technologies may offer improved accuracy and features.
Regular maintenance can extend the lifespan of load cells and ensure accurate measurements. Here are some best practices:
- Routine Inspections: Regularly check for physical damage and wear.
- Calibration: Schedule periodic calibration to maintain accuracy.
- Environmental Controls: Protect load cells from extreme temperatures, moisture, and dust.
Implementing these practices can help prevent issues and maintain optimal performance.
Identifying and addressing load cell issues is essential for maintaining accuracy and efficiency in various applications. By understanding the symptoms of a bad load cell, implementing effective troubleshooting methods, and adhering to maintenance practices, you can ensure the longevity and reliability of your load cells. Regular checks and timely interventions can prevent costly downtime and enhance operational efficiency.
Common causes include electrical failures, mechanical damage, and environmental factors such as moisture and temperature fluctuations.
Load cells should be calibrated at least once a year, or more frequently if they are subjected to heavy use or environmental changes.
Essential tools include a multimeter for electrical testing, weights for load testing, and calibration equipment.
Yes, exposure to extreme temperatures, humidity, and dust can significantly impact load cell performance and accuracy.
Consider factors such as the type of load to be measured, environmental conditions, and the required accuracy when selecting a load cell.
