In the realm of engineering, precise measurement of forces is crucial for ensuring safety, performance, and reliability in various applications. Triaxial load cells have emerged as a revolutionary technology that enhances the accuracy and efficiency of force measurement. These devices are capable of measuring forces in three dimensions simultaneously, making them invaluable in fields such as structural engineering, automotive testing, and biomechanics. This article delves into the workings of triaxial load cells, their applications, advantages, calibration methods, and future trends, ultimately highlighting their transformative impact on engineering practices.

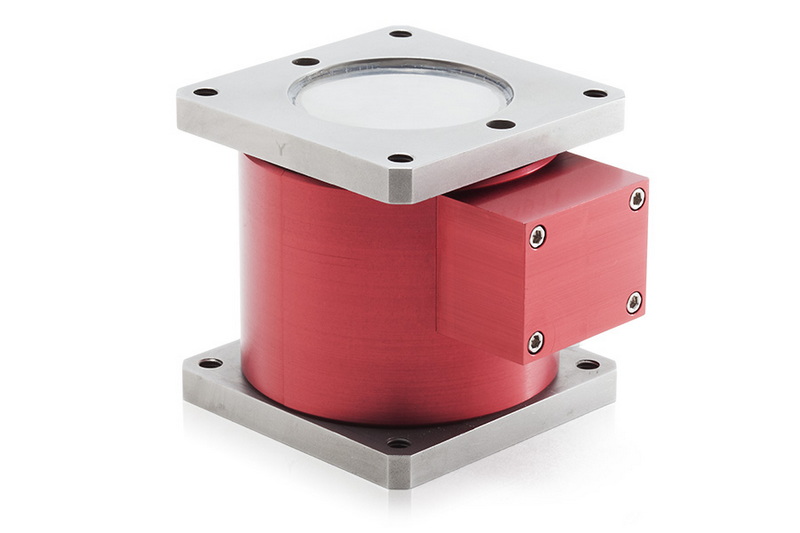

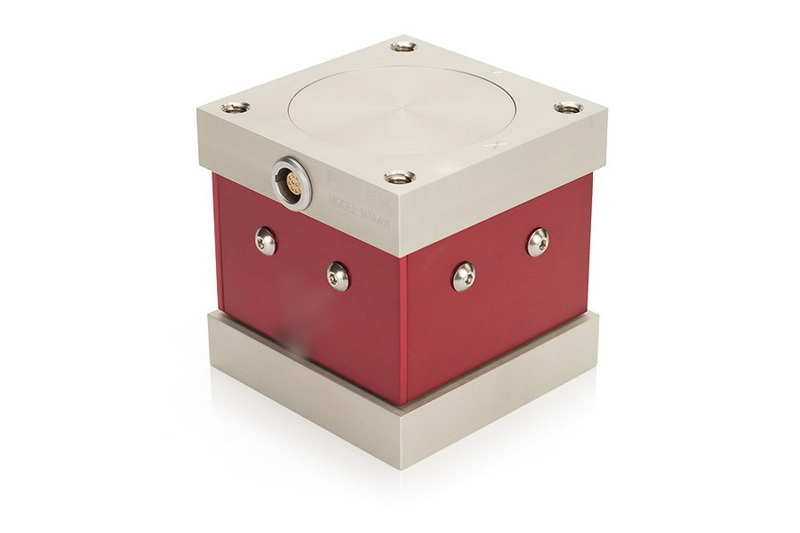

Triaxial load cells are sophisticated sensors designed to measure forces along three orthogonal axes: X, Y, and Z. This capability allows them to capture complex loading conditions that traditional uniaxial load cells cannot. The core of a triaxial load cell typically consists of strain gauges arranged in a specific configuration to detect deformation caused by applied forces. When a load is applied, the strain gauges convert mechanical deformation into an electrical signal, which can then be processed to determine the magnitude and direction of the force.
The design of triaxial load cells often incorporates advanced materials and technologies to enhance their sensitivity and durability. For instance, high-quality strain gauges are used to ensure accurate readings, while robust housing protects the internal components from environmental factors. This combination of technology and engineering excellence makes triaxial load cells a preferred choice for demanding applications.
Triaxial load cells find applications across various engineering disciplines, each benefiting from their unique capabilities. Here are some key areas where these sensors are making a significant impact:
In structural engineering, triaxial load cells are used to assess the load-bearing capacity of materials and structures. By applying loads in multiple directions, engineers can evaluate how structures respond to real-world conditions. This information is vital for designing safe and efficient buildings, bridges, and other infrastructure.
The automotive industry relies heavily on triaxial load cells for testing vehicle components, such as suspensions and axles. By measuring forces during dynamic testing, engineers can optimize designs for performance and safety. Triaxial load cells enable comprehensive analysis of how vehicles respond to various driving conditions, leading to improved handling and stability.
In the field of biomechanics, triaxial load cells are instrumental in studying human movement and ergonomics. Researchers use these sensors to measure forces exerted by the body during activities such as walking, running, and lifting. This data is crucial for developing ergonomic tools and workspaces that minimize injury risk and enhance performance.
The adoption of triaxial load cells in engineering comes with numerous advantages that enhance measurement accuracy and efficiency:
Triaxial load cells are designed to provide high precision in force measurements. Their ability to measure forces in three dimensions simultaneously reduces the likelihood of errors associated with multi-sensor setups. This accuracy is critical in applications where even minor discrepancies can lead to significant safety concerns.
One of the standout features of triaxial load cells is their capability to measure forces in multiple directions at once. This functionality is particularly beneficial in dynamic environments where loads can change rapidly. By capturing real-time data from all three axes, engineers can gain a comprehensive understanding of the forces acting on a structure or component.
The integration of triaxial load cells into testing setups enhances data reliability. With fewer sensors required to capture multi-directional forces, the risk of data inconsistencies is minimized. This reliability is essential for making informed engineering decisions based on accurate measurements.
To ensure the accuracy of triaxial load cells, regular calibration is essential. Calibration involves comparing the load cell's output against known reference values to identify any discrepancies. This process helps maintain the integrity of measurements over time.
Regular calibration is crucial for maintaining the accuracy of triaxial load cells. Environmental factors, wear and tear, and changes in operating conditions can affect the performance of these sensors. By conducting routine calibrations, engineers can ensure that their measurements remain reliable and valid.
Several methods can be employed for calibrating triaxial load cells. These include static calibration, where known weights are applied to the load cell, and dynamic calibration, which involves applying varying loads to assess the sensor's response. Each method has its advantages, and the choice depends on the specific application and requirements.
To prolong the lifespan and performance of triaxial load cells, proper maintenance is essential. This includes regular inspections for signs of wear, ensuring that the load cell is free from contaminants, and storing it in a controlled environment when not in use. Following manufacturer guidelines for maintenance can help prevent issues and ensure consistent performance.
As technology continues to advance, the future of triaxial load cells looks promising. Several trends are emerging that could further enhance their capabilities and applications:
Ongoing research and development are leading to innovations in the design of triaxial load cells. New materials and manufacturing techniques are being explored to create lighter, more durable sensors with improved sensitivity. These advancements will expand the range of applications for triaxial load cells in various industries.
The integration of triaxial load cells with Internet of Things (IoT) technologies is set to revolutionize data collection and analysis. By connecting load cells to smart devices and cloud platforms, engineers can access real-time data remotely, enabling more efficient monitoring and decision-making processes.
The continued evolution of triaxial load cells will have a significant impact on multiple industries. From construction to healthcare, the ability to measure forces accurately and in real-time will enhance safety, performance, and innovation. As engineers adopt these advanced measurement technologies, we can expect to see improvements in product design, testing methodologies, and overall engineering practices.
Triaxial load cells are transforming the landscape of force measurement in engineering. Their ability to measure forces in three dimensions simultaneously provides engineers with invaluable data that enhances safety, performance, and reliability across various applications. As technology continues to advance, the potential for triaxial load cells to revolutionize engineering practices is immense. By embracing these innovative sensors, engineers can ensure that their designs meet the highest standards of accuracy and efficiency.
Triaxial load cells offer the ability to measure forces in three dimensions simultaneously, providing higher precision and reducing the risk of errors associated with multiple sensors. This capability enhances data reliability and allows for comprehensive analysis of complex loading conditions.
Triaxial load cells should be calibrated regularly, typically every six months to a year, depending on usage and environmental conditions. Frequent calibration ensures that measurements remain accurate and reliable over time.
Triaxial load cells are commonly used in structural engineering, automotive testing, biomechanics, and aerospace applications. Their versatility makes them suitable for any field requiring precise force measurement.
Factors such as temperature fluctuations, mechanical wear, and environmental contaminants can affect the accuracy of triaxial load cells. Regular maintenance and calibration are essential to mitigate these effects.
In ergonomic assessments, triaxial load cells measure the forces exerted by the body during various activities. This data helps researchers design tools and workspaces that minimize injury risk and enhance user comfort and performance.
