Calibrating a load cell is essential for ensuring accurate measurements in various applications, particularly in tension control systems. Load cells are devices that convert force or weight into an electrical signal, and they are widely used in industries ranging from manufacturing to construction. This article will delve into the calibration process, its importance, and best practices to achieve optimal tension control with a load cell.

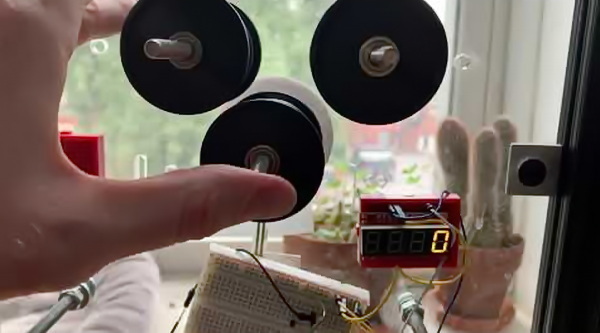

Load cells are crucial components in tension control systems. They provide precise measurements of tensile forces, which are vital for maintaining the integrity of materials during processing. The accuracy of these measurements directly affects product quality and operational efficiency.
The primary functions of load cells include:
- Measuring tensile forces in various applications
- Providing feedback for automated tension control systems
- Ensuring safety by preventing overload situations
In industries such as textiles, packaging, and metal fabrication, maintaining precise tension is critical. For instance, in textile manufacturing, improper tension can lead to fabric defects, while in packaging, it can affect the sealing process. Therefore, understanding how to calibrate a load cell effectively is paramount for achieving optimal performance.
There are several types of load cells, each suited for specific applications:

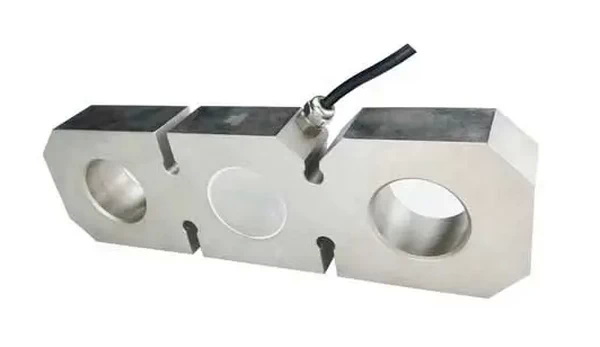

- Tension Load Cells: Designed to measure pulling forces.
- Compression Load Cells: Used for measuring pushing forces.
- S-Type Load Cells: Versatile and can measure both tension and compression.
- Shear Beam Load Cells: Commonly used in platform scales and industrial applications.
- Bending Beam Load Cells: Typically found in low-capacity applications.
Understanding the type of load cell you are working with is critical for effective calibration. Each type has unique characteristics that may influence the calibration process.
Calibrating a load cell involves adjusting its output to ensure it accurately reflects the applied force. This process typically follows these steps:
Before starting the calibration process, ensure that:
- The load cell is clean and free from debris.
- All connections are secure.
- The load cell is properly mounted.
Proper mounting is essential as it affects how the load cell responds to applied forces. Ensure that it is aligned correctly and that there are no mechanical interferences.
Zeroing is crucial as it accounts for any residual load on the sensor. This step ensures that the load cell reads zero when no weight is applied.
To zero the load cell:
1. Remove any weights from the load cell.
2. Access the zeroing function on your digital readout or data acquisition system.
3. Follow the manufacturer's instructions to set the output to zero.
This step is vital because even small offsets can lead to significant errors in measurement.

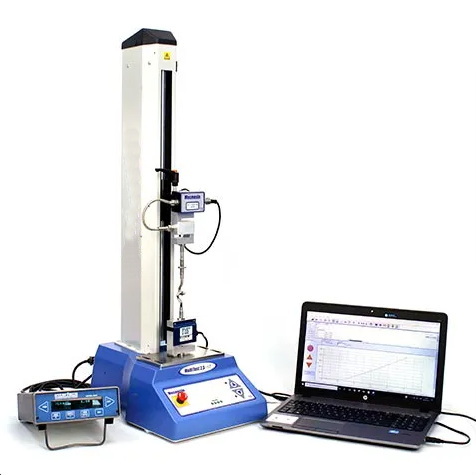

Gradually apply known weights to the load cell. Start with the lowest weight and increase incrementally while recording the output readings for each weight. This data will help create a calibration curve.
When selecting calibration weights:
- Use certified weights that meet national standards.
- Ensure weights cover the full range of expected loads on the load cell.
Plot the recorded output against the known weights to visualize any discrepancies in the load cell's readings. The calibration curve helps identify how much adjustment is needed.
A typical calibration curve will show a linear relationship between input (weight) and output (voltage or digital reading). If deviations from this linearity occur, further adjustments may be necessary.
If discrepancies exist, adjustments may be necessary based on manufacturer specifications. This could involve recalibrating using specific coefficients or modifying settings in the associated software.
Make sure to consult your load cell's manual for specific adjustment procedures, as different models may have unique requirements.
After adjustments, repeat the process to ensure accuracy across the desired range of weights. Confirm that the load cell provides consistent readings.
Testing should include:
- Applying multiple known weights across the entire range.
- Checking for hysteresis by loading and unloading weights multiple times.
- Ensuring that readings return consistently to zero after removing weights.
To achieve optimal tension control with a load cell, consider these best practices:
- Use Certified Weights: Always use certified calibration weights to ensure accuracy.
- Monitor Environmental Conditions: Be aware of temperature fluctuations and humidity, as these can affect readings.
- Implement Regular Calibration Checks: Depending on usage, calibrate at least once a year or whenever significant changes occur in system setup.
- Document Calibration Data: Keep thorough records of calibration results for future reference and compliance with industry standards.
In addition to calibration checks, regular maintenance of your load cells can prevent issues down the line:
- Inspect wiring and connections periodically for wear or damage.
- Clean load cells gently using appropriate cleaning solutions to avoid contamination.
- Ensure that mounting hardware remains tight and secure over time.
Despite following best practices, issues may arise during calibration or operation. Common problems include:
- Inconsistent readings
- Drift in measurements
- Faulty wiring
To troubleshoot these issues:
1. Conduct a visual inspection of the load cell and wiring.
2. Verify connections and check for any damage.
3. Perform a zero balance test to ensure accurate readings at no-load conditions.
If problems persist after troubleshooting:
- Consider consulting with a professional technician who specializes in load cells.
- Investigate potential environmental factors affecting performance such as vibrations or electromagnetic interference.
For those looking to enhance their calibration process further, consider implementing advanced techniques such as:
Instead of just using one or two points for calibration, use multiple points across your expected range of loads. This method provides a more accurate representation of how your load cell performs under varying conditions.
Many modern load cells come with software tools that facilitate easier calibration processes by automating data collection and analysis. These tools can help streamline your operations and improve accuracy significantly.
Temperature changes can affect readings; therefore, implementing temperature compensation techniques during calibration can enhance accuracy over varying environmental conditions.
Calibrating a load cell is an essential process that ensures accurate and reliable measurements in tension control applications. By following systematic procedures and best practices, you can maintain optimal performance and enhance operational efficiency across various industries.
Regular maintenance and troubleshooting practices will further contribute to prolonged lifespan and reliability of your equipment. Understanding advanced techniques can also provide an edge in achieving precision measurements necessary for high-quality production processes.
Calibration frequency depends on usage and environmental conditions but is generally recommended at least once a year.
Yes, with the right tools and knowledge, you can perform calibration; however, consulting a professional is advisable for critical applications.
You will need calibration weights, a digital multimeter, a load cell indicator, and possibly calibration software.
Signs include inconsistent readings, drift in measurements, or discrepancies when compared to known weights.
Check all connections for integrity, inspect wiring for damage, perform a zero balance test, and if issues persist, consult a professional technician.
