Load cell amplifiers play a crucial role in the accurate measurement of weight and force in various applications. These devices convert the small electrical signals generated by load cells into a more usable analog output, which can be further processed or displayed. The importance of achieving precise analog output cannot be overstated, as it directly impacts the reliability and accuracy of measurements in industries ranging from manufacturing to healthcare. In this article, we will explore how to optimize your load cell amplifier for accurate analog output, covering the fundamentals of load cell operation, the role of amplifiers, key factors affecting accuracy, optimization techniques, and real-world applications.
Load cells are sensors that measure force or weight by converting mechanical energy into electrical energy. The most common type of load cell uses strain gauges, which are thin wires or films that change resistance when stretched or compressed. When a load is applied to the load cell, the strain gauges deform, causing a change in their electrical resistance. This change is proportional to the amount of force applied, generating a small electrical signal.
The output from a load cell is typically very low, often in the millivolt range, making it necessary to use a load cell amplifier to boost the signal to a more usable level. The amplifier enhances the weak signals from the load cell, allowing for accurate readings and further processing.

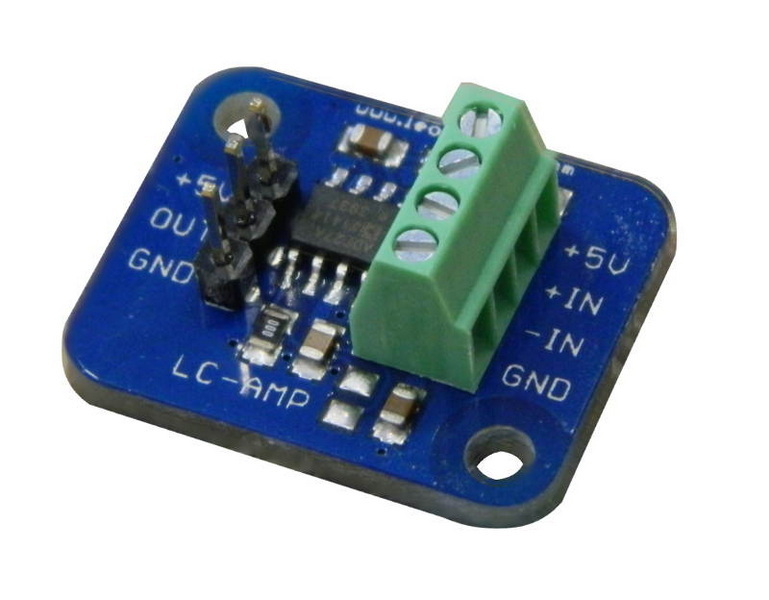

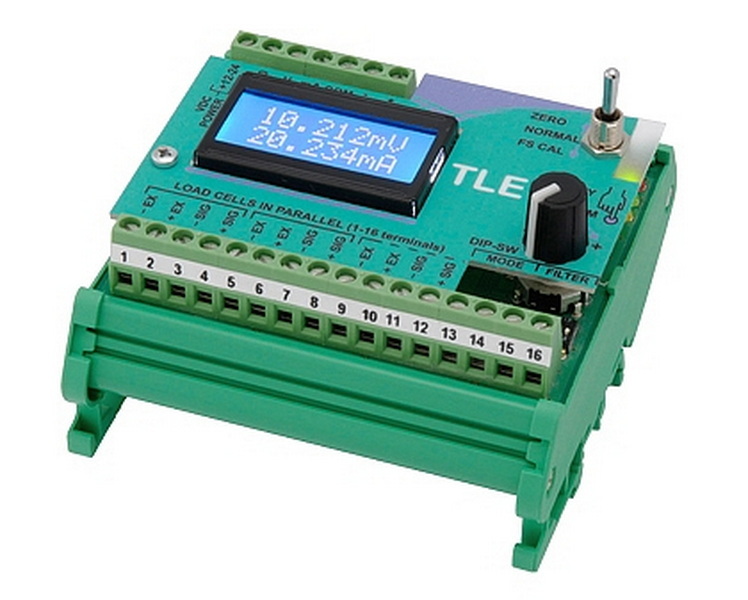

Load cell amplifiers are essential for converting the low-level signals from load cells into a higher voltage or current output that can be easily read by data acquisition systems, controllers, or displays. There are several types of load cell amplifiers, including instrumentation amplifiers and differential amplifiers, each designed for specific applications.
Instrumentation amplifiers are particularly useful for load cell applications due to their high input impedance, which minimizes the loading effect on the load cell. This characteristic ensures that the amplifier does not significantly affect the measurement being taken. Differential amplifiers, on the other hand, are used to amplify the difference between two input signals, making them ideal for applications where noise rejection is critical.
Several factors can influence the accuracy of the analog output from a load cell amplifier. Understanding these factors is crucial for optimizing performance.
Calibration is the process of adjusting the output of a load cell system to ensure that it accurately reflects the applied load. Regular calibration is essential for maintaining measurement accuracy, as load cells can drift over time due to factors such as temperature changes, mechanical stress, and aging. Calibration methods can vary, but they typically involve applying known weights to the load cell and adjusting the amplifier output accordingly.
Temperature can significantly impact the performance of load cells and amplifiers. Changes in temperature can cause variations in the resistance of the strain gauges, leading to inaccurate readings. It is essential to consider temperature compensation techniques, such as using temperature sensors to monitor the environment and adjust the output accordingly.
Electrical noise is another critical factor that can affect the integrity of the signal from a load cell amplifier. Sources of noise can include electromagnetic interference from nearby equipment, power supply fluctuations, and ground loops. Implementing proper shielding, grounding techniques, and using differential amplifiers can help mitigate the effects of electrical noise on the output signal.
To achieve accurate analog output from your load cell amplifier, several optimization techniques can be employed.
Selecting the appropriate load cell amplifier is crucial for ensuring optimal performance. Consider the specifications of the load cell, including its output range, sensitivity, and impedance, when choosing an amplifier. The amplifier should match the load cell's characteristics to provide the best possible signal amplification.
Signal conditioning involves processing the output signal from the load cell amplifier to enhance its quality. This can include filtering out noise, amplifying the signal, and converting it to a different format. Implementing low-pass filters can help eliminate high-frequency noise, while proper gain settings can ensure that the output signal is within the desired range.
Proper wiring and connections are essential for minimizing interference and ensuring reliable performance. Use shielded cables to reduce electromagnetic interference, and ensure that all connections are secure to prevent signal loss. Additionally, keeping the wiring as short as possible can help reduce the potential for noise pickup.
In addition to traditional calibration methods, advanced techniques can further enhance the accuracy of load cell systems.
Digital calibration methods utilize software and digital tools to streamline the calibration process. These methods can provide more precise adjustments and allow for easier tracking of calibration history. Many modern load cell amplifiers come equipped with digital calibration features, making it easier to maintain accuracy over time.
Calibration weights are essential tools for ensuring the accuracy of load cell systems. By applying known weights to the load cell and adjusting the amplifier output accordingly, users can ensure that their measurements are accurate. It is important to use certified calibration weights to guarantee the precision of the calibration process.
Load cell amplifiers are used in a wide range of applications across various industries. Understanding these applications can provide insight into the importance of optimizing load cell systems.
In manufacturing and logistics, load cell amplifiers are commonly used in weighing systems to ensure accurate measurements of products and materials. Optimizing these systems can lead to improved efficiency, reduced waste, and enhanced quality control.
In the healthcare sector, load cell amplifiers are utilized in devices such as patient monitoring systems and medical scales. Accurate measurements are critical in these applications, as they can directly impact patient care and treatment decisions.
Load cell amplifiers also play a vital role in scientific research and experimental setups. Researchers rely on precise measurements to gather data and draw conclusions, making the optimization of load cell systems essential for successful experiments.
Despite best efforts, issues can still arise with load cell amplifiers. Identifying and addressing these problems is crucial for maintaining optimal performance.
Common issues with load cell amplifiers can include erratic readings, drift in measurements, and output instability. It is essential to systematically troubleshoot these problems by checking connections, verifying calibration, and inspecting for sources of noise.
Implementing best practices can help prevent issues from arising in the first place. Regular maintenance, including calibration and inspection of wiring and connections, can ensure that load cell systems remain accurate and reliable. Additionally, keeping the environment stable and free from interference can further enhance performance.
Optimizing your load cell amplifier for accurate analog output is essential for achieving reliable measurements in various applications. By understanding the fundamentals of load cell operation, the role of amplifiers, and the factors affecting accuracy, you can implement effective optimization techniques. Regular calibration, proper wiring, and advanced calibration methods can significantly enhance the performance of your load cell systems. Whether in industrial settings, healthcare, or research, the importance of accurate measurements cannot be overstated.
A load cell amplifier is used to boost the weak electrical signals generated by load cells, converting them into a higher voltage or current output that can be easily processed or displayed.
Load cell systems should be calibrated regularly, typically at least once a year or more frequently if they are used in critical applications or subjected to harsh conditions.
Factors that can affect accuracy include temperature variations, electrical noise, mechanical stress, and improper calibration.
To reduce electrical noise, use shielded cables, implement proper grounding techniques, and consider using differential amplifiers to reject common-mode noise.
Digital calibration methods provide more precise adjustments, easier tracking of calibration history, and can streamline the calibration process, enhancing overall accuracy.
