Compression load cells are essential devices used to measure force or weight in various applications. They play a crucial role in industries ranging from manufacturing to healthcare, providing accurate and reliable measurements. Understanding how these devices work is vital for anyone involved in fields that require precise weight measurement.

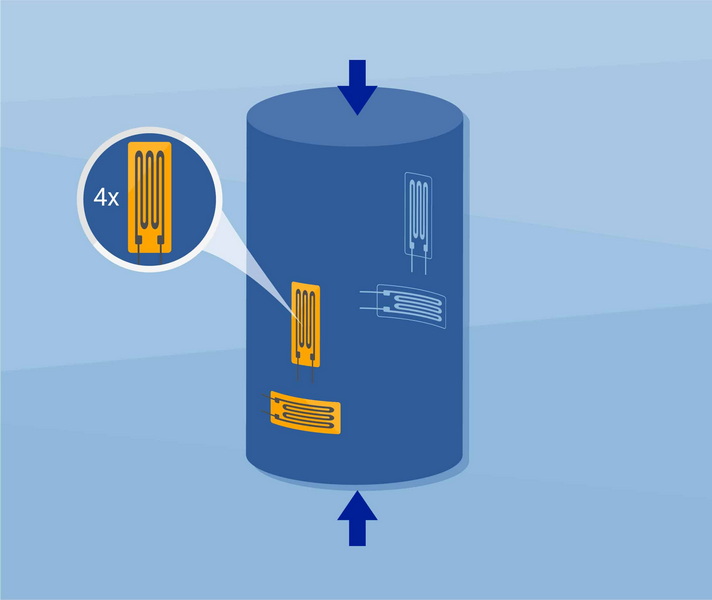

At the core of a compression load cell is its ability to convert an applied force into an electrical signal. When a load is applied, the load cell deforms slightly, and this deformation is measured by strain gauges attached to its surface. The relationship between the applied force and the resulting deformation is what allows for accurate weight measurement.

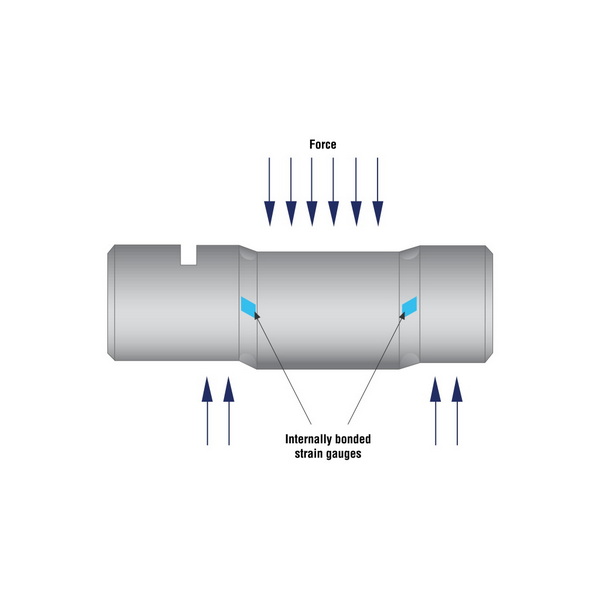

Strain gauges are critical components of compression load cells. These sensors detect the minute changes in resistance that occur when the load cell is compressed. As the load increases, the strain gauges deform, leading to a change in their electrical resistance. This change is then converted into a measurable electrical signal, which can be interpreted as weight.
The conversion process involves several steps. First, the deformation of the strain gauges generates a small voltage change. This voltage is then amplified and processed by the load cell's circuitry, resulting in a signal that corresponds to the applied force. This signal can be displayed on a digital readout or transmitted to a computer for further analysis.

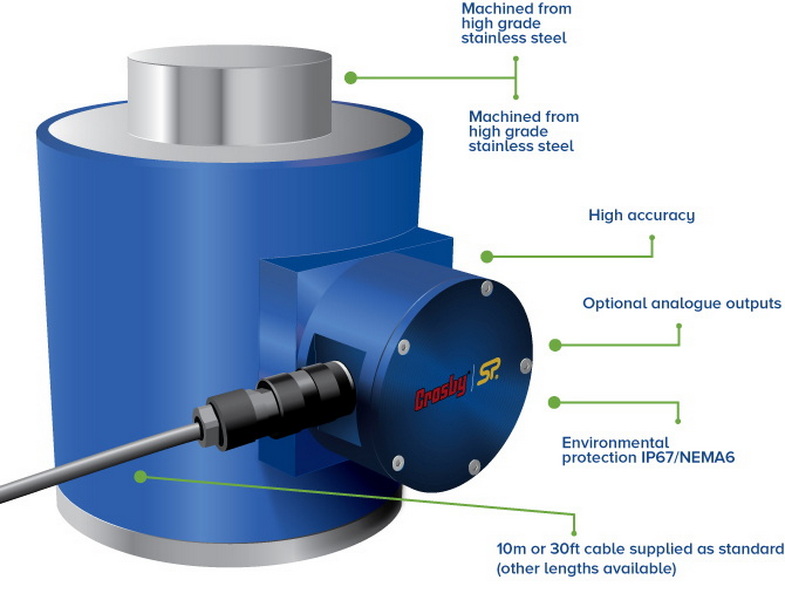

Canister load cells are cylindrical in shape and are designed for high-capacity applications. They are often used in industrial settings where large weights need to be measured accurately.
Pancake load cells are low-profile devices that provide high accuracy in a compact design. They are ideal for applications where space is limited but precision is still required.
Many manufacturers offer custom load cells tailored to specific applications. These can be designed to meet unique requirements, such as size, capacity, and environmental conditions.
Compression load cells are widely used in industrial weighing systems, such as truck scales and conveyor belt scales. They ensure that products are weighed accurately during production and shipping.
In the healthcare sector, compression load cells are used in medical scales to provide accurate weight measurements for patients, even when they are lying down.
These load cells are also employed in construction to monitor the weight of materials and ensure safety during lifting operations.
One of the primary benefits of compression load cells is their ability to provide highly accurate measurements. This precision is crucial in applications where even small discrepancies can lead to significant issues.
Compression load cells are designed to withstand harsh environments, making them reliable for long-term use. Their robust construction ensures they can handle heavy loads without failure.
These load cells can be used in a variety of settings, from industrial to medical, making them a versatile choice for many applications.
To ensure accurate measurements, proper installation of compression load cells is essential. This includes aligning the load cell correctly and ensuring it is securely mounted to prevent movement during operation.
Calibration is necessary to maintain the accuracy of load cells. This process involves applying known weights to the load cell and adjusting the output signal to match the expected values.
Compression load cells can be affected by environmental conditions such as temperature and humidity. It is important to select load cells that are rated for the specific conditions they will be used in.
Regular maintenance is crucial to ensure the longevity and accuracy of compression load cells. This includes checking for signs of wear and tear and recalibrating as necessary.
As technology advances, load cell designs are becoming more sophisticated. New materials and manufacturing techniques are improving their performance and reliability.
The integration of load cells with the Internet of Things (IoT) is a growing trend. This allows for real-time monitoring and data collection, enhancing the efficiency of operations.
Compression load cells are vital tools in many industries, providing accurate and reliable measurements of force and weight. Their ability to convert mechanical force into electrical signals makes them indispensable in applications ranging from industrial weighing to medical equipment. As technology continues to evolve, the capabilities and applications of compression load cells will only expand, further solidifying their importance in modern measurement systems.
A compression load cell is a type of sensor that measures the force applied to it, converting that force into an electrical signal for accurate weight measurement.
Strain gauges detect changes in resistance caused by deformation when a load is applied, allowing for the conversion of mechanical force into an electrical signal.
Common applications include industrial weighing, medical scales, and construction monitoring.
Calibration involves applying known weights to the load cell and adjusting the output signal to ensure accuracy.
Environmental conditions, installation techniques, and regular maintenance can all impact the performance and accuracy of load cells.
