The seat belt tension sensor in your Nissan Xterra plays a crucial role in ensuring the safety of occupants by monitoring and adjusting the tension of the seat belt during sudden stops or accidents. However, like any other component, it can fail, leading to issues with the vehicle's Supplemental Restraint System (SRS). Identifying a faulty seat belt tension sensor requires understanding its function, recognizing symptoms, and performing diagnostic tests. This article will guide you through the process of determining if your Xterra's seat belt tension sensor is faulty and provide steps for troubleshooting and repair.

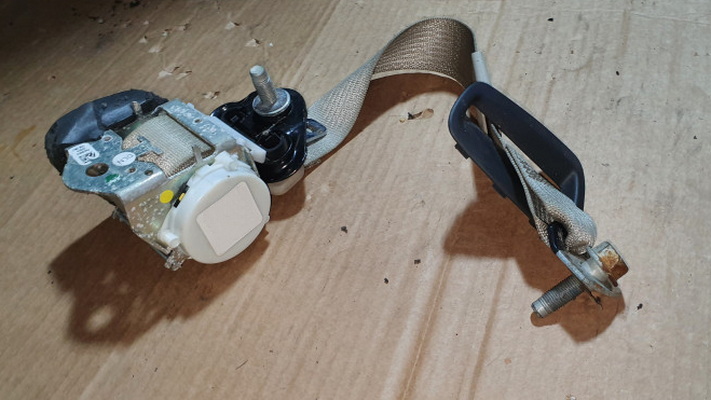

The seat belt tension sensor is part of the SRS and works in conjunction with the seat belt pre-tensioner to ensure that the seat belt is properly secured during a collision. This sensor monitors the tension in the seat belt and sends signals to the SRS module, which then activates the pre-tensioner to tighten the belt if necessary.
- Monitoring Tension: The sensor continuously monitors the tension in the seat belt to ensure it is within safe limits.
- Signaling the SRS Module: If the tension is not adequate, it sends a signal to the SRS module to activate the pre-tensioner.
- Ensuring Safety: Proper tension ensures that occupants are securely held in place during sudden stops or accidents, reducing the risk of injury.
If your Xterra's seat belt tension sensor is faulty, you may notice several symptoms:
1. Airbag Warning Light: The most common symptom is the illumination of the airbag warning light on your dashboard. This light indicates a problem within the SRS, which could be related to the seat belt tension sensor.
2. Seat Belt Pre-tensioner Malfunction: The seat belt may not tighten properly during sudden stops or accidents, compromising safety.
3. Diagnostic Trouble Codes (DTCs): Using an OBD-II scanner, you may find specific codes related to the seat belt tension sensor, such as the B1019 code in some Nissan models.
4. Error Messages: Depending on your vehicle's system, you might receive error messages on the dashboard display related to the seat belt or SRS.
To diagnose a faulty seat belt tension sensor, follow these steps:
- Read Codes: Connect an OBD-II scanner to your vehicle's diagnostic port to read any stored codes.
- Check for Sub-Codes: Look for any sub-codes that provide more specific information about the problem.
Video: How to Use an OBD-II Scanner
- Locate the Sensor: Refer to your service manual to find the location of the seat belt tension sensor on your Xterra.
- Visual Inspection: Check the sensor and its wiring for signs of damage, corrosion, or loose connections.
- Clean Connectors: Use electrical contact cleaner to ensure all connectors are clean and securely attached.
- Disconnect the Battery: Ensure safety by disconnecting the battery and waiting at least 10 minutes.
- Use a Multimeter: Check the continuity of the wiring between the sensor and the SRS module using a multimeter.
- Repair Damaged Wires: If you find any breaks or damage, use a wiring repair kit to fix them.
Video: Testing Wiring Continuity
- Reconnect the Battery: Once the wiring is checked and repaired, reconnect the battery.
- Measure Voltage: Use a multimeter to check the voltage at the sensor connector against the specifications in your service manual.
- Compare Readings: If the voltage is outside the specified range, it may indicate a problem with the SRS module or wiring.
- Clean and Secure Connectors: Ensure all connectors are clean and securely attached.
- Apply Dielectric Grease: Use dielectric grease to prevent corrosion on the connectors.
Video: Cleaning and Securing Connectors
- Purchase a Replacement: If the sensor is faulty, buy a replacement that matches your vehicle's specifications.
- Install the New Sensor: Follow the service manual to install the new sensor correctly.
- Ensure Proper Programming: If the issue persists, check if the SDM is correctly programmed for your vehicle.
- Reprogram the SDM: If necessary, have the SDM reprogrammed by a qualified technician.
Video: Checking the SDM
- Use an OBD-II Scanner: Once repairs are made, use an OBD-II scanner to clear the diagnostic trouble code.
- Test the Repair: Start the vehicle and check if the airbag warning light remains off.
Video: Clearing Diagnostic Codes
Diagnosing and repairing a faulty seat belt tension sensor in your Nissan Xterra requires careful attention to detail and adherence to safety protocols. By following these steps and using the right tools, you can ensure that your vehicle's SRS is functioning correctly, providing essential safety for you and your passengers.
The B1019 code is a manufacturer-specific diagnostic trouble code that typically indicates a fault with the seat belt tension sensor unit. It is often associated with issues in the Supplemental Restraint System (SRS) and can vary slightly depending on the vehicle's make and model[1].
It is not recommended to drive with the B1019 code. This code indicates a potential problem with the SRS, which may not function correctly in an accident, compromising safety[1].
To clear the B1019 code, use an OBD-II scanner to read and clear the codes. After clearing, start the vehicle and check if the airbag warning light remains off. If the code returns, further diagnosis is needed[1].
Common causes include a faulty sensor itself, wiring problems (such as damage or corrosion), connector issues, SRS module failure, and accidents that have deployed the pre-tensioners[1].
The cost to fix the B1019 code can vary widely depending on the cause. Simple wiring repairs might cost less than $100, while replacing the belt tension sensor or SRS module could range from $200 to $1000 or more[1].
