Load cell amplifiers are essential components in various measurement systems, particularly in industrial and commercial applications. They play a crucial role in converting the mechanical force applied to a load cell into a usable electrical signal. This article delves into the workings of load cell amplifiers, their components, applications, and the importance of calibration for accurate measurements.
A load cell is a transducer that converts force into an electrical signal. It is commonly used in weighing systems and force measurement applications. Load cells can be categorized into several types, including strain gauge load cells, hydraulic load cells, and pneumatic load cells. Each type operates on different principles but serves the same fundamental purpose: to measure weight or force accurately.
Load cell amplifiers function by conditioning the small electrical signals generated by load cells. When a load is applied, the load cell produces a minute voltage change, typically in the millivolt range. This signal is often too weak to be processed directly by most electronic systems, necessitating amplification.
The primary function of a load cell amplifier is to amplify the low-level signal from the load cell to a higher voltage level that can be easily read by data acquisition systems or controllers. This process involves several steps:
1. Signal Conditioning: The amplifier filters out noise and unwanted signals, ensuring that the output is a clean representation of the load cell's measurement.
2. Amplification: The conditioned signal is then amplified to a usable level, often in the range of 0-10V or 4-20mA.
3. Analog to Digital Conversion: In some systems, the amplified signal is converted from analog to digital format for further processing.
Load cells require an excitation voltage to operate. This voltage powers the internal circuitry of the load cell and is essential for generating the output signal. Load cell amplifiers often provide this excitation voltage, ensuring stable and accurate measurements.
Load cell amplifiers consist of several key components that work together to perform their functions effectively:
- Operational Amplifiers: These are the core components that amplify the input signal.
- Resistors and Capacitors: Used for filtering and stabilizing the signal.

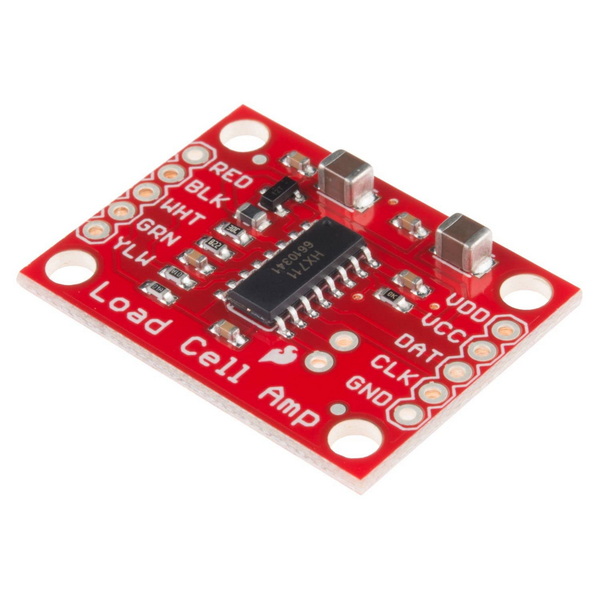

- Microcontrollers: In advanced systems, microcontrollers may be used for digital signal processing and communication.

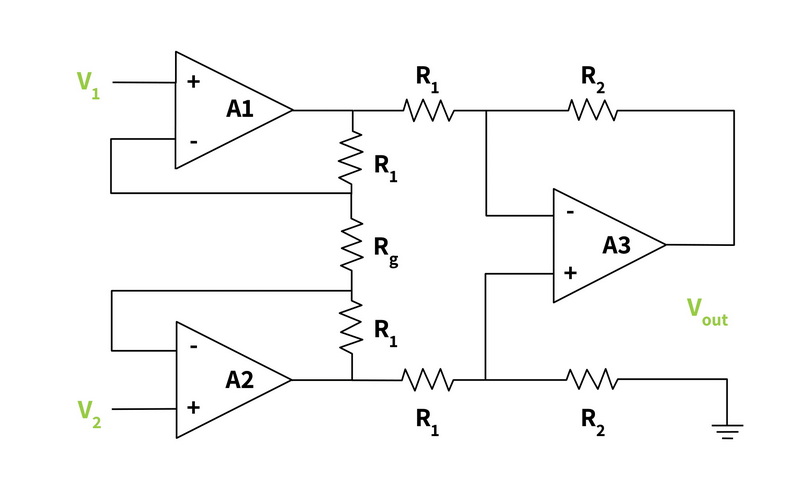

The configuration of a load cell amplifier circuit can vary based on the application. Common configurations include differential amplifiers and instrumentation amplifiers, which are designed to handle the low-level signals from load cells effectively.
Load cell amplifiers are widely used across various industries, including:
- Manufacturing: For weighing raw materials and finished products.
- Food and Beverage: In packaging and quality control processes.
- Medical: For precise measurements in laboratory settings.
- Aerospace: In testing and monitoring systems.
In the automotive industry, load cell amplifiers are used in crash testing to measure forces during impact. In the construction sector, they help monitor the weight of materials on cranes and hoists.
Calibration is critical for ensuring the accuracy of load cell measurements. It involves adjusting the amplifier to produce accurate readings based on known weights. Regular calibration is necessary to account for factors such as temperature changes and mechanical wear.
- Regular Calibration: Schedule periodic checks using certified weights.
- Temperature Compensation: Use amplifiers with built-in temperature compensation features to mitigate the effects of temperature fluctuations.
While load cell amplifiers are reliable, they can face challenges such as signal noise, drift, and temperature effects.
- Signal Noise: External electromagnetic interference can distort readings.
- Drift: Over time, the output may drift from the calibrated value.
- Shielding: Use shielded cables to reduce electromagnetic interference.
- Regular Maintenance: Perform routine checks and recalibrations to maintain accuracy.
The field of load cell technology is evolving, with innovations aimed at improving accuracy, reliability, and ease of use.
- Wireless Technology: The integration of wireless communication allows for remote monitoring and data collection.
- Smart Load Cells: These devices incorporate advanced sensors and processing capabilities, enabling real-time data analysis.
Load cell amplifiers are vital for accurate weight and force measurement in various applications. Understanding their operation, components, and the importance of calibration can significantly enhance measurement systems' reliability and accuracy. As technology advances, the future of load cell amplifiers looks promising, with innovations that will further improve their functionality and application.
Load cell amplifiers are used to amplify the small electrical signals generated by load cells, making them suitable for processing by data acquisition systems.
Calibration involves adjusting the amplifier to produce accurate readings based on known weights, typically using certified calibration weights.
Common types include strain gauge load cells, hydraulic load cells, and pneumatic load cells, each serving different applications.
Temperature changes can cause drift in measurements; thus, temperature compensation is essential for maintaining accuracy.
Industries such as manufacturing, food and beverage, medical, and aerospace frequently utilize load cell amplifiers for precise measurements.
