Load cells are fundamental components in modern weight measurement systems, serving as the backbone of countless industrial and commercial applications. These sophisticated devices transform mechanical force into measurable electrical signals, enabling precise weight and force measurements across various industries. From industrial scales to aerospace testing equipment, load cells play a crucial role in ensuring accuracy and reliability in force measurement applications.

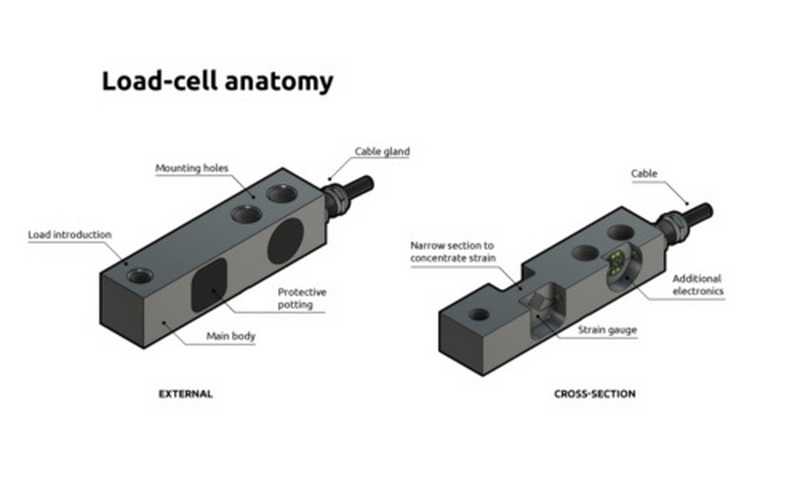

Load cells function as transducers, converting mechanical force into electrical signals through a precise arrangement of sensing elements. At their core, these devices utilize the principle of deformation under applied force, coupled with sophisticated sensing mechanisms to produce accurate measurements. The most common type employs strain gauges, which change their electrical resistance when subjected to mechanical stress. This change in resistance is proportional to the applied force, allowing for precise measurement of weight or force.
The world of load cells encompasses several distinct varieties, each designed for specific applications and environmental conditions:
1. Strain Gauge Load CellsThese represent the most widely used type, featuring metallic foil patterns that respond to mechanical stress. They offer excellent accuracy and reliability at a reasonable cost.
2. Hydraulic Load CellsUtilizing fluid pressure principles, these cells are ideal for harsh environments and applications requiring robust performance without electrical components.
3. Pneumatic Load CellsPerfect for clean room environments and applications where intrinsic safety is paramount, these cells use air pressure for measurement.
4. Capacitive Load CellsOffering high accuracy and stability, these devices measure force through changes in electrical capacitance.

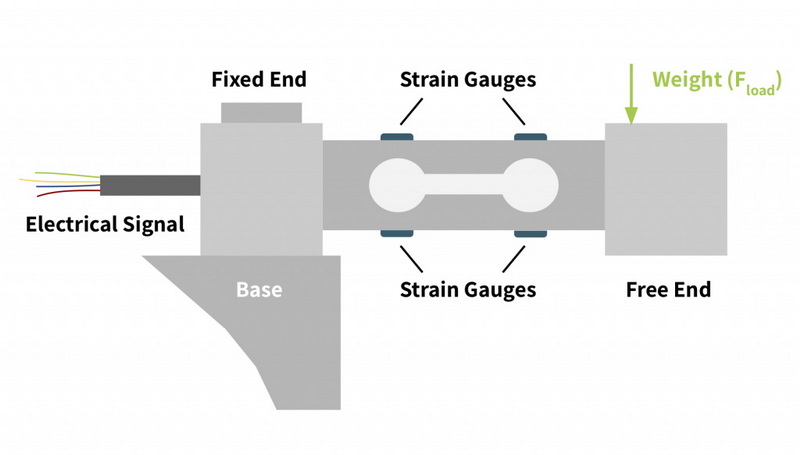

The operation of a load cell involves several sophisticated principles of physics and electrical engineering. When force is applied to a load cell, it creates mechanical stress in the sensing element. In strain gauge-based cells, this stress causes microscopic deformation in the gauge material, resulting in a change in electrical resistance. This resistance change is converted into a voltage signal through a Wheatstone bridge circuit configuration. The voltage output is typically in the millivolt range and requires amplification before being processed by measurement systems.
Load cells find applications across numerous industries and scenarios:
- Industrial Manufacturing: Quality control, process automation, and inventory management
- Transportation: Vehicle weighing, cargo loading, and aircraft weight measurement
- Healthcare: Patient monitoring systems and medical equipment
- Agriculture: Grain storage, livestock weighing, and harvest management
- Research and Development: Material testing and experimental force measurement
- Construction: Structural testing and monitoring
Proper calibration and maintenance are essential for ensuring accurate load cell performance. This involves regular verification against known standards, environmental protection, and periodic inspection of mounting hardware and electrical connections. Calibration procedures must account for various factors including:
- Temperature effects
- Creep and hysteresis
- Zero balance
- Linearity
- Environmental factors
Modern load cells incorporate numerous technological advances:
- Digital output capabilities
- Temperature compensation
- Self-diagnostics
- Wireless connectivity
- Enhanced environmental protection
- Improved signal processing
Load cells represent a crucial technology in modern measurement systems, combining precision engineering with sophisticated electronics to provide accurate force measurements. Their continued evolution and improvement drive advances in numerous industries, from manufacturing to scientific research.
A1: Modern load cells typically achieve accuracies between 0.03% to 0.25% of full scale, depending on the type and quality of the cell.
A2: With proper maintenance and usage, quality load cells can last 10-15 years or more in normal operating conditions.
A3: While minor issues with wiring or connections can be repaired, damage to the sensing element typically requires replacement of the entire cell.
A4: Key factors include temperature variations, improper mounting, overloading, and environmental conditions such as moisture and vibration.
A5: Calibration frequency depends on usage and application requirements, but typically ranges from every 6 months to annually for critical applications.
