Web tension control is a critical aspect of various manufacturing processes, particularly in industries that handle flexible materials such as paper, textiles, and films. Maintaining the correct tension ensures product quality and operational efficiency. This article delves into the workings of load cells in web tension control systems, their types, applications, and benefits.
Web tension refers to the force exerted on a material as it moves through processing machinery. Proper tension is vital for preventing defects like wrinkles, tears, and uneven coatings. Load cells are essential components in measuring and controlling this tension.

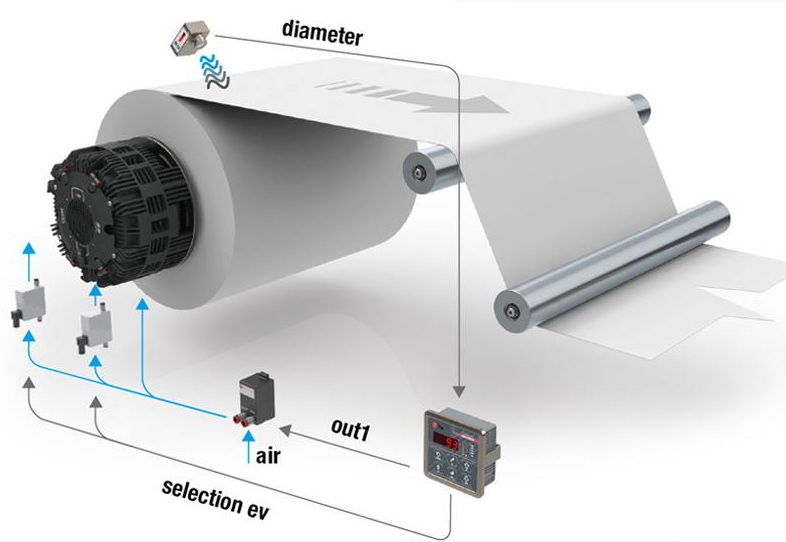

Load cells are sensors that convert mechanical force into an electrical signal. They are integral to web tension control systems, providing real-time feedback on the tension levels within the web. Here's how they work:

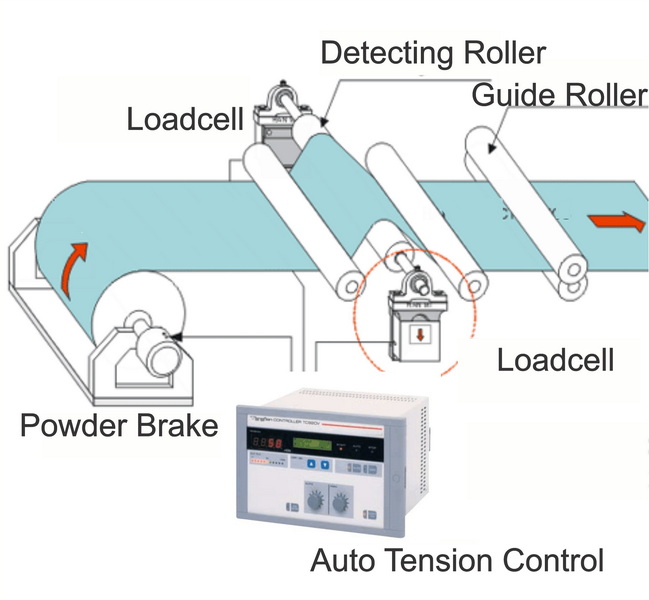

1. Measurement: Load cells measure the force exerted on them by the web as it passes over rollers or through processing equipment.
2. Feedback: The measured data is sent to a control system, which adjusts the operation of brakes or motors to maintain the desired tension level.
3. Control Loop: This creates a closed-loop system where continuous adjustments are made based on real-time data.
Various types of load cells can be employed depending on specific application requirements:
- Strain Gauge Load Cells: These are widely used due to their accuracy and reliability. They consist of a metal body with strain gauges attached that detect deformation under load.
- Hydraulic Load Cells: These utilize fluid pressure to measure force and are suitable for heavy-duty applications.
- Pneumatic Load Cells: These measure force through air pressure changes and are often used in environments where electrical devices might fail.
- Low Profile Load Cells: Designed for applications with limited space, these load cells maintain high accuracy while being compact.
Load cells play several key roles in web tension control systems:
- Real-time Monitoring: They continuously monitor web tension levels, allowing operators to detect deviations from set parameters immediately.
- Dynamic Control: Load cells enable dynamic control of web tension during various operational phases, including acceleration, deceleration, and constant speed.
- Automated Adjustments: Many modern load cell systems come equipped with data logging capabilities, allowing manufacturers to analyze historical data on tension levels and optimize processes over time.
Load cells find applications across multiple industries:
- Printing: Ensuring consistent ink application requires stable web tension.
- Coating: Uniform coating thickness depends on maintaining proper tension throughout the process.
- Slitting and Winding: Proper tension prevents material damage and ensures smooth operation.
Beyond these primary applications, load cells are also utilized in:
- Food Packaging: In food packaging lines, maintaining web tension is crucial for ensuring that packaging materials align correctly during sealing processes.
- Textile Manufacturing: In textile production, load cells help manage yarn tensions during weaving or knitting processes to prevent breakage or defects.
- Film Production: In film manufacturing, precise control over web tension is necessary for achieving consistent thickness and quality throughout the production run.
Using load cells for web tension control offers several advantages:
- Improved Product Quality: By maintaining optimal web tension, manufacturers can reduce defects and enhance product quality.
- Increased Efficiency: Automated adjustments based on real-time data lead to improved productivity and reduced waste.
- Versatility: Load cells can be integrated into various machines and processes without significant modifications.
With advancements in technology, many load cell systems now include sophisticated software that allows for enhanced data analysis. This capability enables manufacturers to:
- Track performance metrics over time
- Identify trends that may indicate potential issues
- Optimize production schedules based on historical data
Despite their benefits, several challenges exist when using load cells:
- Environmental Factors: Dust, moisture, and temperature fluctuations can affect load cell performance. For instance, strain gauge load cells may experience drift if exposed to high humidity levels without proper sealing.
- Calibration Needs: Regular calibration is necessary to maintain accuracy over time. This involves periodic testing against known standards to ensure that readings remain consistent.
- Installation Complexity: Proper installation is crucial for accurate measurements; incorrect alignment can lead to erroneous readings. It's essential that operators receive adequate training on installation techniques.
To ensure longevity and reliability, regular maintenance of load cell systems is critical. This includes:
- Inspecting connections and wiring for wear or damage
- Cleaning sensors to remove dust or contaminants
- Checking calibration settings periodically
The field of load cell technology has seen significant innovations in recent years. Some notable advancements include:
- Wireless Load Cells: These eliminate the need for cumbersome wiring, making installation easier and reducing potential points of failure due to cable damage.
- Smart Load Cells: Equipped with built-in processors, these devices can perform complex calculations on-site and provide advanced analytics directly from the sensor.
- Integration with IoT Systems: Many modern load cells can now communicate with IoT platforms, allowing for remote monitoring and control via cloud-based applications.
To illustrate the effectiveness of load cells in web tension control systems, consider the following case studies:
A major printing company faced issues with inconsistent ink application due to fluctuating web tensions. By integrating strain gauge load cells into their process, they achieved real-time monitoring and adjustments. As a result, they reported a 30% reduction in waste due to misaligned prints.
A textile manufacturer struggled with yarn breakage during weaving operations. After implementing hydraulic load cells to monitor yarn tensions dynamically, they were able to reduce breakage rates by 40%, leading to increased production efficiency and reduced costs.
Load cells are essential components in web tension control systems across various industries. By providing accurate measurements and enabling automated adjustments, they help prevent tension imbalances that can lead to significant production issues. As technology continues to evolve, the integration of advanced features will likely enhance the effectiveness of load cells even further. The ongoing development of smart technologies promises not only improved performance but also greater insights into manufacturing processes through enhanced data analytics.
A web tension load cell is a sensor used to measure the force exerted on a moving web material, converting this mechanical force into an electrical signal for monitoring and control purposes.
By continuously monitoring web tension levels and allowing for immediate adjustments, load cells help prevent defects such as wrinkles or tears in the material, ensuring consistent product quality.
Yes, low profile load cells are designed for easy integration into existing machinery without significant modifications due to their compact design.
Industries such as printing, textiles, packaging, and any other sectors that process flexible materials benefit from using web tension load cells for improved quality control.
Selecting the right load cell involves considering factors such as maximum expected tension, environmental conditions, mounting requirements, and whether you need additional features like data logging capabilities.
