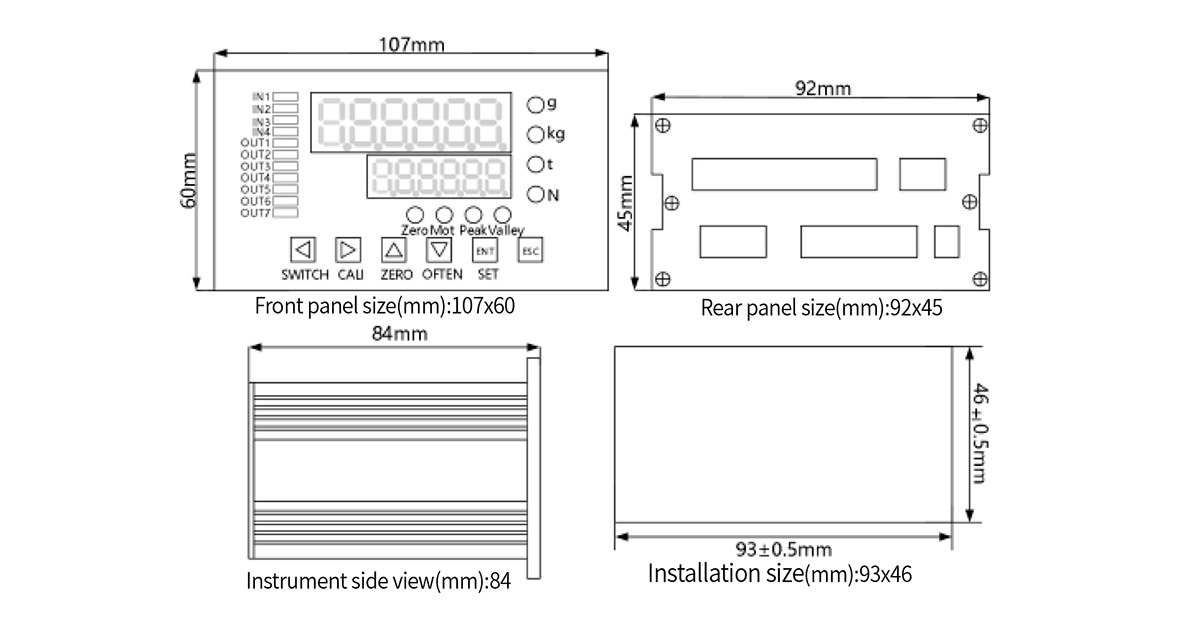

| Dimensions（Unit：mm） |

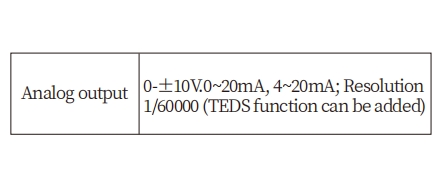

| Function Feature | Optional Specifications |
▶ Double-row 6-digit digital tube display ▶ RS232 and RS485 communication at the same time, can add analog output on this basis. ▶ Switching with 5 transistor outputs, 2 relay outputs and 4 inputs ▶ Peak and valley measurement, upper and lower limit alarms |  |
| Specifications |
Specifications | Technique |
Input Range | 0.4~6mV/V |
Display | Double row 6 seats LED |
Display Accuracy | 1/100000 |
| Sensor Excitation Voltage | 5VDC±2%, 100m A(up to 6 pcs 350Ω sensors ) |
Power Supply | DC: 12V-30V |
Protocol Type | Modbus RTU、ASCII and free protocols |
Operation Temp. Range | -30~60℃ |
A/D Performance | 24 seats, Delta-Sigma method |
Output Rate | 10,40,80,120,200,400,600,800, 1200,2400,4800t/s |
Band Rate | 1200,2400,4800,9600,19200,38400, 57600,115200,230400,460800,921600 |
Withstand Voltage | 1 minute at 2000V AC50/60Hz |
Surrounding Environmen | Operating temperature: -10~55℃; Storage temperature: -25~65℃ Operating humidity:35~85%RH; Storage humidity: 35~85%RH |
| Switching Value | 5-point transistor output (maximum 1A), 2-point relay output, 4-point input |

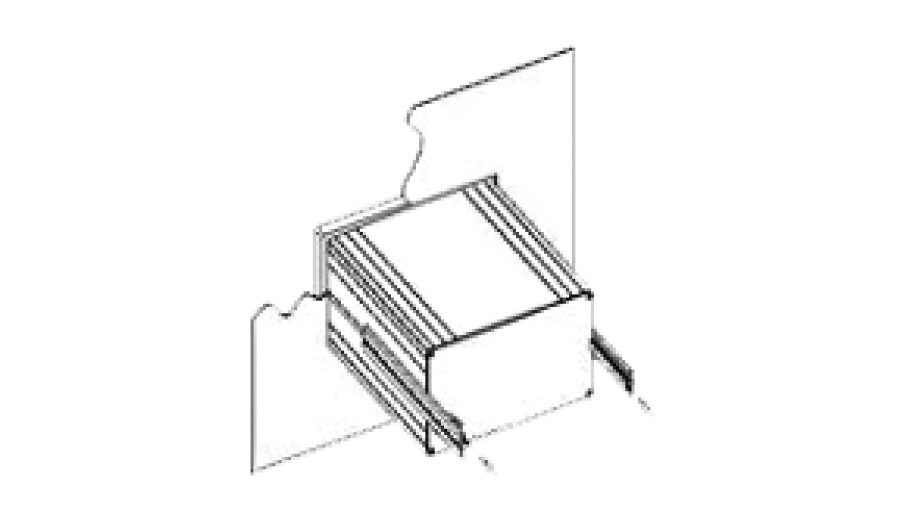

| Installation |
| Delivery Configurations |
