Tension load cells are crucial components in various industries, providing accurate measurements of pulling forces. They are widely used in applications ranging from material testing to industrial weighing systems. This article explores the differences between low-cost tension load cells and premium models, examining their construction, performance, applications, and overall value.

Understanding Tension Load Cells

Tension load cells are designed to measure tensile forces, converting mechanical strain into electrical signals. They typically utilize strain gauges arranged in a Wheatstone bridge configuration. When a load is applied, the deformation of the load cell alters the resistance of the strain gauges, producing an electrical signal proportional to the force applied.

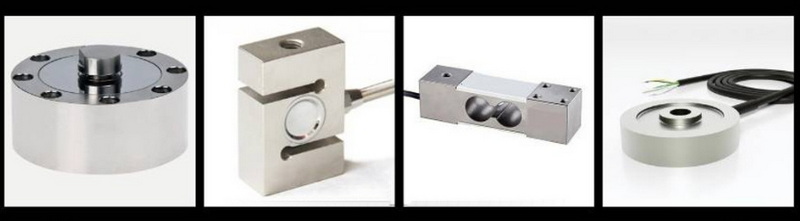

Types of Tension Load Cells

- S-Type Load Cells: These are versatile and can measure both tension and compression forces. Their shape resembles the letter "S," making them suitable for suspended applications.

- Tension Links: Specifically designed for measuring tensile loads in overhead crane systems.

- Canister Load Cells: Robust cylindrical devices used for both tension and compression measurements.

- Pancake Load Cells: Low-profile devices ideal for applications with limited space that require high accuracy.

Construction and Materials

The primary difference between low-cost and premium tension load cells lies in their construction materials and design features:

- Low-Cost Models: Often made from aluminum or lower-grade stainless steel, these load cells may sacrifice some durability and accuracy for affordability. They are typically designed for general-purpose applications where extreme precision is not critical.

- Premium Models: Constructed from high-grade stainless steel or specialized alloys, premium tension load cells offer enhanced durability, higher accuracy, and better performance under varying environmental conditions. They often feature advanced designs that minimize off-axis loading effects and improve signal stability.

Performance Comparison

When comparing low-cost tension load cells to premium models, several performance metrics come into play:

Feature	Low-Cost Tension Load Cells	Premium Tension Load Cells
Accuracy	Moderate (±0.5% to ±1%)	High (±0.1% or better)
Temperature Stability	Limited	Excellent
Load Capacity	Lower limits (e.g., up to 500 kg)	Higher limits (e.g., up to 100 tons)
Environmental Protection	Basic (IP65)	Advanced (IP67/IP68)
Response Time	Slower	Faster
Calibration Frequency	Less frequent	More frequent

Applications

Both types of tension load cells find use in various applications:

- Low-Cost Tension Load Cells:

- Ideal for basic industrial weighing tasks.

- Suitable for educational purposes and small-scale experiments.

- Commonly used in non-critical applications where cost is a significant factor.

- Premium Tension Load Cells:

- Essential in high-stakes environments such as aerospace testing, structural integrity assessments, and heavy-duty industrial applications.

- Preferred for precise material testing where accuracy is paramount.

- Used in safety-critical applications like crane operations and lifting equipment.

Cost Considerations

While low-cost tension load cells may seem appealing due to their price point, it is essential to consider the total cost of ownership:

- Initial Investment: Low-cost models have a lower upfront cost but may require more frequent replacements or repairs due to lower durability.

- Long-Term Value: Premium models often come with longer lifespans and better performance, potentially leading to lower costs over time despite a higher initial investment.

Conclusion

In summary, while low-cost tension load cells offer an economical solution for basic applications, they often lack the accuracy, durability, and advanced features found in premium models. For critical applications requiring precise measurements and reliability, investing in a premium tension load cell is advisable. Understanding your specific needs—whether they are budget-driven or performance-oriented—will guide you in selecting the right tension load cell for your application.

FAQ

1. What is a tension load cell?

A tension load cell is a type of force sensor that measures pulling forces applied to it by converting mechanical force into an electrical signal.

2. How do low-cost tension load cells perform compared to premium models?

Low-cost tension load cells generally offer moderate accuracy and durability but may lack the advanced features and reliability of premium models designed for critical applications.

3. What are common applications for tension load cells?

Tension load cells are widely used in industrial weighing systems, material testing labs, cable tension monitoring in construction, and various other applications requiring precise measurement of tensile forces.

4. How can I ensure accurate measurements with a tension load cell?

To ensure accuracy, select a load cell appropriate for your application's requirements regarding capacity, environmental conditions, and calibration frequency.

5. Are low-cost tension load cells suitable for industrial use?

While they can be used in industrial settings, low-cost tension load cells are best suited for non-critical applications where extreme precision is not necessary.
