Installing a 1000 lb load cell tension correctly is crucial for ensuring accurate measurements in various applications, from industrial scales to structural monitoring. This guide will walk you through the entire installation process, covering everything from pre-installation planning to post-installation testing and calibration.
A load cell is a transducer that converts a force into an electrical signal. Tension load cells are specifically designed to measure tensile forces, making them ideal for applications such as weighing suspended loads or measuring forces in tension testing.
- S-Type Load Cells: Commonly used for tension and compression measurements.
- Shear Beam Load Cells: Typically used in scales and platform applications.
- Single Point Load Cells: Often used in smaller scales where space is limited.
Before beginning the installation of your 1000 lb load cell tension, consider the following:
- Mounting Location: Ensure the area is free from vibrations and environmental factors that could affect accuracy.
- Load Direction: Identify the direction in which the load will be applied. Most load cells have an arrow indicating the correct loading direction.
- Tools Required:
- Level
- Torque wrench
- Drill (if mounting holes are needed)
- Screwdrivers
- Safety chains or rods for added security
- Clean the surface thoroughly to remove any debris, grease, or contaminants that may affect load transfer.
- Ensure that the surface is level within $$ \pm 0.1 \, \text{mm} $$.
- Place the load cell in its intended location with the alignment arrow pointing towards the load direction.
- If using a base plate, ensure it is flat and securely mounted.
- Use the load cell as a template to mark drilling points for mounting holes.
- Drill holes according to specifications provided by the manufacturer.

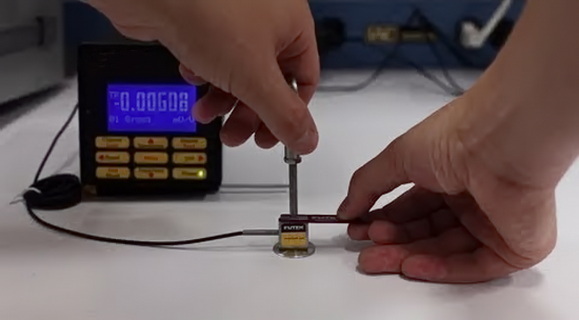

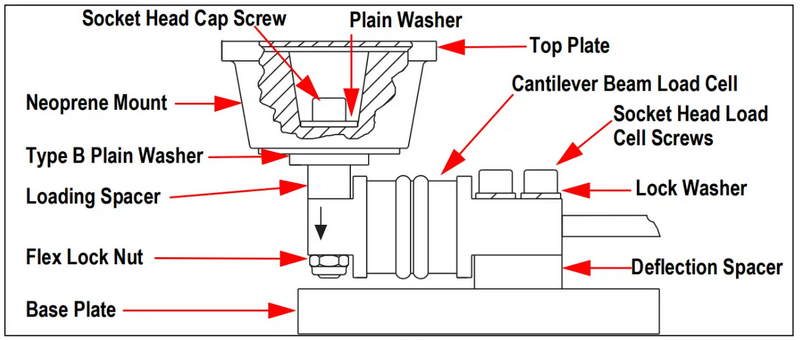

- Attach mounting brackets or hardware securely to the surface using high-strength bolts.
- Use a torque wrench to tighten bolts to manufacturer specifications (typically around 75 ft-lbs).
- Attach the load cell to the mounting hardware, ensuring it is seated properly.
- Make sure that all connections are secure and that there is no undue strain on the cables.
- Connect the load cell wiring to a junction box according to color codes specified by the manufacturer.
- Ensure that all connections are tight and protected from moisture or damage.
- Install safety chains or rods as a secondary support system in case of failure.
- Ensure that there is enough clearance between moving parts and fixed structures.
After installation, calibrating your load cell is essential for accurate readings. Follow these steps:
1. Zeroing: Remove any loads from the system and ensure that the display reads zero.
2. Applying Known Weights: Gradually apply known weights (preferably around 25% of capacity) and record readings.
3. Adjusting Calibration: Adjust settings on your indicator until readings match known weights accurately.
4. Testing: Repeat tests with various weights to ensure consistency across different loads.
- Incorrect Orientation: Always check that the load direction arrow is aligned with applied force.
- Over-tightening Bolts: This can damage both the load cell and mounting hardware, leading to inaccurate readings.
- Neglecting Environmental Factors: Ensure that your installation site minimizes exposure to extreme temperatures or moisture.
Correctly installing a 1000 lb load cell tension requires careful planning, precise execution, and thorough calibration. By following this guide, you can ensure accurate measurements and reliable performance from your load cell system.
A load cell is a sensor that converts force into an electrical signal, commonly used for measuring weight or force in various applications.
Ensure that it is level, aligned with the load direction, securely mounted, and properly wired according to manufacturer specifications.
Calibration should be performed regularly, ideally before each use or after significant changes in environmental conditions or after maintenance work.
Yes, provided you have basic mechanical skills and tools; however, consulting with a professional can ensure optimal installation and performance.
Check for proper alignment, ensure there are no mechanical obstructions, verify electrical connections, and recalibrate if necessary.
