Load cells are essential devices used to measure force or weight in various applications, from industrial scales to research laboratories. They convert mechanical force into an electrical signal, allowing for precise measurements. Understanding how to read and interpret load cell data is crucial for ensuring accuracy in measurements and maintaining the integrity of various processes.
Load cells come in various types, each designed for specific applications. The most common types include:
- Strain Gauge Load Cells: These are the most widely used and operate based on the principle of strain gauges, which change resistance when deformed.
- Hydraulic Load Cells: These use fluid pressure to measure force and are often used in heavy-duty applications.
- Pneumatic Load Cells: These measure force through air pressure and are suitable for environments where electrical devices may pose a risk.

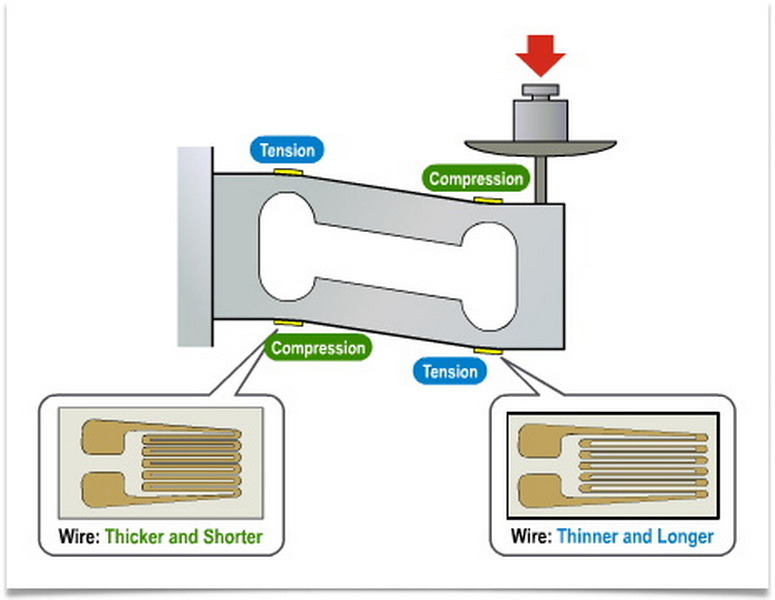

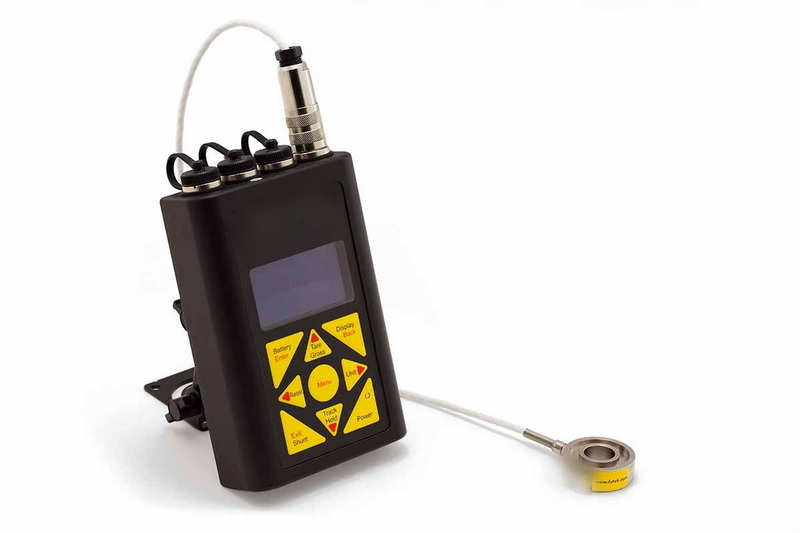

Load cells function by converting mechanical force into an electrical signal. When a load is applied, the internal structure of the load cell deforms slightly, causing a change in resistance in the strain gauges. This change is then converted into a voltage signal that can be read by a digital indicator or a computer system.

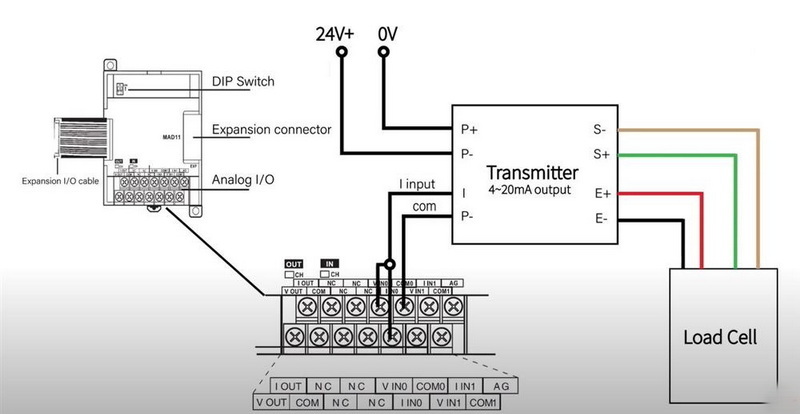

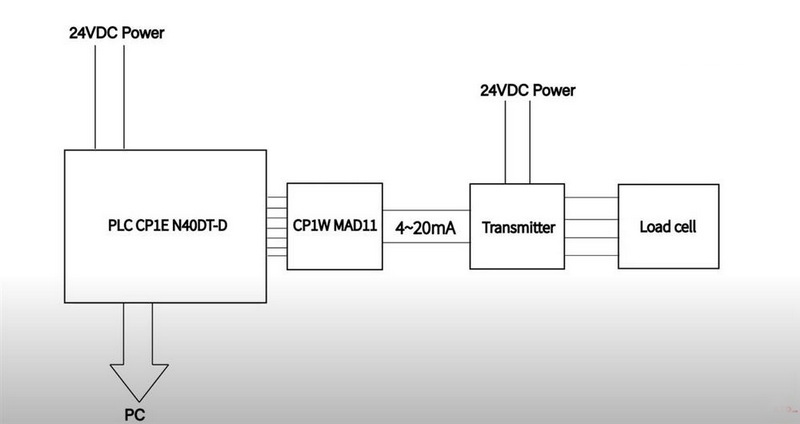

The output from a load cell is typically a small voltage signal that needs to be amplified and processed. Signal conditioning is essential to filter out noise and ensure accurate readings. This process often involves using an amplifier to boost the signal to a usable level.
To read a load cell, one must understand the specifications provided in the load cell's datasheet. Key parameters include:
- Full Scale Output (FSO): The maximum output voltage at the rated capacity.
- Zero Balance: The output reading when no load is applied.
- Hysteresis: The maximum deviation in output when the load is increased and then decreased.
Calibration is vital for ensuring that load cells provide accurate measurements. Over time, load cells can drift from their calibrated state due to wear and environmental factors.
1. Prepare the Load Cell: Ensure it is clean and free from any obstructions.
2. Apply Known Weights: Use certified weights to apply known loads to the load cell.
3. Record the Output: Measure the output voltage for each known weight.
4. Adjust the Calibration: Use the recorded data to adjust the load cell's output to match the known weights.
Load cells can encounter various issues that affect their performance. Common problems include:
- Drifting Readings: This can occur due to temperature changes or mechanical stress. Regular calibration can help mitigate this issue.
- Negative Readings: Often caused by incorrect installation or orientation. Ensure the load cell is installed according to the manufacturer's specifications.
To test a load cell, one can use a digital multimeter to check the output resistance and ensure it matches the specifications in the datasheet. Additionally, applying known weights and comparing the output can help verify accuracy.
Load cells are widely used in industries such as manufacturing, food processing, and logistics. They are integral to weighing systems, quality control, and automated processes.
In research settings, load cells are used to measure forces in experiments, ensuring precise data collection for various scientific studies.
Understanding how to read and interpret load cells is crucial for anyone involved in industries that rely on accurate weight and force measurements. By familiarizing oneself with the types of load cells, their operation, and the importance of calibration and troubleshooting, one can ensure the reliability and accuracy of measurements.
The lifespan of a load cell can vary based on usage and environmental conditions, but with proper care, they can last many years.
To troubleshoot, check the wiring, ensure proper installation, and test the load cell with known weights to verify accuracy.
Common types include strain gauge, hydraulic, and pneumatic load cells, each suited for different applications.
Calibration involves applying known weights, recording the output, and adjusting the load cell's settings to match the known values.
Load cells are used in various industries, including manufacturing, food processing, logistics, and research laboratories.
