Load cells are essential components in various industries, providing accurate measurements of force or weight. Testing these devices is crucial to ensure their reliability and accuracy. This article will explore the methods for testing load cells, the importance of calibration, and how to maintain these devices for optimal performance.
A load cell is a transducer that converts a force into an electrical signal. This signal can then be measured and recorded, allowing for precise weight measurements in applications ranging from industrial scales to medical devices.
There are several types of load cells, including:
- Strain Gauge Load Cells: The most common type, using strain gauges to measure deformation.
- Hydraulic Load Cells: Utilize fluid pressure to measure weight.
- Pneumatic Load Cells: Use air pressure for measurement.
- Capacitive Load Cells: Measure changes in capacitance to determine weight.
Testing load cells is vital for ensuring accuracy and reliability. Regular testing helps identify any issues that may affect performance, such as drift, non-linearity, or hysteresis. By maintaining accurate measurements, businesses can avoid costly errors and ensure compliance with industry standards.
The first step in testing a load cell is a thorough visual inspection. Look for signs of physical damage, such as cracks, corrosion, or loose connections. Ensure that the load cell is properly mounted and that there are no obstructions affecting its operation.
Electrical testing involves checking the load cell's output signal. This can be done using a multimeter to measure the resistance and output voltage. Comparing these readings to the manufacturer's specifications can help identify any discrepancies.
Calibration is a critical aspect of load cell testing. It involves applying known weights to the load cell and recording the output signal. This process helps establish a relationship between the applied force and the output signal, ensuring accurate measurements.
Calibration is essential for maintaining the accuracy of load cells. Over time, load cells can drift from their original calibration due to factors such as temperature changes, mechanical stress, or aging components. Regular calibration ensures that the load cell provides accurate readings.
The calibration process typically involves the following steps:
1. Preparation: Ensure the load cell is clean and free from debris.

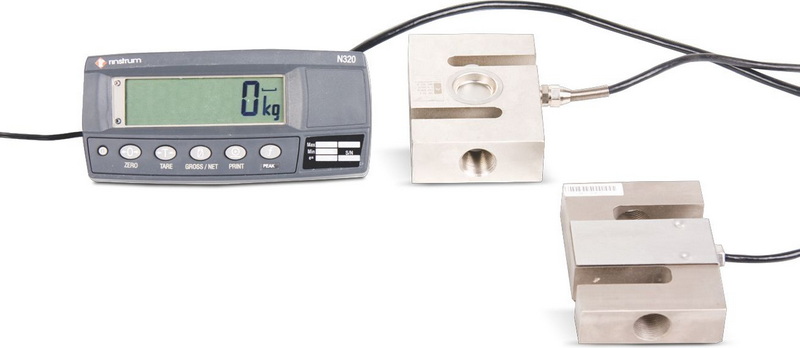

2. Setup: Connect the load cell to a calibration device or indicator.
3. Weight Application: Gradually apply known weights to the load cell, recording the output signal at each step.
4. Adjustment: If the output does not match the expected values, adjustments may be necessary to bring the load cell back into calibration.
Environmental conditions can significantly impact load cell performance. Factors such as temperature, humidity, and vibration can affect the accuracy of measurements. It is essential to consider these factors when installing and testing load cells.
Mechanical factors, such as misalignment or improper mounting, can also affect load cell performance. Ensuring that the load cell is correctly installed and aligned is crucial for accurate measurements.
Load cells can experience various issues, including:
- Drift: A gradual change in output signal over time.
- Non-linearity: The output signal does not correspond linearly to the applied weight.
- Hysteresis: The difference in output when the load is applied and removed.
To troubleshoot these issues, consider the following steps:
- Recalibrate: If drift or non-linearity is detected, recalibrating the load cell may resolve the issue.
- Check Connections: Ensure that all electrical connections are secure and free from corrosion.
- Inspect for Damage: Look for any physical damage that may affect performance.
Regular maintenance is essential for ensuring the longevity and accuracy of load cells. This includes:
- Cleaning: Keep the load cell clean and free from debris.
- Inspection: Conduct regular visual inspections to identify any signs of wear or damage.
- Calibration: Schedule regular calibration to maintain accuracy.
Be aware of signs that may indicate the need for maintenance, such as:
- Fluctuating readings
- Physical damage to the load cell
- Inconsistent performance
Testing and maintaining load cells is crucial for ensuring accurate measurements in various applications. By understanding the testing methods, calibration processes, and maintenance practices, businesses can ensure their load cells operate effectively and reliably.
A load cell is a device that converts a force or weight into an electrical signal, allowing for precise measurements in various applications.
Load cells should be tested regularly, with calibration recommended at least once a year or more frequently depending on usage and environmental conditions.
Load cells are commonly used in industrial scales, medical devices, automotive testing, and any application requiring precise weight measurements.
Environmental factors such as temperature, humidity, and vibration can impact the accuracy and reliability of load cell measurements.
If a load cell is not functioning correctly, check for physical damage, ensure all connections are secure, and consider recalibrating the device. If issues persist, consult a professional for further assistance.
