Beam load cells are essential components in various weighing systems, converting mechanical force into an electrical signal. They play a crucial role in industries ranging from manufacturing to logistics, ensuring accurate weight measurements. Understanding how these devices function is vital for anyone involved in engineering, manufacturing, or quality control.

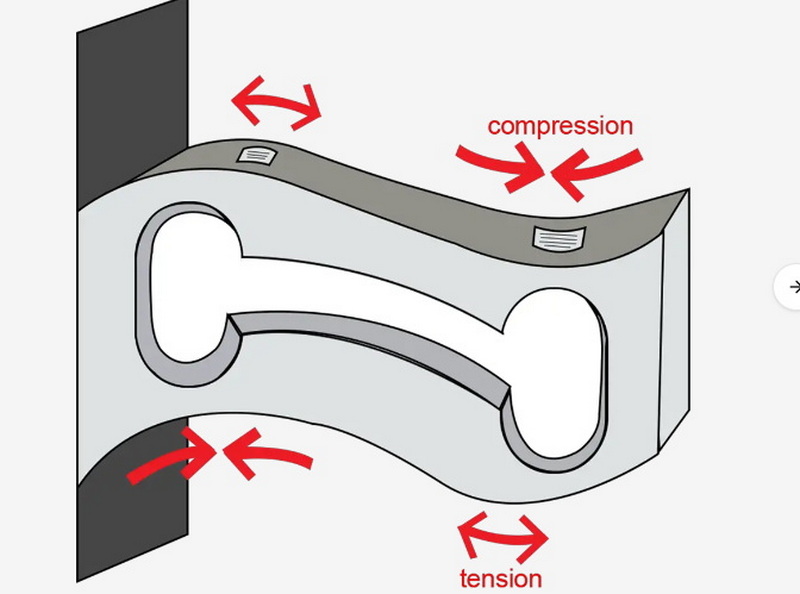

At the core of a beam load cell's operation is the principle of strain gauge technology. When a load is applied to the beam, it experiences deformation. This deformation is measured by strain gauges attached to the beam. The strain gauges change their electrical resistance in response to the bending of the beam, which is then converted into an electrical signal using a Wheatstone bridge circuit.
- Strain Gauges: These are small sensors that detect changes in resistance due to deformation.
- Wheatstone Bridge: This circuit configuration allows for precise measurement of the resistance changes, translating them into a readable electrical signal.
There are primarily two types of beam load cells: bending beam load cells and shear beam load cells.
These load cells are designed to measure the bending moment caused by an applied load. They are typically used in applications where the load is applied at a distance from the support.
Shear beam load cells measure the shear force applied to the beam. They are often used in industrial applications, such as tank and hopper scales, due to their robustness and ability to handle high capacities.
While both types serve similar purposes, they differ in their design and application. Bending beam load cells are more suited for lighter loads, while shear beam load cells excel in heavy-duty applications.
Beam load cells are widely used across various sectors:
- Industrial Applications: They are integral in manufacturing processes, ensuring that products meet weight specifications.
- Commercial Uses: Retail scales and shipping scales rely on beam load cells for accurate measurements.
- Research and Development: In laboratories, beam load cells are used for experiments requiring precise force measurements.
Beam load cells offer several advantages:
- Accuracy and Reliability: They provide precise measurements, which are crucial for quality control.
- Versatility in Applications: Their design allows them to be used in various settings, from small scales to large industrial systems.
While beam load cells are highly effective, there are challenges to consider:
- Calibration and Maintenance: Regular calibration is necessary to ensure accuracy over time.
- Environmental Factors: Temperature, humidity, and other environmental conditions can affect performance.
The future of beam load cells looks promising with advancements in technology:
- Innovations in Design and Materials: New materials and designs are being developed to enhance performance and durability.
- Integration with IoT and Smart Technologies: Load cells are increasingly being integrated into smart systems for real-time monitoring and data analysis.
Beam load cells are vital components in modern weighing systems, providing accurate and reliable measurements across various industries. Their ability to convert mechanical force into electrical signals makes them indispensable in manufacturing, logistics, and research. As technology continues to evolve, the future of beam load cells will likely see further innovations, enhancing their functionality and application.
Bending beam load cells measure the bending moment caused by a load, while shear beam load cells measure the shear force. Bending beam load cells are typically used for lighter loads, whereas shear beam load cells are designed for heavier applications.
Calibration involves applying known weights to the load cell and adjusting the output signal to match the expected values. This process ensures accuracy in measurements.
Beam load cells are used in various industries, including manufacturing, logistics, retail, and research laboratories.
Yes, many beam load cells are designed to withstand harsh conditions, including extreme temperatures and humidity. However, it is essential to select the appropriate model for specific environmental conditions.
Common failure modes include mechanical damage, electrical issues, and calibration drift. Regular maintenance and proper handling can help mitigate these risks.
