Load cells are essential components in modern weighing systems, converting force into measurable electrical signals. Among the various types of load cells, the bending beam load cell stands out due to its accuracy, reliability, and versatility. This article delves into the workings of bending beam load cells, their applications, advantages, and future trends in technology.

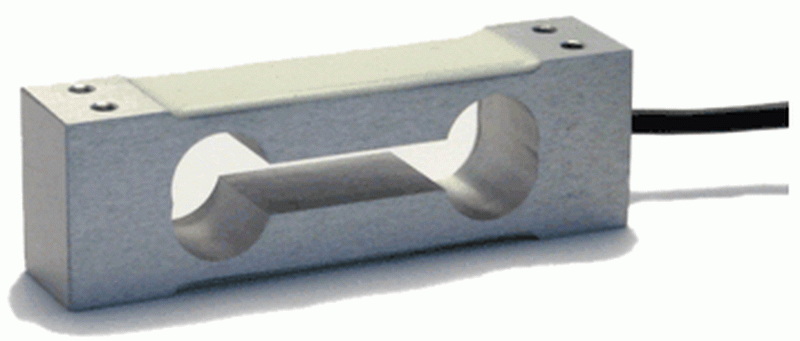

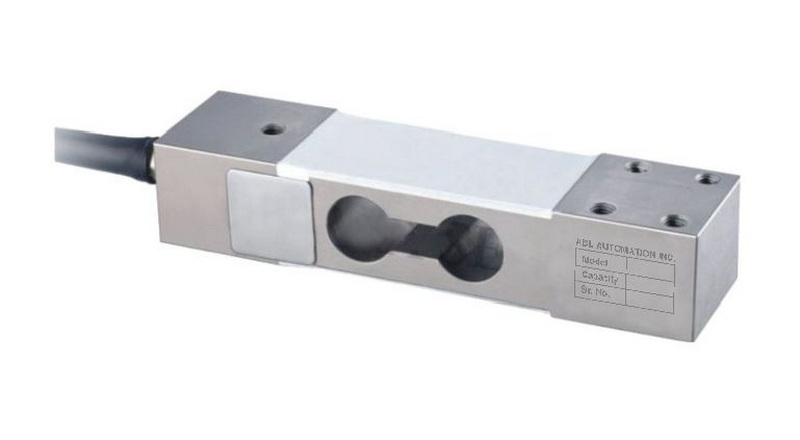

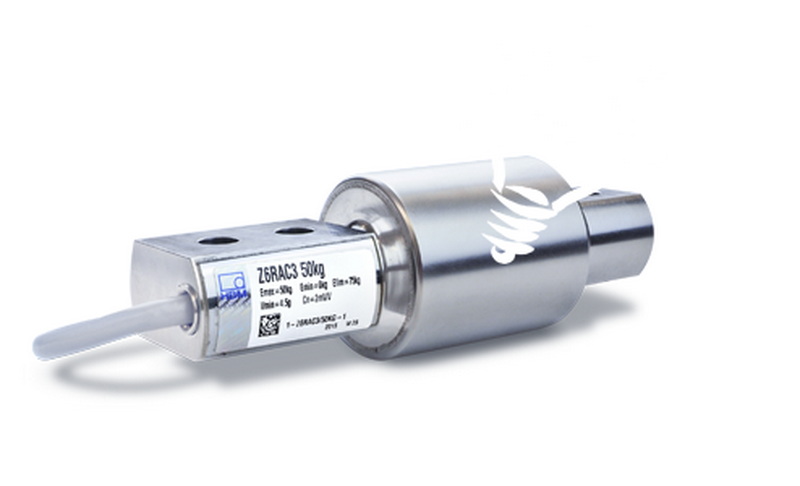

A bending beam load cell is a type of force sensor that measures the bending and deflection of a specially designed beam when a force is applied. The structure typically consists of a metal beam with strain gauges attached to it. When a load is applied, the beam bends, and the strain gauges detect this deformation, allowing for precise weight measurement.
Bending beam load cells differ from shear beam load cells and other types in their design and application. While shear beam load cells measure shear forces, bending beam load cells are designed to measure bending moments, making them suitable for a wide range of applications.

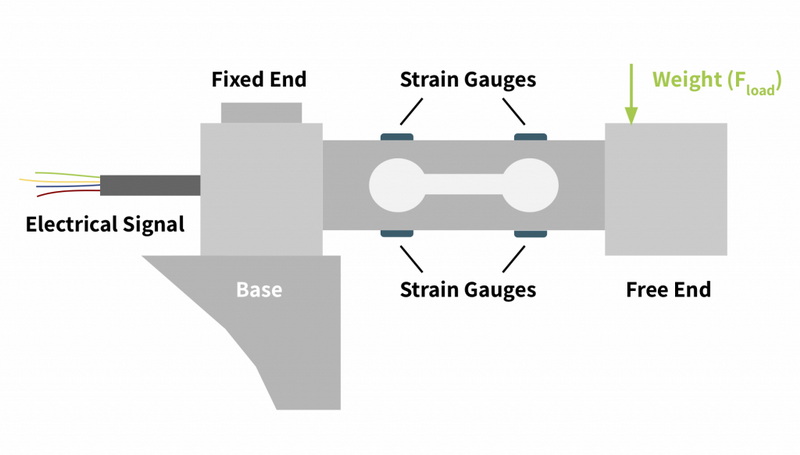

The operation of a bending beam load cell is based on the principle of mechanical deformation. When a force is applied to the load cell, the beam experiences elastic deformation. This deformation is measured by strain gauges, which are bonded to the beam.
The bending beam load cell operates on the principle of a Wheatstone bridge circuit. As the beam bends, the strain gauges change their resistance. This change in resistance is converted into an electrical signal, which is proportional to the applied load.
Strain gauges are critical components in bending beam load cells. They are sensitive to changes in length and can detect minute deformations. When the beam bends, the strain gauges experience tension and compression, leading to a measurable change in resistance.
The electrical signal generated by the strain gauges is then amplified and processed to provide a readable output, typically in units of weight. This conversion process is crucial for accurate weight measurement in various applications.
Bending beam load cells are widely used in various industries due to their versatility and reliability. Some common applications include:
- Industrial Applications: Used in scales for weighing materials in manufacturing and logistics.
- Medical and Laboratory Uses: Employed in medical devices for precise weight measurements.
- Commercial Weighing Systems: Found in retail scales and other commercial weighing applications.
Bending beam load cells offer several advantages, making them a popular choice in many applications:
- Accuracy and Reliability: They provide precise measurements, essential for quality control in manufacturing.
- Cost-Effectiveness: Compared to other load cell types, bending beam load cells are often more affordable.
- Versatility in Various Environments: They can be used in different settings, from industrial to laboratory environments.
Proper installation and calibration are crucial for the accurate functioning of bending beam load cells.
1. Mounting: Ensure the load cell is securely mounted to prevent movement.
2. Wiring: Connect the load cell to the appropriate electronic measuring device.
3. Testing: Conduct initial tests to verify functionality.
Calibration is essential to ensure that the load cell provides accurate readings. This process involves comparing the load cell's output against known weights and adjusting it accordingly.
While bending beam load cells are reliable, several factors can affect their performance:
- Environmental Factors: Temperature, humidity, and vibration can impact measurements.
- Maintenance and Troubleshooting Tips: Regular maintenance is necessary to ensure longevity and accuracy. Users should check for signs of wear and recalibrate as needed.
The future of bending beam load cells looks promising, with several trends emerging:
- Innovations in Strain Gauge Technology: Advances in materials and design are leading to more sensitive and durable strain gauges.
- Integration with IoT and Smart Systems: Load cells are increasingly being integrated into smart systems for real-time monitoring and data analysis.
Bending beam load cells play a vital role in various industries, providing accurate and reliable weight measurements. As technology advances, these load cells will continue to evolve, offering even greater precision and versatility.
The main components include the metal beam, strain gauges, and the electronic circuitry that converts the mechanical deformation into an electrical signal.
Calibration involves applying known weights to the load cell and adjusting the output to match these weights, ensuring accurate measurements.
They are commonly used in industrial weighing systems, medical devices, and commercial scales.
Temperature changes can cause expansion or contraction of the materials, potentially leading to measurement inaccuracies.
With proper maintenance, bending beam load cells can last many years, but their lifespan can vary based on usage and environmental conditions.
