Cranes are essential pieces of equipment in various industries, from construction and manufacturing to shipping and logistics. One crucial component that ensures the safe and efficient operation of cranes is the load cell. But how does a crane load cell work, and why is it so important? In this comprehensive guide, we'll explore the functionality, applications, types, installation, and comparison of crane load cells, providing you with a deep understanding of these vital devices.
At its core, a crane load cell is a transducer that converts force or load into an electrical signal. This conversion is the fundamental principle behind how crane load cells work. When a load is applied to the cell, it undergoes a slight deformation, which is then measured and translated into an electrical output proportional to the weight of the load.
Most modern crane load cells utilize strain gauge technology. Strain gauges are small, flexible devices that change their electrical resistance when subjected to force. Here's a step-by-step breakdown of how a strain gauge load cell functions:
1. Force Application: When a load is suspended from the crane, it exerts force on the load cell.
2. Material Deformation: The load cell's body, usually made of high-strength metal, deforms slightly under this force.
3. Strain Gauge Reaction: The strain gauges bonded to the load cell's body stretch or compress along with the material.
4. Resistance Change: As the strain gauges deform, their electrical resistance changes.
5. Bridge Circuit: The strain gauges are typically arranged in a Wheatstone bridge circuit, which amplifies the small changes in resistance.
6. Electrical Output: The change in the bridge circuit produces a voltage output proportional to the applied force.
7. Signal Processing: This voltage is then amplified and processed by the crane's electronics to display the weight or trigger safety mechanisms.
There are several types of load cells commonly used in crane applications, each with its own advantages and specific use cases.

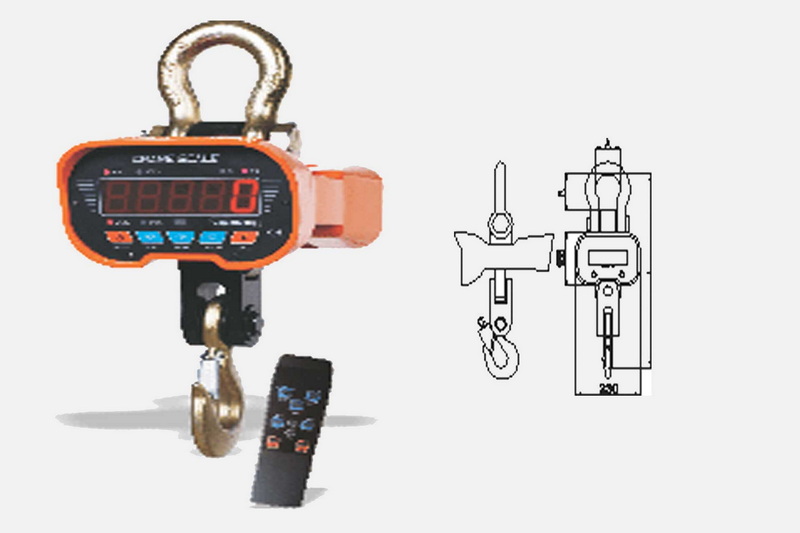

Tension load cells are perhaps the most common type used in crane systems. They are designed to measure tensile or "pulling" forces, making them ideal for overhead cranes and hoists.

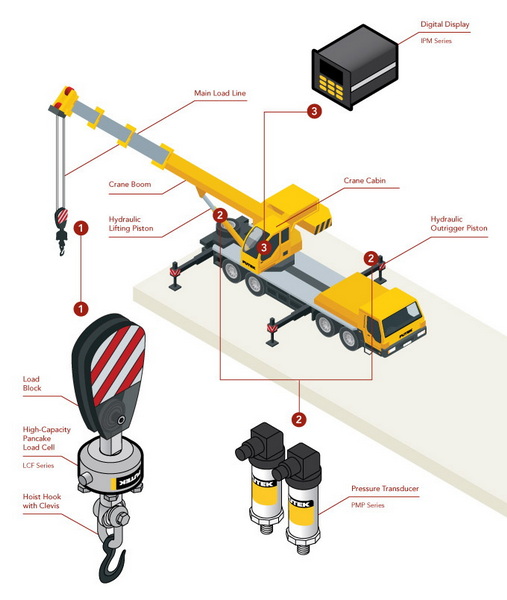

While less common in crane applications, compression load cells can be used in certain scenarios, such as measuring the force on crane outriggers or in specialized lifting arrangements.
S-type or S-beam load cells are versatile and can measure both tension and compression forces. Their unique shape allows for easy integration into various crane designs.

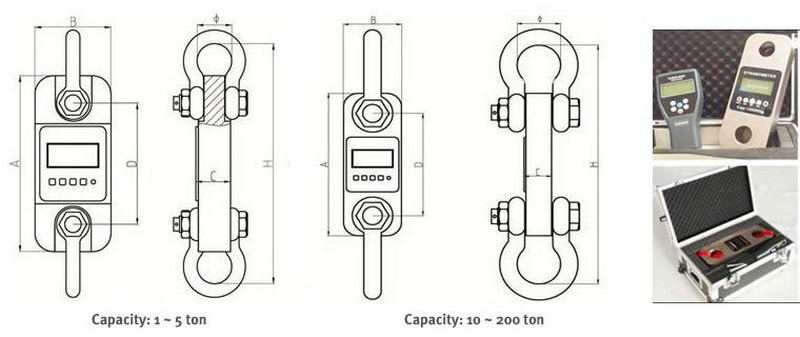

Shackle load cells combine a traditional shackle design with integrated load sensing technology. They are particularly useful in marine and industrial lifting applications.
Clamp-on load cells offer a non-invasive way to measure loads on existing wire ropes without the need for significant modifications to the crane structure.
Crane load cells find applications across a wide range of industries and scenarios. Here are some of the most common uses:
In construction sites and heavy industrial settings, crane load cells are crucial for:
- Ensuring safe lifting of materials and equipment
- Preventing overloading of cranes and structures
- Monitoring and recording weights for project management and billing purposes
Ports and logistics centers rely on crane load cells for:
- Accurate weighing of shipping containers
- Load distribution in cargo ships
- Inventory management and customs compliance
In manufacturing facilities, crane load cells assist with:
- Quality control through precise weight measurement
- Process automation in production lines
- Material handling and inventory tracking
The entertainment industry uses crane load cells for:
- Safe rigging of lighting and sound equipment
- Stage design and management
- Special effects and performer safety in aerial acts
Scientific and engineering fields employ crane load cells for:
- Material testing and stress analysis
- Structural engineering experiments
- Aerospace and automotive component testing

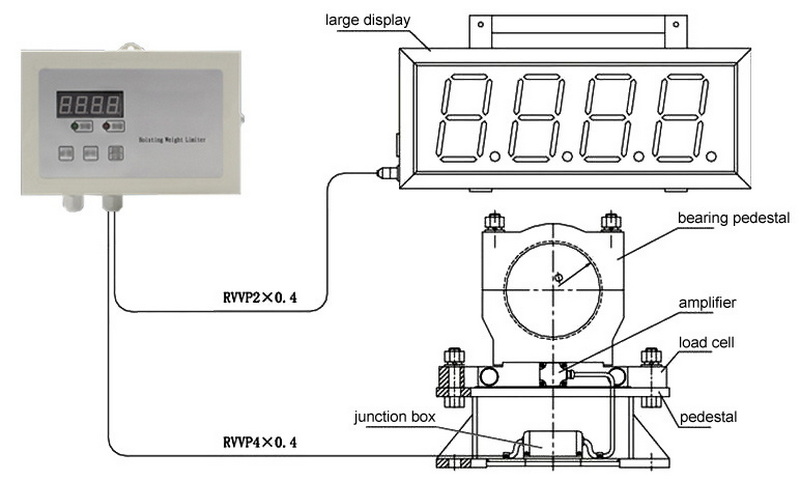

Proper installation of crane load cells is critical for accurate measurements and safe operation. The installation process typically involves the following steps:
1. Assessment: Evaluate the crane's structure and determine the best location for load cell integration.
2. Selection: Choose the appropriate type and capacity of load cell for the specific application.
3. Preparation: Ensure the installation area is clean and free from obstructions.
4. Mounting: Securely attach the load cell to the crane structure, often using specialized brackets or fittings.
5. Wiring: Connect the load cell to the crane's electrical system and display unit.
6. Calibration: Perform initial calibration using known weights to ensure accuracy.
7. Testing: Conduct thorough testing under various load conditions to verify proper operation.
- Environmental Protection: Ensure the load cell and associated electronics are adequately protected from dust, moisture, and extreme temperatures.
- Cable Management: Properly route and secure cables to prevent damage during crane operation.
- Accessibility: Install load cells in locations that allow for easy maintenance and recalibration.
- Safety Interlocks: Integrate the load cell system with the crane's safety mechanisms to prevent overloading.
When selecting a crane load cell, it's important to consider the advantages and limitations of different technologies. Here's a comparison of some common types:
Advantages:
- High accuracy and reliability
- Wide range of capacities available
- Relatively low costLimitations:
- Sensitive to temperature changes
- Require proper sealing against moisture
Advantages:
- Extremely durable and suitable for harsh environments
- No electrical components at the load pointLimitations:
- Generally less precise than strain gauge cells
- Can be affected by temperature changes
Advantages:
- Intrinsically safe for hazardous environments
- Not affected by temperature variationsLimitations:
- Lower accuracy compared to other types
- Slower response time
Advantages:
- Immune to electromagnetic interference
- Excellent for long-distance signal transmissionLimitations:
- Higher cost
- More complex installation and maintenance
Regular calibration and maintenance are essential for ensuring the continued accuracy and reliability of crane load cells. Here are some key points to consider:
- Perform initial calibration upon installation
- Recalibrate annually or as required by local regulations
- Calibrate after any significant repairs or modifications to the crane
1. Zero Adjustment: Ensure the load cell reads zero with no load applied
2. Span Adjustment: Apply known weights and adjust the system to display the correct values
3. Linearity Check: Verify accuracy across the full range of the load cell
4. Documentation: Keep detailed records of all calibration procedures and results
- Regularly inspect load cells and associated hardware for signs of wear or damage
- Keep load cells clean and free from debris
- Check and tighten electrical connections periodically
- Monitor for any signs of drift or inconsistency in readings
- Replace load cells that show signs of significant wear or damage
As technology continues to advance, crane load cells are evolving to meet new challenges and opportunities. Some emerging trends include:
- Wireless Load Cells: Eliminating the need for complex wiring and enabling easier data collection
- Smart Load Cells: Incorporating advanced diagnostics and predictive maintenance capabilities
- Integration with IoT: Connecting load cells to broader industrial Internet of Things (IoT) networks for improved data analysis and decision-making
- Enhanced Safety Features: Developing load cells with built-in overload protection and real-time monitoring capabilities
Crane load cells play a crucial role in ensuring the safety, efficiency, and accuracy of lifting operations across numerous industries. By understanding how these devices work, the various types available, and best practices for their installation and maintenance, operators and engineers can make informed decisions to optimize their crane systems. As technology continues to advance, we can expect crane load cells to become even more sophisticated, further enhancing the capabilities and safety of crane operations worldwide.
A1: Modern crane load cells can be extremely accurate, with many models offering accuracy within 0.1% to 0.25% of the full-scale capacity. However, the actual accuracy in real-world conditions can be affected by factors such as temperature, installation quality, and regular calibration.
A2: Yes, there are specialized underwater load cells designed for marine and offshore applications. These load cells are sealed and protected against water ingress, often with IP68 or higher ratings, allowing them to function reliably in submerged conditions.
A3: The lifespan of a crane load cell can vary depending on usage conditions and maintenance. With proper care and regular calibration, a high-quality load cell can last 5-10 years or more. However, harsh environments or frequent overloading can significantly reduce this lifespan.
A4: Yes, wireless crane load cells are becoming increasingly popular. These systems transmit data via radio frequency or Bluetooth to a receiver, eliminating the need for long cable runs and simplifying installation and maintenance.
A5: Temperature fluctuations can affect load cell accuracy by causing thermal expansion or contraction of the load cell material. High-quality load cells are designed with temperature compensation features to minimize these effects. Additionally, some advanced systems include temperature sensors and software that can adjust readings based on current conditions.
