Load cell amplifiers play a crucial role in the world of force measurement and weighing systems. These devices are essential components that work in tandem with load cells to provide accurate and reliable measurements in various industrial and commercial applications. In this comprehensive guide, we'll explore the functionality, types, applications, installation, and troubleshooting of load cell amplifiers, providing you with a deep understanding of these important devices.
A load cell amplifier, also known as a signal conditioner, is a device designed to capture, process, and amplify the low-level electrical signals produced by load cells. Load cells are sensors that convert mechanical force into electrical signals, typically in the range of a few millivolts. However, these signals are too weak to be directly used by most measurement and control systems. This is where load cell amplifiers come into play.
The primary function of a load cell amplifier is to boost the weak signal from the load cell to a more usable level. It converts the millivolt-level output from the load cell into a stronger, standardized signal that can be easily read and processed by data acquisition systems, PLCs (Programmable Logic Controllers), or other control devices.
To understand how a load cell amplifier works, let's break down its functionality into several key steps:
1. Signal Reception: The amplifier receives the weak electrical signal from the load cell, typically in the range of a few millivolts per volt (mV/V).
2. Amplification: The received signal is then amplified to a higher voltage level, usually to a range of 0-10V or 4-20mA, which are standard industrial signal ranges.
3. Filtering: The amplifier often includes filters to remove noise and unwanted frequencies from the signal, improving measurement accuracy.
4. Calibration: Many load cell amplifiers include calibration features to adjust the output signal to match specific load cell characteristics and measurement requirements.
5. Signal Conversion: Some advanced amplifiers can convert the analog signal to a digital format, making it easier to interface with modern control systems and data loggers.
6. Output: The amplified and conditioned signal is then output to the connected measurement or control system.

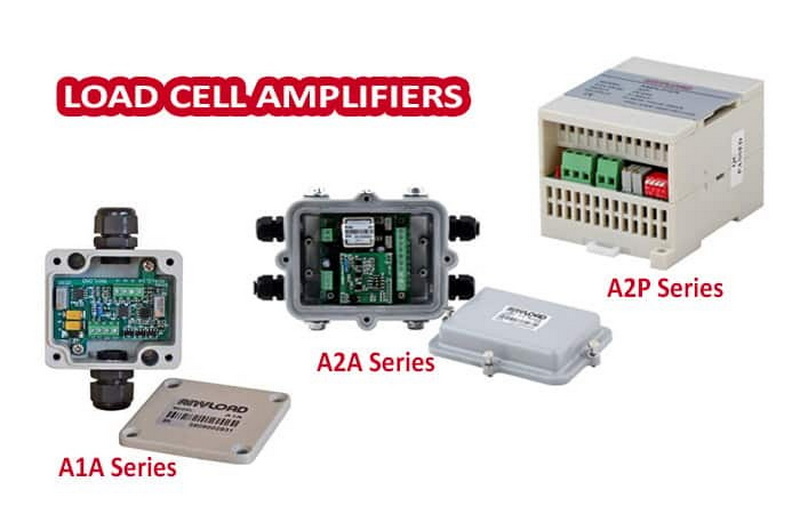

Load cell amplifiers come in various types, each designed to meet specific application requirements. Here are some common types:
1. Analog Load Cell Amplifiers: These traditional amplifiers output an analog signal, typically 0-10V or 4-20mA. They are simple to use and widely compatible with many systems.
2. Digital Load Cell Amplifiers: These more advanced amplifiers convert the analog signal to digital format, offering benefits such as improved noise immunity and easier integration with digital systems.
3. Strain Gauge Amplifiers: While not exclusive to load cells, these amplifiers are designed to work with strain gauge-based sensors, including load cells.
4. Instrumentation Amplifiers: These precision amplifiers are often used in load cell applications due to their high accuracy and low noise characteristics.
5. Programmable Amplifiers: These versatile amplifiers allow users to adjust various parameters such as gain, filtering, and calibration through software or onboard controls.
Load cell amplifiers find use in a wide range of industries and applications where precise force or weight measurement is critical. Some common applications include:
1. Industrial Weighing: In manufacturing and production environments for inventory control, batching, and quality assurance.
2. Material Testing: For precise force measurement in materials science and engineering research.
3. Aerospace and Automotive: In testing and quality control processes for components and assemblies.
4. Medical Equipment: In devices like hospital beds, patient lifts, and rehabilitation equipment for accurate patient weight monitoring.
5. Agriculture: In grain silos, livestock scales, and other farming applications for yield management and animal health monitoring.
6. Robotics: For force feedback in robotic arms and grippers, enabling precise control and safety features.
7. Construction: In structural testing and monitoring of buildings and bridges.
8. Transportation: In vehicle weighing systems for trucks, trains, and aircraft.
9. Food and Beverage: In production lines for precise ingredient measurement and portion control.
10. Renewable Energy: In wind turbines for monitoring blade stress and optimizing performance.
Proper installation of a load cell amplifier is crucial for accurate and reliable measurements. Here are some key steps and considerations for installation:

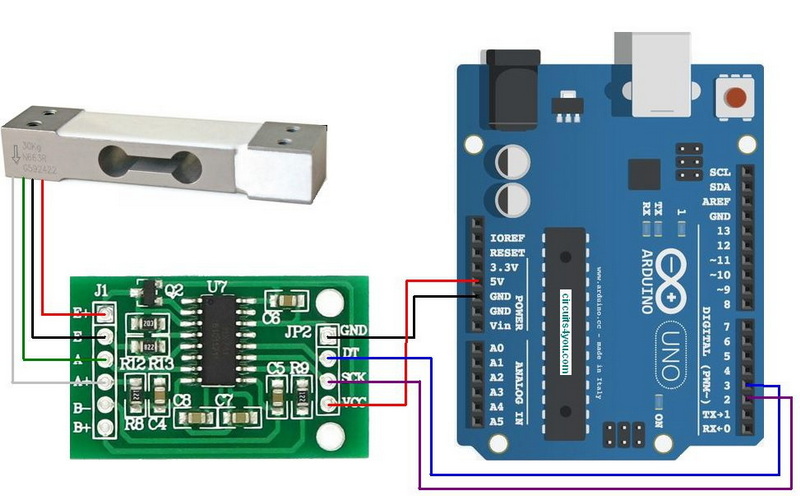

1. Wiring: Ensure correct wiring between the load cell and the amplifier. Most load cells use a four-wire or six-wire configuration. Follow the color coding provided by the manufacturer.
2. Power Supply: Connect the amplifier to an appropriate power supply. Many amplifiers require a 24V DC supply, but always check the specifications.
3. Grounding: Proper grounding is essential to minimize electrical noise. Follow the manufacturer's recommendations for grounding procedures.
4. Signal Output: Connect the amplifier's output to your measurement or control system, ensuring compatibility of signal types (e.g., voltage or current output).
5. Environmental Protection: If the amplifier will be exposed to harsh conditions, consider using an appropriate enclosure to protect it from dust, moisture, or extreme temperatures.
6. Calibration: After installation, calibrate the system using known weights or forces to ensure accuracy across the measurement range.
Calibration is a critical step in setting up a load cell amplifier system. It ensures that the output signal accurately represents the applied force or weight. The calibration process typically involves the following steps:
1. Zero Adjustment: With no load applied, adjust the amplifier's zero setting to produce the appropriate output (e.g., 4mA for a 4-20mA system).
2. Span Adjustment: Apply a known weight or force (ideally near the full scale of the system) and adjust the span or gain to produce the correct output at this point.
3. Linearity Check: Test the system at multiple points across its range to ensure linear response. Some advanced amplifiers offer multi-point calibration for improved accuracy.
4. Temperature Compensation: If the system will operate across a wide temperature range, consider calibrating at different temperatures or using an amplifier with built-in temperature compensation.
5. Periodic Recalibration: Establish a regular calibration schedule to maintain accuracy over time, as load cells and amplifiers can drift due to various factors.
Even with proper installation and calibration, issues can arise with load cell amplifier systems. Here are some common problems and troubleshooting steps:
1. No Output Signal:
- Check power supply to the amplifier and load cell
- Verify wiring connections
- Inspect load cell for damage
2. Unstable or Noisy Output:
- Check for loose connections
- Verify proper grounding
- Look for sources of electromagnetic interference
- Consider using shielded cables
3. Non-Linear Output:
- Recalibrate the system
- Check for mechanical issues with the load cell mounting
- Verify that the load is being applied correctly
4. Temperature Drift:
- Use an amplifier with temperature compensation
- Ensure the system is not exposed to rapid temperature changes
- Consider environmental controls for the installation area
5. Overload or Damage:
- Inspect the load cell for physical damage
- Verify that the system has not been subjected to loads beyond its rated capacity
- Consider installing overload protection devices
6. Moisture-Related Issues:
- Check for water ingress in connections and enclosures
- Use appropriate sealing and protection methods for wet environments
- Consider using hermetically sealed load cells and waterproof amplifiers
As technology advances, load cell amplifiers are becoming more sophisticated, offering features that enhance their functionality and ease of use:
1. Digital Interfaces: Many modern amplifiers offer USB, RS-232, or Ethernet connectivity for easy integration with computers and networks.
2. Wireless Capabilities: Some amplifiers now include wireless transmission options, allowing for remote monitoring and data collection.
3. Built-in Data Logging: Advanced models may include onboard memory for storing measurement data, useful for applications where continuous monitoring is required.
4. Multi-Channel Support: Some amplifiers can handle inputs from multiple load cells simultaneously, useful for large-scale weighing systems.
5. Programmable Filters: Digital amplifiers often allow users to configure various digital filters to optimize signal quality for specific applications.
6. Auto-Calibration: Some advanced systems include auto-calibration features that can significantly reduce setup time and improve accuracy.
7. Diagnostic Features: Modern amplifiers may include self-diagnostic capabilities to detect issues like sensor failure or wiring problems.
Load cell amplifiers are indispensable components in the world of force and weight measurement. By understanding their functionality, types, applications, and proper installation and maintenance procedures, you can ensure accurate and reliable measurements in your specific application. As technology continues to advance, we can expect load cell amplifiers to become even more sophisticated, offering improved accuracy, easier integration, and enhanced features to meet the evolving needs of various industries.
A: A load cell is a sensor that converts mechanical force into an electrical signal, while a load cell amplifier is a device that boosts and conditions this weak electrical signal from the load cell into a stronger, more usable form for measurement and control systems.
A: The frequency of calibration depends on various factors such as the application, environmental conditions, and regulatory requirements. Generally, it's recommended to calibrate at least annually, but some critical applications may require more frequent calibration. Always follow manufacturer recommendations and industry standards for your specific use case.
A: While many amplifiers are designed to work with a wide range of load cells, it's important to ensure compatibility. Factors to consider include the load cell's output range, excitation voltage requirements, and the amplifier's input specifications. Always consult the documentation for both the load cell and amplifier to ensure proper matching.
A: Digital load cell amplifiers offer several advantages, including better noise immunity, easier integration with digital systems, more advanced filtering options, and often include features like auto-calibration and built-in diagnostics. However, analog amplifiers are still widely used due to their simplicity and compatibility with existing systems.
A: To minimize noise, ensure proper grounding, use shielded cables, keep signal cables away from power cables, consider using differential signaling, employ appropriate filtering techniques, and protect the system from electromagnetic interference sources. In some cases, using a digital amplifier can also help reduce noise issues.
