Strain gauge load cells are fundamental components in modern force measurement systems, playing a crucial role in various industries ranging from manufacturing and aerospace to healthcare and transportation. These devices have revolutionized the way we quantify and analyze forces, providing accurate and reliable data for countless applications. In this comprehensive guide, we'll delve into the intricate workings of strain gauge load cells, exploring their principles, applications, and the latest advancements in the field.

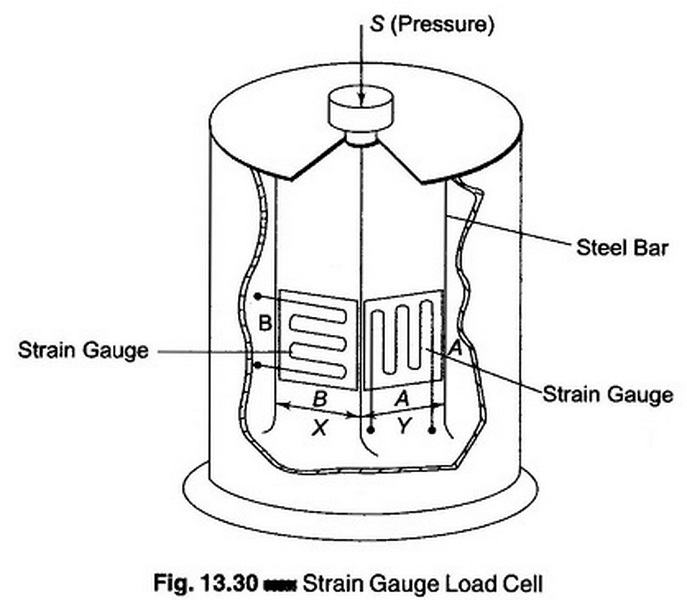

At the heart of every strain gauge load cell lies a simple yet ingenious concept: the ability to convert mechanical force into an electrical signal. This conversion is made possible through the use of strain gauges, which are sensitive electrical conductors designed to change their resistance when subjected to mechanical stress.
The fundamental principle behind strain gauge load cells is based on the relationship between mechanical strain and electrical resistance. When a force is applied to the load cell, it causes a minute deformation in the material. This deformation is then detected by the strain gauges, which are strategically placed on the load cell's surface.
Strain gauges are typically made of a thin metallic foil or semiconductor material that is carefully bonded to the load cell's surface. As the load cell deforms under applied force, the strain gauge experiences the same deformation, causing a change in its electrical resistance. This change in resistance is proportional to the applied force, allowing for precise measurement and quantification.The relationship between strain and resistance change is described by the gauge factor (GF), which is a measure of the strain gauge's sensitivity. The gauge factor is defined as the ratio of fractional change in electrical resistance to the fractional change in length (strain):GF = (ΔR/R) / (ΔL/L)Where:
- ΔR is the change in resistance
- R is the initial resistance
- ΔL is the change in length
- L is the initial length

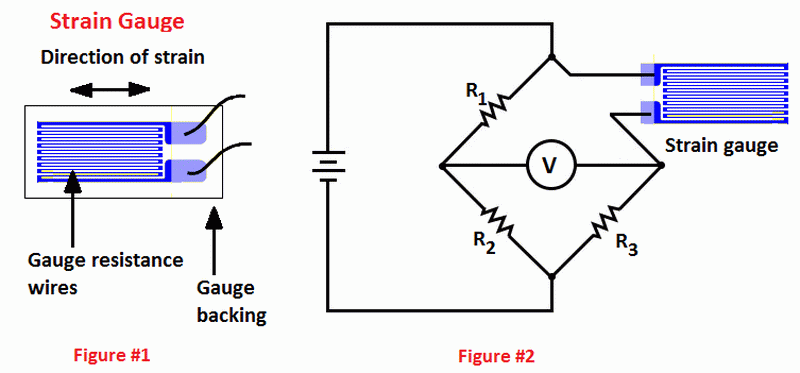

To accurately measure the small changes in resistance produced by strain gauges, load cells typically employ a Wheatstone bridge circuit. This configuration consists of four resistive arms, with one or more arms containing active strain gauges. The Wheatstone bridge allows for the precise measurement of small resistance changes by comparing the voltage difference across the bridge when it is balanced and unbalanced.

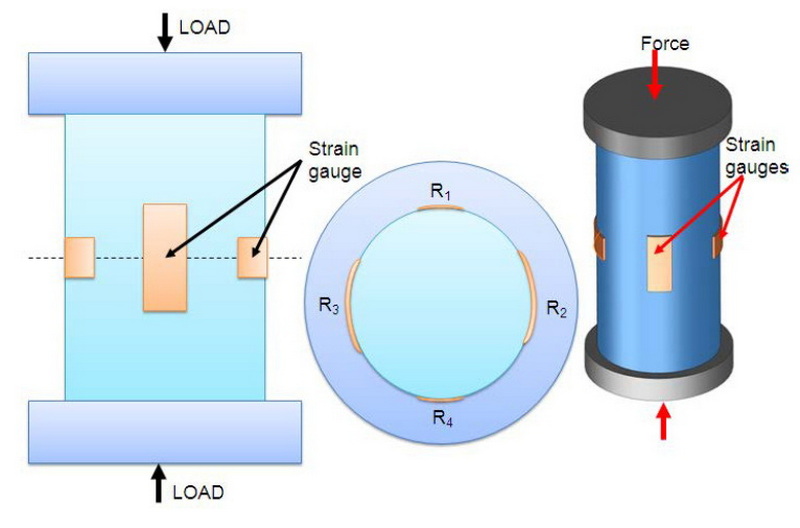

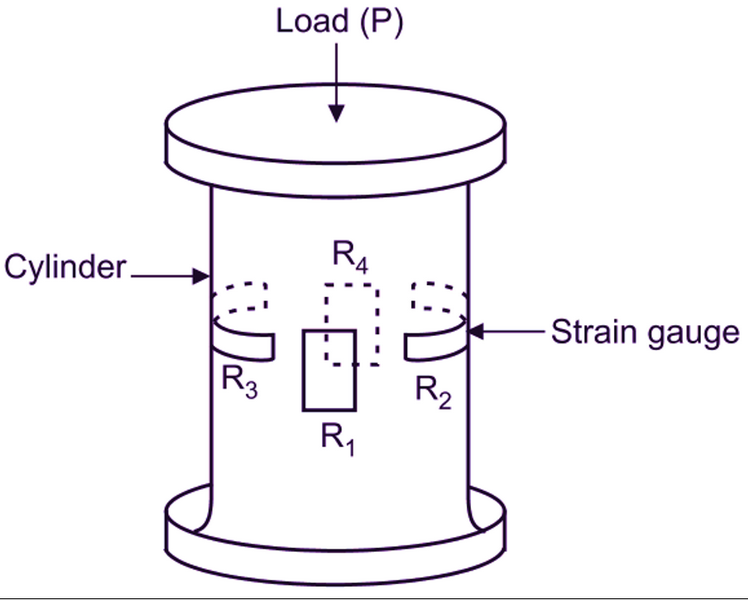

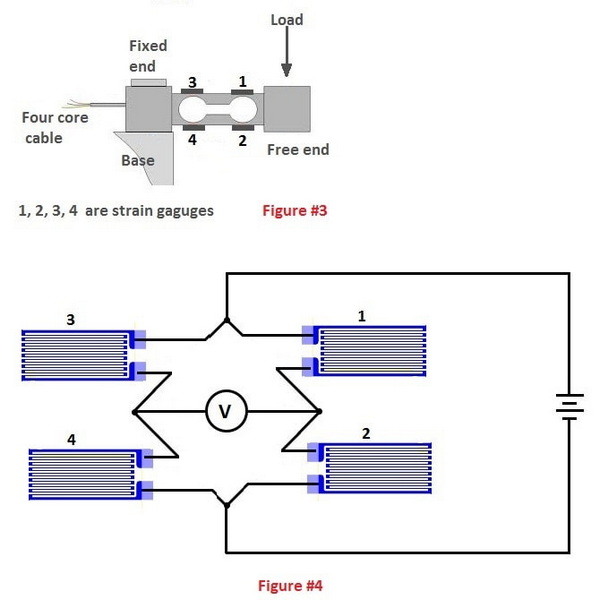

In a typical strain gauge load cell, multiple strain gauges are used to increase sensitivity and compensate for temperature effects. The most common configuration is the full-bridge arrangement, where all four arms of the Wheatstone bridge contain active strain gauges. This setup provides maximum sensitivity and temperature compensation.
The primary function of a strain gauge load cell is to accurately measure and quantify applied forces. This process involves several key steps:
1. Force Application: An external force is applied to the load cell, causing it to deform slightly.
2. Strain Detection: The strain gauges bonded to the load cell detect this deformation and change their electrical resistance accordingly.
3. Bridge Imbalance: The change in resistance causes an imbalance in the Wheatstone bridge circuit.
4. Voltage Output: This imbalance produces a small voltage output proportional to the applied force.
5. Signal Conditioning: The voltage output is amplified and filtered to produce a clean, usable signal.
6. Calibration: The signal is then calibrated to convert the electrical output into meaningful force units (e.g., Newtons, pounds).
The sensitivity of a strain gauge load cell is a critical factor in its performance. It determines the smallest change in force that the load cell can detect and measure accurately. Sensitivity is influenced by several factors, including:
1. Gauge Factor: A higher gauge factor results in greater sensitivity to strain.
2. Number of Gauges: Using multiple strain gauges in a full-bridge configuration increases overall sensitivity.
3. Material Properties: The elastic properties of the load cell material affect its deformation characteristics and, consequently, the strain gauge's response.
4. Amplification: Proper signal amplification can enhance the load cell's ability to detect small force changes.
Strain gauge load cells find applications in a wide range of industries and scenarios, thanks to their versatility, accuracy, and reliability. Some common applications include:
1. Industrial Weighing: Load cells are used in scales and balances for precise weight measurement in manufacturing, logistics, and quality control.
2. Aerospace and Automotive Testing: Force measurement in structural testing, crash tests, and performance evaluation of components.
3. Material Testing: Load cells are essential in tensile, compression, and fatigue testing of materials.
4. Medical Devices: Force sensing in prosthetics, rehabilitation equipment, and patient monitoring systems.
5. Agriculture: Weighing of livestock, crops, and monitoring of silos and storage tanks.
6. Robotics and Automation: Force feedback in robotic arms and automated assembly lines.
7. Civil Engineering: Structural health monitoring of bridges, buildings, and other infrastructure.
8. Sports Science: Force measurement in athletic performance analysis and equipment testing.
There are several types of strain gauge load cells, each designed for specific applications and force ranges:
1. S-Beam Load Cells: Shaped like an S, these versatile load cells can measure both tension and compression forces.
2. Single Point Load Cells: Ideal for small platform scales and retail applications.
3. Canister Load Cells: Designed for high-capacity weighing in harsh environments.
4. Button Load Cells: Compact and suitable for limited space applications.
5. Beam Load Cells: Used in truck scales, tank weighing, and other large-scale applications.
6. Pancake Load Cells: Low-profile design for applications with height restrictions.
7. Tension/Compression Load Cells: Capable of measuring bidirectional forces.
Accurate calibration is crucial for ensuring the reliability and precision of strain gauge load cells. The calibration process involves establishing a relationship between the load cell's electrical output and known reference forces. Common calibration techniques include:
1. Dead Weight Calibration: Using precisely known masses to apply force to the load cell.
2. Hydraulic or Pneumatic Calibration: Applying controlled pressure to generate calibration forces.
3. Reference Load Cell Method: Comparing the output of the load cell under calibration with a highly accurate reference load cell.
4. Shunt Calibration: Simulating a load by introducing a known resistance across one arm of the Wheatstone bridge.
5. Calibration Chains: A series of calibration steps using multiple reference standards to achieve high accuracy across a wide range.
The accuracy and precision of strain gauge load cells are critical factors in their performance and suitability for various applications. Accuracy refers to how close the measured value is to the true value, while precision relates to the repeatability of measurements.Several factors influence load cell accuracy and precision:
1. Linearity: The consistency of the load cell's output across its entire measurement range.
2. Hysteresis: The difference in output when approaching a force value from increasing versus decreasing loads.
3. Creep: The change in output over time under constant load.
4. Temperature Effects: Variations in output due to changes in ambient temperature.
5. Eccentric Loading: Errors caused by off-center force application.
6. Noise and Interference: Electrical noise and environmental factors affecting signal quality.
To maximize accuracy and precision, load cells often incorporate compensation techniques such as temperature compensation, multiple strain gauge arrangements, and advanced signal processing algorithms.
The choice of materials for both the strain gauges and the load cell body significantly impacts performance. Common strain gauge materials include:
1. Metal Foil: Typically made of constantan, karma, or platinum alloys, offering good stability and temperature compensation.
2. Semiconductor: Silicon-based gauges provide high sensitivity but are more temperature-sensitive.
3. Thin Film: Deposited directly onto the load cell surface, offering excellent bonding and stability.
The load cell body is usually made of materials with consistent elastic properties, such as:
1. Aluminum: Lightweight and suitable for low to medium capacity load cells.
2. Steel: Offers high strength and durability for higher capacity applications.
3. Stainless Steel: Provides corrosion resistance for use in harsh environments.
4. Special Alloys: Tailored for specific applications requiring unique properties.
The field of strain gauge load cells continues to evolve, with ongoing research and development leading to numerous advancements:
1. Digital Load Cells: Incorporating on-board analog-to-digital conversion and signal processing for improved accuracy and noise immunity.
2. Wireless Load Cells: Enabling remote monitoring and data collection without the need for physical connections.
3. MEMS-based Load Cells: Micro-electromechanical systems (MEMS) technology allows for miniaturization and integration of load cells into compact devices.
4. Fiber Optic Load Cells: Using optical fibers instead of electrical strain gauges for applications requiring high EMI immunity or use in hazardous environments.
5. Smart Load Cells: Incorporating advanced features such as self-diagnostics, automatic calibration, and data logging.
6. Nanotechnology: Exploring the use of nanomaterials and nanostructures to enhance sensitivity and performance.
Strain gauge load cells have revolutionized force measurement across numerous industries, providing accurate, reliable, and versatile solutions for quantifying mechanical forces. As technology continues to advance, we can expect further improvements in sensitivity, accuracy, and integration capabilities, opening up new possibilities for force measurement applications in an increasingly connected and data-driven world.
A1: The accuracy of strain gauge load cells can vary depending on their quality and application. High-quality load cells can achieve accuracies of 0.03% to 0.25% of full scale. However, factors such as temperature, loading conditions, and signal processing can affect overall system accuracy.
A2: With proper use and maintenance, strain gauge load cells can last for many years. The lifespan depends on factors such as the operating environment, loading conditions, and quality of the load cell. In ideal conditions, a well-maintained load cell can operate reliably for 10 years or more.
A3: Yes, strain gauge load cells can measure dynamic forces, but their performance depends on their design and specifications. Some load cells are specifically designed for dynamic force measurement and can handle high-frequency loading. However, for very high-speed dynamic measurements, other technologies like piezoelectric sensors might be more suitable.
A4: Temperature changes can affect strain gauge load cells in several ways, including changes in the gauge factor, thermal expansion of the load cell material, and variations in the bridge circuit resistance. To mitigate these effects, load cells often incorporate temperature compensation techniques, such as using self-temperature-compensated strain gauges or additional temperature sensors for active compensation.
A5: Compression load cells are designed to measure forces that push or compress the load cell, while tension load cells measure forces that pull or stretch the load cell. Some load cells, known as tension/compression load cells, can measure both types of forces. The main differences lie in their physical design and how the strain gauges are arranged to detect the respective forces.
