A force sensor, also known as a force transducer or load cell, is a device that converts mechanical force into an electrical signal. This conversion allows for the measurement and analysis of forces in real-time. Force sensors are widely used in:
- Manufacturing
- Robotics
- Medical devices
- Automotive applications
- Consumer electronics
The fundamental principle behind force sensors is the conversion of mechanical force into an electrical signal. This process can be achieved through various technologies, each with its own unique mechanism.
Strain gauges are one of the most common types of force sensors. They consist of a thin wire or foil arranged in a grid pattern. When force is applied to the sensor, it deforms, causing a change in resistance. This change can be measured and converted into an electrical signal.
Working Principle:
- The strain gauge is bonded to the object being measured.
- As force is applied, the object deforms.
- The deformation causes the strain gauge to stretch or compress.
- This alters the electrical resistance, which can be measured.
Applications:
- Weighing scales
- Load testing in construction
- Pressure measurement in hydraulic systems
Piezoelectric sensors utilize materials that generate an electric charge when mechanically stressed. These sensors are particularly effective for dynamic measurements.
Working Principle:
- When force is applied, the piezoelectric material deforms.
- This deformation generates a voltage proportional to the applied force.
Applications:
- Vibration monitoring
- Impact detection
- Dynamic load measurements
Capacitive force sensors operate based on changes in capacitance between two conductive plates separated by an insulating material.
Working Principle:
- When force is applied, the distance between the plates changes.
- This change alters the capacitance, which can be measured and converted into an electrical signal.
Applications:
- Touchscreens
- Proximity sensing
- Pressure mapping
These sensors use magnetostrictive materials that change their magnetic properties under mechanical stress.
Working Principle:
- A ferromagnetic material experiences a change in magnetic permeability when force is applied.
- This change can be detected by coils or other magnetic sensors, generating an electrical signal proportional to the applied force.
Applications:
- Low-force measurements in biomechanics
- Industrial automation systems
Force sensors come in various types, each suited for specific applications:
- Load Cells: Commonly used for weighing applications; they convert force into an electrical signal using strain gauges.

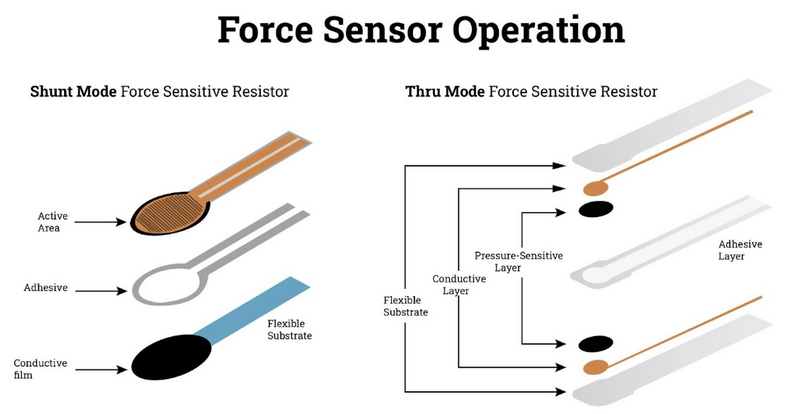

- Force Sensitive Resistors (FSRs): These resistors change their resistance based on applied pressure and are often used in touch-sensitive applications.
Force sensors have a wide range of applications across different industries:
In manufacturing environments, force sensors are used to monitor and control processes such as assembly lines and robotic operations. They ensure that machines apply the correct amount of force during tasks like gripping or lifting objects.
In healthcare, force sensors are utilized in devices such as prosthetics and rehabilitation equipment to provide feedback on pressure and load applied by users.
Smartphones and tablets use capacitive touch sensors to detect user interactions through touch pressure, enhancing user experience and functionality.
Force sensors play a critical role in vehicle safety systems by measuring forces during crash tests and ensuring that airbags deploy correctly.
Force sensors are vital components in modern technology, enabling accurate measurement and control of mechanical forces across various industries. Understanding how they work helps us appreciate their importance in everyday applications, from industrial automation to consumer electronics.
Force sensors can measure various forces including tension, compression, weight, torque, and strain.
The accuracy of a force sensor depends on its design and calibration but many high-quality sensors can achieve accuracies within 0.1% of full scale.
Yes, load cells are specifically designed for weight measurement and are commonly used in scales.
Factors include temperature variations, environmental conditions (like humidity), and mechanical stress beyond specified limits.
Integration typically involves connecting the sensor to a microcontroller or data acquisition system to read the electrical signals produced when force is applied.
