Load cells are essential components in various measurement systems, converting force into measurable electrical signals. Among the different types of load cells, the S beam load cell stands out due to its unique design and versatility. This article delves into the workings of S beamc, their applications, advantages, and future trends in technology.

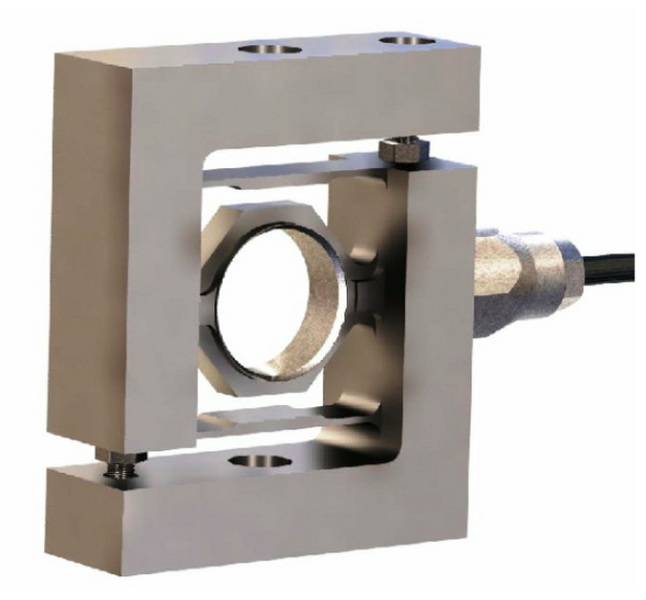

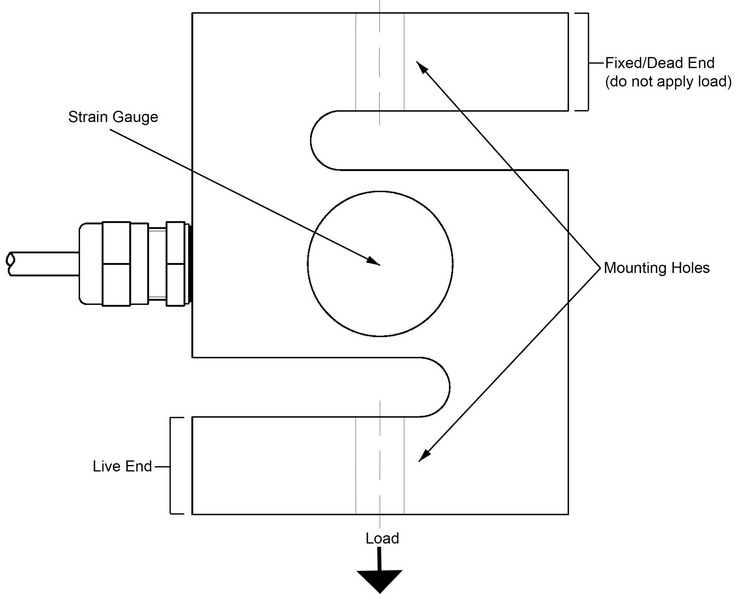

An S beam load cell, also known as an S-shaped load cell, is a type of load cell designed to measure weight or force. Its distinctive S shape allows it to handle both tension and compression, making it a versatile choice for many applications. Unlike other load cells, the S beam design provides a compact solution that can be easily integrated into various systems.

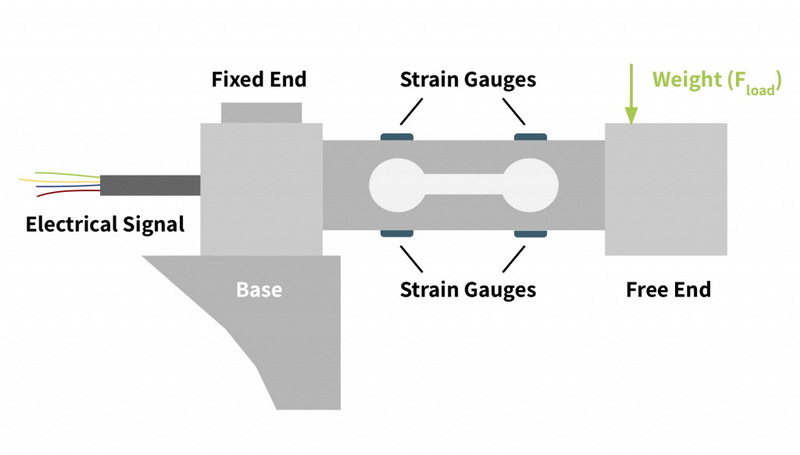

The operation of an S beam load cell is based on the principles of strain gauge technology. When a load is applied to the load cell, the S-shaped beam experiences deformation. This deformation is measured by strain gauges attached to the beam, which convert the mechanical strain into an electrical signal. The electrical signal is then processed to determine the magnitude of the applied force.
The strain gauges are arranged in a Wheatstone bridge configuration, which enhances the sensitivity and accuracy of the measurement. As the load changes, the resistance of the strain gauges varies, allowing for precise measurement of the force applied.
S beam load cells are widely used across various industries due to their reliability and accuracy. Common applications include:
- Weighing Systems: Used in scales for weighing goods in warehouses and retail environments.
- Industrial Machinery: Employed in machines that require precise force measurement for operation.
- Tension Measurement: Ideal for applications where tension needs to be monitored, such as in cranes and hoists.
The S beam load cell offers several advantages:
- High Accuracy: These load cells provide precise measurements, essential for applications requiring exact data.
- Versatility: Capable of measuring both tension and compression, making them suitable for a wide range of applications.
- Compact Design: Their small footprint allows for easy installation in tight spaces.
Proper installation and calibration are crucial for the optimal performance of S beam load cells. Here's a brief guide:
1. Alignment: Ensure the load cell is aligned correctly with the load application point.
2. Mounting: Secure the load cell using appropriate mounting hardware to prevent movement.
3. Calibration: Use known weights to calibrate the load cell, ensuring accurate readings.
Calibration is essential as it adjusts the load cell's output to match the actual load applied, compensating for any discrepancies.
While S beam load cells are highly effective, there are challenges to consider:
- Environmental Factors: Temperature and humidity can affect the performance of load cells.
- Overloading: Exceeding the load cell's capacity can lead to permanent damage.
The future of load cell technology is promising, with advancements in digital technology and materials science. Innovations such as wireless load cells and enhanced data processing capabilities are set to revolutionize how load cells are used in various applications.
S beam load cells play a vital role in modern measurement systems, offering accuracy, versatility, and reliability. Their unique design allows for effective tension and compression measurement, making them indispensable in many industries. As technology continues to evolve, the capabilities and applications of S beam load cells will expand, further enhancing their importance in measurement technology.
Tension load cells measure pulling forces, while compression load cells measure pushing forces. S beam load cells can measure both.
Calibration involves applying known weights to the load cell and adjusting the output to match these weights, ensuring accurate measurements.
They are commonly used in weighing systems, industrial machinery, and tension measurement applications.
S beam load cells typically offer high accuracy, often within 0.05% of the full scale.
Environmental conditions, overloading, and improper installation can all impact the performance and accuracy of load cells.
This comprehensive overview of S beam load cells highlights their significance in various applications and the technology behind their operation. As industries continue to demand precision and reliability, S beam load cells will remain a critical component in measurement systems.
