Tensile testing is a fundamental method used to determine the mechanical properties of materials. It involves applying a controlled force to a material specimen until it deforms or breaks. Load cells play a crucial role in this process by accurately measuring the force applied to the specimen. This article explores the workings of tensile testing, the significance of load cells, and the overall impact on material science.

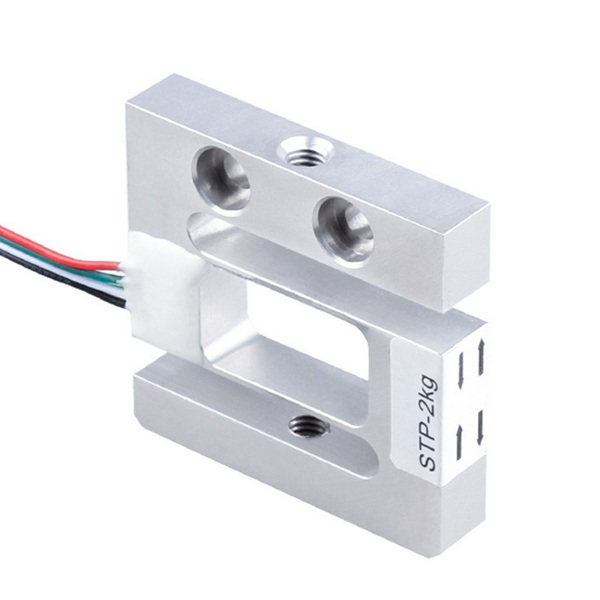

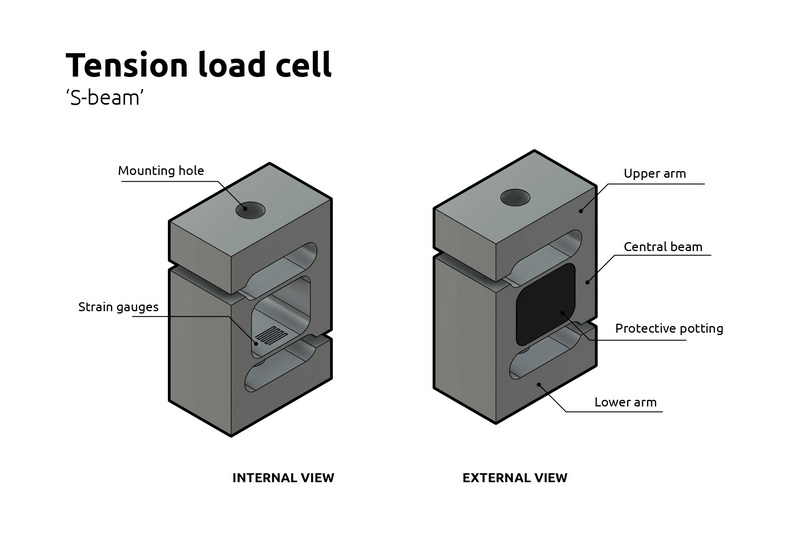

A load cell is a transducer that converts a force into an electrical signal. In tensile testing, load cells measure the force exerted on the material as it is pulled apart. There are various types of load cells, including tension load cells, which are specifically designed for measuring tensile forces. These devices are essential for ensuring accurate and reliable test results.
1. Tension Load Cells: These are designed to measure pulling forces and are often used in applications where materials are subjected to tensile stress.
2. Compression Load Cells: While primarily used for measuring compressive forces, some testing setups may utilize these in conjunction with tension load cells for comprehensive analysis.
The tensile testing process begins with the preparation of a specimen, typically shaped like a dog bone to ensure uniform stress distribution. The specimen is then placed in a tensile testing machine, which consists of two grips that hold the specimen in place. As the machine applies a tensile force, the load cell measures the force exerted on the specimen.
Load cells are integral to the tensile testing process. They provide real-time data on the force applied, allowing for precise calculations of material properties such as tensile strength, yield strength, and elongation. The data collected is then used to generate a stress-strain curve, which is essential for analyzing the material's behavior under stress.

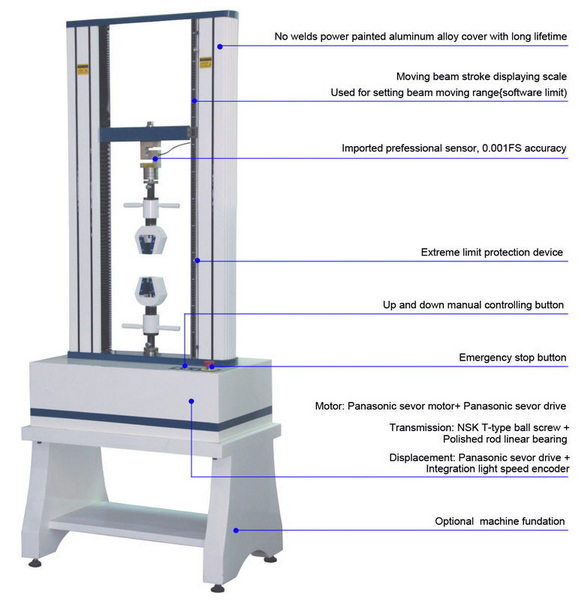

A typical tensile testing machine comprises several key components:
- Load Cell: Measures the force applied to the specimen.
- Extensometer: Measures the elongation of the specimen during the test.
- Grips: Hold the specimen securely in place.
- Crosshead: Moves to apply the tensile force to the specimen.
Each component plays a vital role in ensuring accurate and reliable test results.
The stress-strain curve is a graphical representation of a material's response to applied stress. It illustrates the relationship between stress (force per unit area) and strain (deformation). The curve typically consists of several regions, including:
- Elastic Region: Where the material deforms elastically and returns to its original shape upon unloading.
- Yield Point: The point at which the material begins to deform plastically.
- Ultimate Tensile Strength: The maximum stress the material can withstand before failure.
Understanding the stress-strain curve is crucial for engineers and material scientists as it provides insights into the material's mechanical properties.
Tensile testing is widely used across various industries, including:
- Construction: To test the strength of materials like steel and concrete.
- Aerospace: For evaluating materials used in aircraft and spacecraft.
- Automotive: To ensure the safety and reliability of vehicle components.
- Manufacturing: For quality control of raw materials and finished products.
Common materials tested using tensile testing include metals, plastics, composites, and textiles. Each material exhibits unique properties that can be analyzed through tensile testing.
Load cells offer several advantages in tensile testing:
- Precision and Accuracy: Load cells provide highly accurate measurements, essential for determining material properties.
- Real-Time Data Acquisition: The ability to collect data in real-time allows for immediate analysis and adjustments during testing.
While tensile testing is a valuable tool, it does come with challenges:
- Limitations of Testing: Not all materials can be tested using standard methods, and some may require specialized setups.
- Factors Affecting Test Results: Environmental conditions, specimen preparation, and machine calibration can all influence the outcomes of tensile tests.
Tensile testing is a critical process in material science, providing essential data on the mechanical properties of materials. Load cells are integral to this process, ensuring accurate measurements and reliable results. As technology advances, the methods and equipment used in tensile testing will continue to evolve, enhancing our understanding of material behavior.
Tensile testing can be performed on a wide range of materials, including metals, plastics, composites, and textiles.
Temperature can significantly impact material properties, affecting strength, ductility, and overall performance during tensile testing.
Tension load cells measure pulling forces, while compression load cells measure pushing forces. Both types are used in various applications depending on the testing requirements.
The frequency of tensile testing depends on industry standards, material types, and specific applications. Regular testing is recommended for quality control.
Safety measures include using protective equipment, ensuring proper machine calibration, and following standard operating procedures to prevent accidents during testing.
This comprehensive overview of tensile testing and load cells highlights their importance in material science and engineering, providing valuable insights for professionals in the field.
