Load cells are essential devices used to measure force or weight in various applications, from industrial scales to medical equipment. They convert mechanical force into an electrical signal, allowing for precise measurements. Understanding how load cells are made provides insight into their functionality and reliability in critical applications.
Load cells come in various types, including strain gauge, hydraulic, and pneumatic load cells. The basic working principle involves the deformation of a material under load, which is then converted into an electrical signal. This process is crucial for accurate weight measurement in numerous industries.
The manufacturing of load cells involves several key steps:
1. Materials Used: Load cells are typically made from high-strength materials such as stainless steel or aluminum, which provide durability and resistance to environmental factors.
2. Steps in Manufacturing:

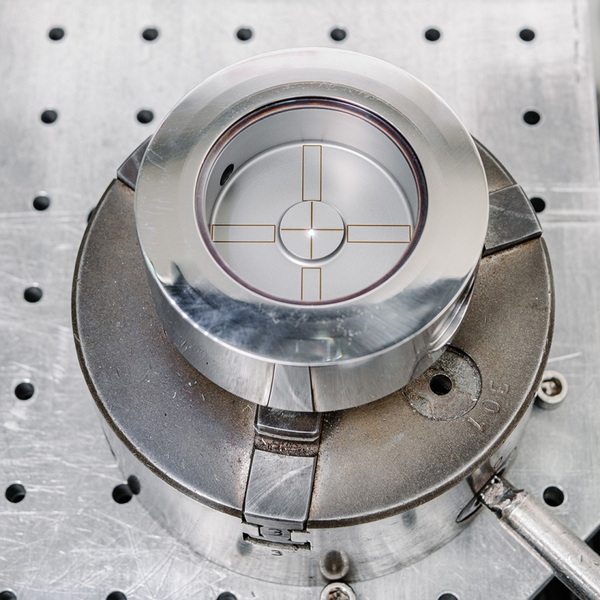

- Forging and Machining: The initial step involves forging the metal into the desired shape, followed by precision machining to create the load cell's components.
- Assembly: After machining, the components are assembled, including the installation of strain gauges and other electronic parts.

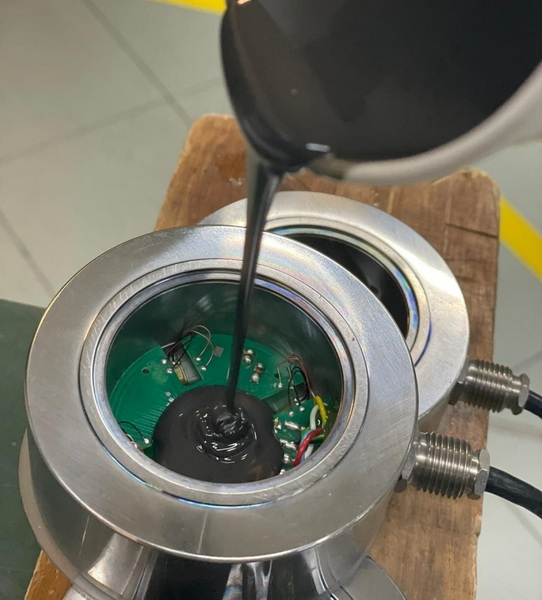

- Sealing: To protect the internal components from moisture and dust, load cells are sealed using various methods, including epoxy resin.
3. Quality Control Measures: Each load cell undergoes rigorous testing to ensure accuracy and reliability. This includes calibration and performance testing in controlled environments.
A load cell consists of several critical components:
- Strain Gauges: These are the heart of the load cell, converting mechanical deformation into an electrical signal.
- Transducers: They amplify the signal from the strain gauges, making it easier to read and process.
- Other Essential Parts: This includes the load cell body, which houses the strain gauges and transducers, and the electrical connections that transmit the signal to measuring devices.
Calibration is vital for ensuring the accuracy of load cells. It involves comparing the load cell's output against known weights and adjusting it to ensure precise measurements. Common methods of calibration include:
- Static Calibration: Involves applying known weights and recording the output.
- Dynamic Calibration: Tests the load cell's response to varying loads.
Load cells are used in a wide range of applications, including:
- Industrial Applications: Used in manufacturing processes, material handling, and quality control.
- Medical Applications: Essential in medical scales and equipment for accurate weight measurement.
- Research and Development: Used in laboratories for experiments requiring precise force measurements.
Manufacturers face several challenges, including:
- Material Stress: Internal stresses can affect the performance of load cells. Advanced manufacturing techniques are employed to minimize these stresses.
- Environmental Factors: Load cells must be designed to operate in various conditions, including extreme temperatures and humidity.
The future of load cell technology looks promising, with innovations such as:
- Smart Load Cells: Incorporating IoT technology for real-time monitoring and data analysis.
- Advanced Materials: Research into new materials that enhance durability and performance.
Load cells play a crucial role in various industries by providing accurate weight measurements. Understanding their manufacturing process, components, and applications highlights their importance in modern technology. As advancements continue, load cells will become even more integral to precision measurement.
Load cells can last for many years, often exceeding a decade, depending on usage and environmental conditions.
Selecting the right load cell involves considering factors such as the required capacity, accuracy, and environmental conditions.
Yes, load cells can be designed to withstand extreme temperatures, humidity, and other challenging conditions.
Common applications include industrial weighing, medical scales, and research measurements.
Load cells are often preferred for their accuracy and reliability compared to other devices like mechanical scales or pressure sensors.
