Load cells are essential components in various measurement systems, converting mechanical force into an electrical signal. They are widely used in industries ranging from manufacturing to healthcare. However, the raw signals produced by load cells are often too weak for direct measurement. This is where load cell amplifiers come into play, enhancing the signal for accurate readings.
A load cell is a transducer that converts force into an electrical signal. The most common type is the strain gauge load cell, which uses the principle of strain gauges to measure deformation. When a load is applied, the strain gauge deforms, changing its electrical resistance. This change is then converted into a voltage signal.
There are several types of load cells, including:
- S-Type Load Cells: Ideal for tension and compression applications.
- Shear Beam Load Cells: Commonly used in platform scales.
- Bending Beam Load Cells: Suitable for low-capacity applications.

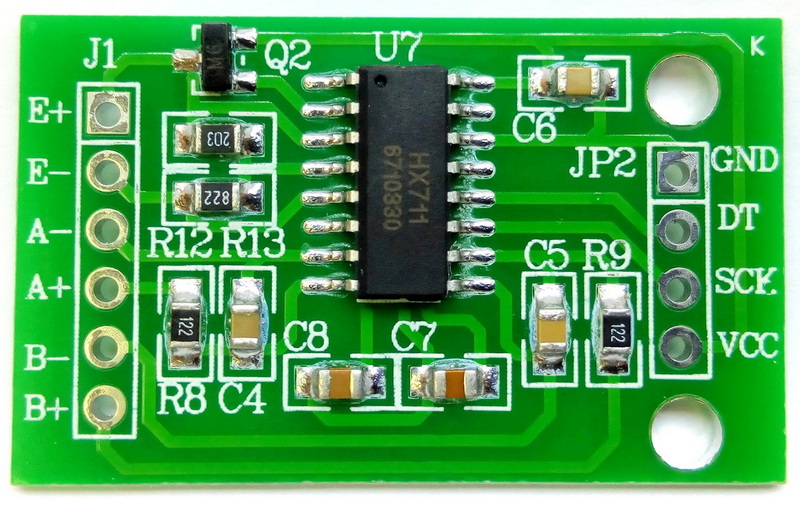

A load cell amplifier, also known as a signal conditioner, is a device that amplifies the small electrical signals generated by load cells. It enhances the signal's strength, making it suitable for further processing or display. Load cell amplifiers can be standalone devices or integrated into signal conditioning modules.
Load cell amplifiers operate by receiving the low-level signal from the load cell and amplifying it to a usable level. The process involves several key components:
- Excitation Voltage: Load cells require a stable excitation voltage to function correctly. The amplifier provides this voltage, ensuring consistent performance.
- Signal Amplification: The amplifier boosts the weak signal from the load cell, increasing its amplitude for accurate measurement.
- Noise Filtering: Load cell amplifiers filter out electrical noise that can distort the signal, ensuring a clean output.
- Analog to Digital Conversion: In some cases, the amplifier converts the analog signal into a digital format for compatibility with digital systems.
The signal conditioning process is crucial for accurate measurements. It involves:
1. Filtering: Removing unwanted noise from the signal.
2. Amplification: Increasing the signal strength.
3. Linearization: Ensuring the output signal is proportional to the input load.
Load cell amplifiers come with several features that enhance their functionality:
- Noise Filtering: This feature is vital for applications in noisy environments, ensuring that the output signal is accurate.
- Analog to Digital Conversion: Many modern amplifiers can convert analog signals to digital, making them compatible with various data acquisition systems.
- Calibration: Load cell amplifiers often include calibration features to ensure accurate readings over time.
Load cell amplifiers are used in a variety of applications, including:
- Industrial Weighing Systems: Used in scales for accurate weight measurement.
- Medical Devices: Employed in devices that require precise force measurements, such as patient monitoring systems.
- Aerospace: Used in testing equipment to measure forces during flight simulations.
- Automated Weighing Systems: Load cell amplifiers are integral in automated systems for packaging and shipping.
- Load Testing: In construction, load cell amplifiers are used to test the strength of materials.
When selecting a load cell amplifier, consider the following factors:
- Signal Range: Ensure the amplifier can handle the expected signal range from the load cell.
- Output Type: Choose between analog and digital outputs based on your system requirements.
- Environmental Conditions: Consider the operating environment, as some amplifiers are designed for harsh conditions.
Common issues with load cell amplifiers include:
- Inconsistent Readings: This can be caused by poor connections or electrical noise.
- Calibration Errors: Regular calibration is necessary to maintain accuracy.
- Signal Loss: Check for damaged cables or connectors that may affect signal transmission.
- Regularly inspect connections and cables for wear.
- Perform routine calibrations to ensure accuracy.
- Use shielded cables in noisy environments to reduce interference.
Load cell amplifiers play a crucial role in enhancing the performance of load cells, ensuring accurate and reliable measurements across various applications. As technology advances, the capabilities of load cell amplifiers continue to improve, paving the way for more precise measurement systems.
A load cell measures force and converts it into an electrical signal, while a load cell amplifier enhances that signal for accurate measurement.
Calibration involves applying known weights to the load cell and adjusting the amplifier settings to ensure the output matches the expected values.
Common types include S-type, shear beam, and bending beam load cells, each suited for different applications.
Yes, but ensure the amplifier is rated for outdoor use and can withstand environmental conditions.
Typically, connect the load cell wires to the amplifier according to the manufacturer's instructions, ensuring proper polarity and connections.
This comprehensive overview provides a detailed understanding of load cell amplifiers, their functionality, applications, and troubleshooting tips, ensuring readers are well-informed about this critical technology.
