Load cells are essential components in various measurement systems, converting mechanical force into electrical signals. They are widely used in industries ranging from manufacturing to healthcare, providing accurate weight measurements and force detection. Understanding how to connect load cells to power supplies is crucial for ensuring their proper functionality and accuracy.
A load cell is a type of transducer that measures weight or force. The most common type of load cell utilizes strain gauge technology, where the deformation of a material under load generates a change in electrical resistance. This change is then converted into a measurable electrical signal. Load cells come in various types, including compression, tension, and shear beam load cells, each suited for specific applications.
Load cells require a specific voltage and current to operate effectively. Typically, they operate on a low voltage, often between 5V to 15V, depending on the design. It is essential to ensure that the power supply matches the load cell's specifications to avoid damage and ensure accurate readings.
Connecting a load cell to a power supply involves understanding its wiring configuration. Most load cells have either a 4-wire or 6-wire setup.

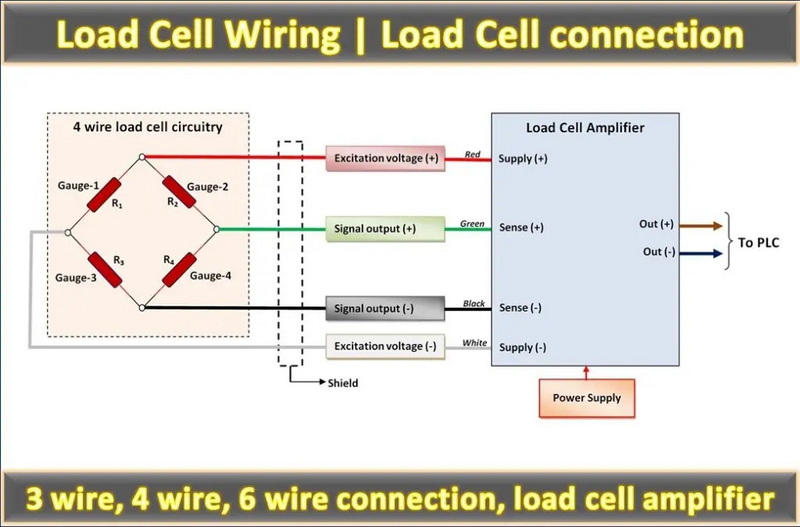

- 4-Wire Load Cell: This configuration includes two wires for the excitation voltage (power supply) and two for the signal output. The red and black wires are typically used for power, while the green and white wires are for the signal output. Properly connecting these wires is crucial for accurate measurements.
- 6-Wire Load Cell: This setup includes additional sense wires that help compensate for any voltage drop in the excitation wires, improving accuracy. The wiring is similar, but with the added complexity of the sense wires.

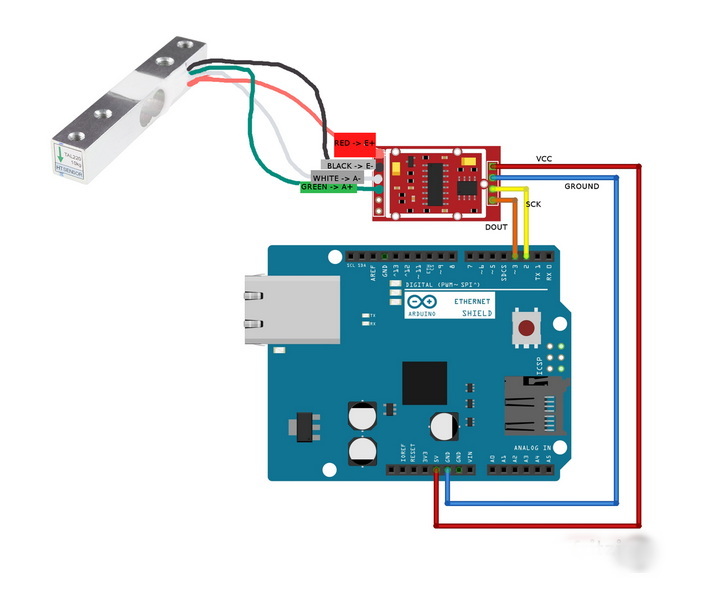

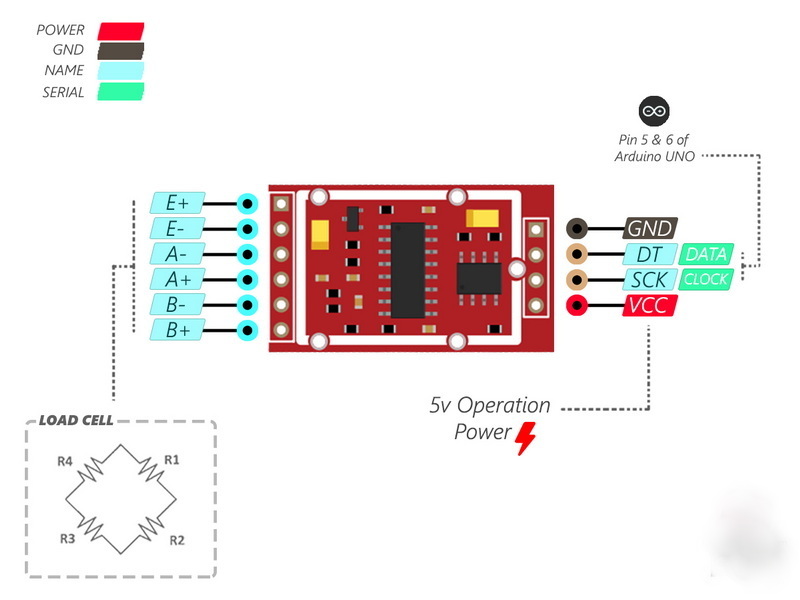

Load cell amplifiers are used to enhance the signal output from the load cell, making it easier to read and process. These amplifiers are connected between the load cell and the data acquisition system or display. Proper connection of the amplifier is essential for accurate signal processing.
Calibration is a critical step after installing a load cell. It ensures that the measurements taken are accurate and reliable. Calibration involves applying known weights to the load cell and adjusting the output signal accordingly. This process should be performed regularly to maintain accuracy.
Load cells can encounter various issues, such as erratic readings or failure to respond. Common problems include poor electrical connections, incorrect wiring, or environmental factors affecting performance. Troubleshooting involves checking connections, verifying power supply voltage, and ensuring that the load cell is not overloaded.
Load cells are used in numerous applications, including:
- Weighing scales in retail and industrial settings.
- Force measurement in testing laboratories.
- Load monitoring in construction and transportation.
These applications highlight the versatility and importance of load cells in modern technology.
Understanding how to connect load cells to power supplies is vital for their effective operation. Proper wiring, calibration, and troubleshooting are essential for ensuring accurate measurements. As technology advances, load cells will continue to play a crucial role in various industries, making their proper installation and maintenance more important than ever.
- A 4-wire load cell has two wires for power and two for signal output, while a 6-wire load cell includes additional sense wires for improved accuracy.
- You can test a load cell using a multimeter to check for continuity and proper resistance values.
- Most load cells operate on a voltage between 5V to 15V, depending on the specific model.
- Yes, but they must be properly sealed and protected from environmental factors such as moisture and dust.
- Load cells should be calibrated regularly, typically every six months to a year, or whenever they are moved or subjected to significant changes in load.
This comprehensive guide provides a detailed understanding of how load cells are connected to power supplies, ensuring accurate and reliable measurements in various applications.
